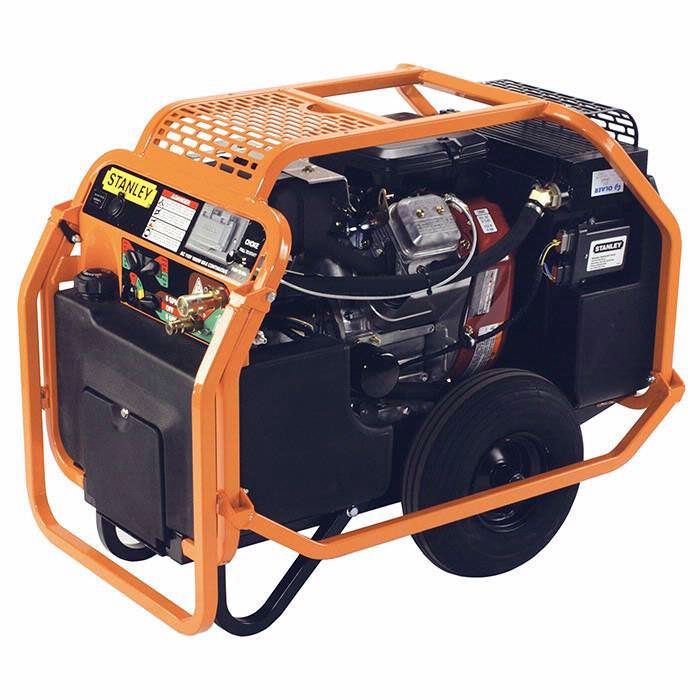

Stanley Hydraulic Power Unit - 8 or 12 gpm Output Capacity REFERENCE ONLY

The GT23B021 has been replaced to Model Number HP12B

Application:

• Designed to provide power for underwater hydraulic tools requiring a single 8 gpm up to 12 gpm

Features:

• All electric control system with rotary switches
• All components are assembled for easy routine servicing
• Upper frame can be removed for more serious servicing
• Quartz hour meter in the control panel records engine run time
• The hydraulic pump is mounted directly to the engine eliminating any misalignment and ensuring long life of the drive coupling
• In-tank hydraulic filter continuously cleans the hydraulic fluid and assures that refill fluid passes through the filter for a clean refill
• 35-Ah sealed, non-spillable, no-maintenance battery is located inside a covered compartment
• Pressure lubrication system with a pressure sensing switch that will shut down the engine if engine oil level is too low
• System will deliver 1000 Watts, continuous and 1500 Watts intermittent power through GFCI (Ground Fault Circuit Interrupter) receptacles

Specifications:

• Output Capacity: 8 or 12 GPM (30 or 45 LPM)
• Pressure: 2000 PSI (140 bar)
• Circuit Type: Open Center
• Hydraulic Reservoir Capacity: 3 gallons (11 liters)
• Fuel Tank Capacity: 7 gallons (26.5 liters)
• Weight (Wet): 340 lbs (154 kg)
• Dimensions: 35 in. L x 21.5 in. W x 29 in. H (89 cm L x 54.6 cm W x 73.7 cm H)
• Engines: Briggs and Stratton 23 Horsepower Vanguard OHV, Gas
