Amron Standard LED Hyperbaric Chamber Light

SKU

7140-01+BUNDLE

From $624.00

To $684.00

Eligible for Free Shipping Over $125

Add to Wish List

Skip to the end of the images gallery

Skip to the beginning of the images gallery

7140-01 Standard LED Hyperbaric Chamber Light

Amron Standard LED Hyperbaric Chamber Light (SHIP NOW) + $624.00

SKU: 7140-01

Quantity

Optional Magnetic Mounting Base

Add

Amron Magnetic Mounting Base for Amron Chamber Light (SHIP NOW) + $60.00

SKU: 540-0021-01

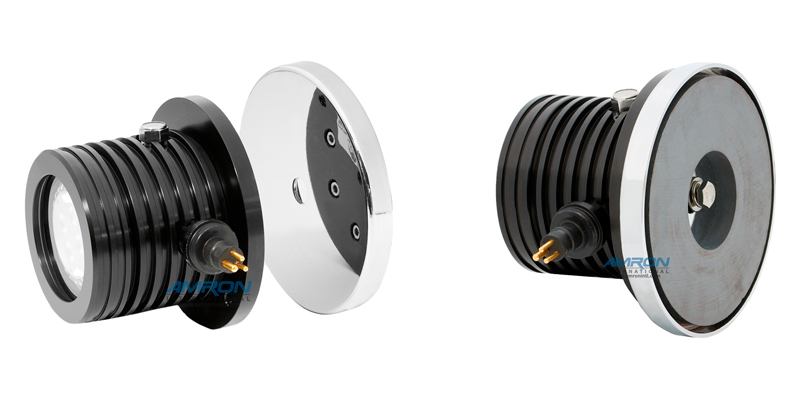

Magnetic base converts the base of your light into a heavy duty magnet which provides the chamber light to be easily, but securely placed on any magnetic surface within the chamber.

Amron Standard LED Hyperbaric Chamber Light

Eligible for Free Shipping Over $125

$624.00

Specs

More Information

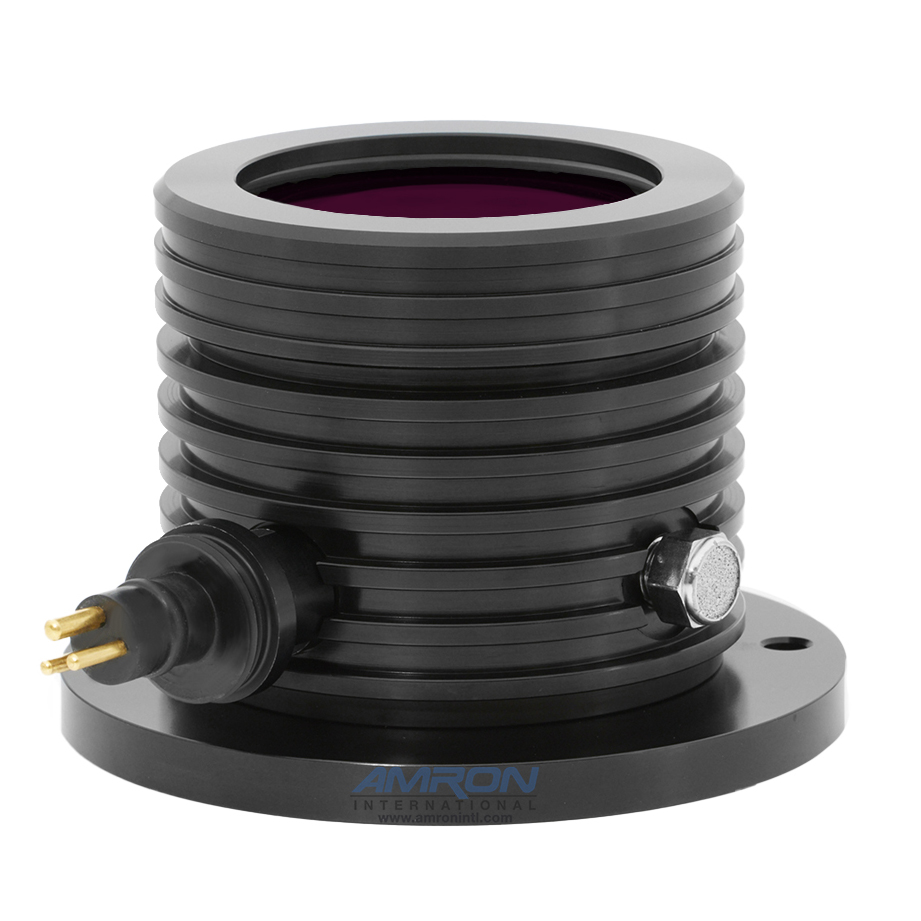

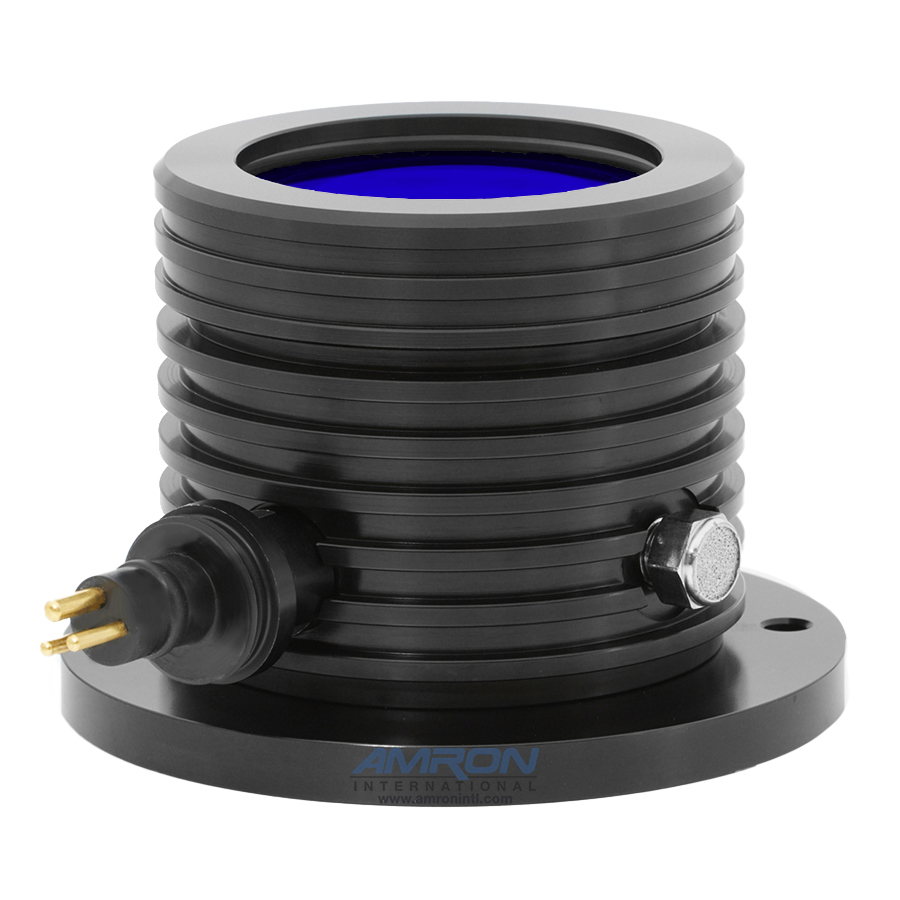

	DISCLAIMER NOTICE: Amron's chamber lights are designed to be used in air chambers where oxygen concentrations remain below 23.5%. Our lighting products are NOT designed for oxygen service, are not intrinsically safe, and do not meet the criteria given in NFPA-99, Chapter 20 and other applicable definitions. Misuse of our chamber lighting products in high-concentration Oxygen environments may result in serious injury and/or death. 7140-01 Chamber Light Features 4.2 watt LED bulb equivalent to 30 watt halogen bulb. Adjustable integrated mounting plate. Low heat with high-performance heat sink. 3-pin male marsh marine connection. Optional Magentic Base The single bolt set-up provides quick and easy set-up unlike the traditional mounting process of several bolts and fasteners. Turns the standard base of the chamber light into a heavy duty magnet which provides the chamber light to be easily, but securely placed on any magnetic surface within the chamber. Allows chamber light to be redirected almost anywhere you need with complete ease. Accessories Colored lens filters offer customized chamber lighting and are easy to install Red Lens Filter Blue Lens Filter Specifications Lamp Type: White 4.2 watt LED (equivalent to 30 watt halogen bulb) Filter: Frosted Electrical Operating Voltage Range: 10-28 VDC Input Power: 5 watts (maximum) Beam Angle: 30° Light Level: 300 lumens Mechanical Housing: 6061 aluminum Finish: Black hard anodized, MIL-A-8625, type III class 2 Pressure Rating: 1000 fsw (300 msw) Mating Connectors 3-Pin Marsh Marine: RMG-3-FS (not included) Locking Sleeve: Delrin - marsh marine: G-FLS-D (not included) Locking Sleeve: Stainless steel - marsh marine: G-FLS-S (not included) Dimensions Height: 3.15 in. (80 mm) Body Diameter: 3.3 in. (84 mm) Mounting Plate: 4.5 in. (114 mm) Weight: 1.50 lb. (0.68 kg) *Mounting Holes - Industry Standard Two 0.25 inch (6.35 mm) diameter mounting holes with a 3.82 in. (97 mm) spacing.

Information

DISCLAIMER NOTICE: Amron's chamber lights are designed to be used in air chambers where oxygen concentrations remain below 23.5%. Our lighting products are NOT designed for oxygen service, are not intrinsically safe, and do not meet the criteria given in NFPA-99, Chapter 20 and other applicable definitions. Misuse of our chamber lighting products in high-concentration Oxygen environments may result in serious injury and/or death.

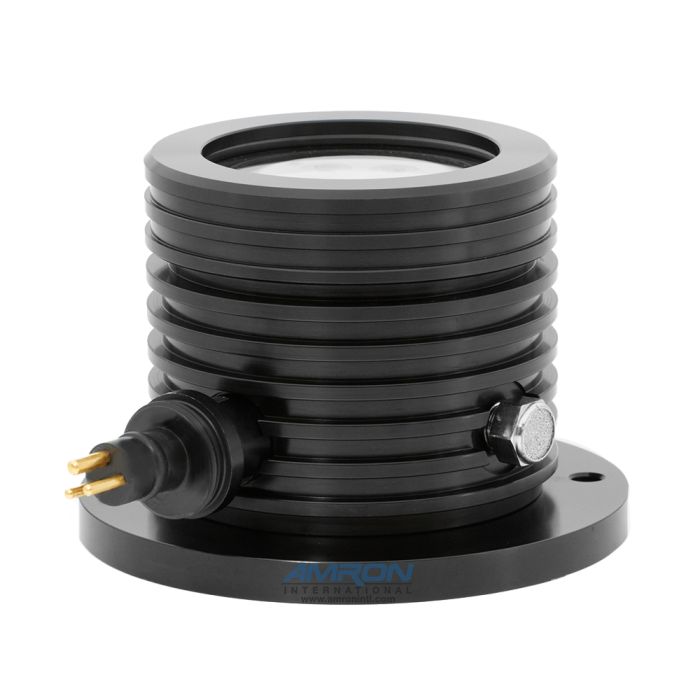

Amron’s 7140-01 Standard LED Hyperbaric Chamber Light offers amazing features at an economical price. The 7140-01 features a 4.2 watt LED light (equivalent to 30 watt halogen), has an industry standard mounting plate for easy retrofit into existing chamber installations, a rugged 6061 black hard anodized aluminum housing with a filtered vent, a male 3-pin power connector that connects to any female RMG-3-FS cable, and can dive in the chamber to 1000 FSW (300 MSW). Power is controlled by an ON/OFF switch located outside of the chamber.

The 7140-01 mounting holes are an industry standard 0.25 in. (6.35 mm) diameter with a 3.82 in. (97 mm) spacing. The mounting plate can be easily removed to allow you to reposition the housing on the mounting plate to achieve the perfect orientation inside your chamber. An optional magnetic mounting base is available.
