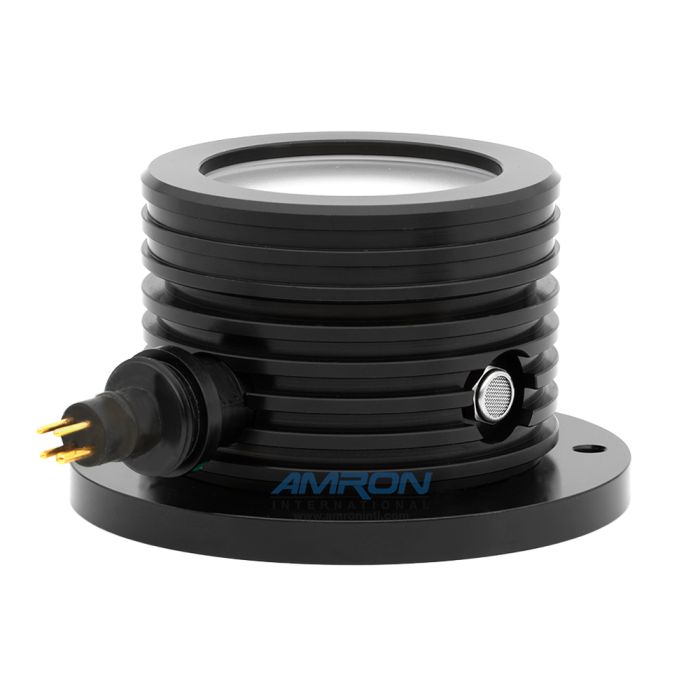

Amron LED Hyperbaric Chamber Light w/ Frosted Lens

Name: Amron LED Hyperbaric Chamber Light w/ Frosted Lens
Brand: Amron
SKU: 7120
Price: 853.00 USD
Availability: InStock

SHIP NOW

SKU

7120

Please contact Amron directly for GSA pricing at 1-877-462-6700.

$853.00

The Amron International 7100 Series Chamber Light boasts advanced LED technology with a 50,000 hour life.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Features Exclusive 6 level light intensity dimmer touchpad Long lasting LED technology with 50,000 hour life Low profile design Adjustable integrated mounting plate 4-pin wiring configuration Low heat with high-performance heat sink Optional magnetic base available Optional red and blue lens filters Specifications Lamp type: Bright white LED Filter: Frosted Dimensions: Height: 2.6 in. (67 mm) Body Diameter: 3.3 in. (84 mm) Mounting Plate: 4.5 in. (114 mm) Weight: 1.50 lbs. (0.68 kg) Mounting Holes - Industry standard: Two 0.25 in. (6.35 mm) diameter mounting holes with a 3.82 in. (97 mm) spacing Electrical Specifications Operating Voltage Range: 9-28 VDC Input Power: 15 watts (maximum) Beam Angle: 120° Light Level: Adjustable up to 1000 lumens External Dimmer Control Voltage (7120 only): 0-10 volts Mechanical Specifications Housing: 6061 aluminum Finish: Black hard anodized, MIL-A-8625, type III class 2 Pressure Rating: 1000 FSW (300 MSW) Mating Connectors 7120 - 4-pin marsh marine: RMG-4-FS (not included) Locking Sleeve Delrin - marsh marine: G-FLS-D (not included) Stainless steel - marsh marine: G-FLS-S (not included) DISCLAIMER NOTICE: Amron's chamber lights are designed to be used in air chambers where oxygen concentrations remain below 23.5%. Our lighting products are NOT designed for oxygen service, are not intrinsically safe, and do not meet the criteria given in NFPA-99, Chapter 20 and other applicable definitions. Misuse of our chamber lighting products in high-concentration Oxygen environments may result in serious injury and/or death. Features Touch switch with 6-level light intensity dimmer. Long-lasting LED technology (50,000 hour life). Frosted lens for diffuse lighting. Compact, low profile design. Light can be controlled from outside the chamber. Mounting plate can be rotated to orient connector & switch. Low heat, high-performance heat sink. Vented design requires no pressure relief valve. 4-pin wiring (V+, V-, Dimmer Control, Safety GND). 4-pin Marsh Marine style connector (mates with RMG-4-FS). Optional magnetic base (P/N: 540-0021-01). Optional lens filters - Red (P/N: 245-0003-01) and Blue (P/N: 245-0004-01). Dimensions Height: 2.6 in. (67 mm) Body Diameter: 3.3 in. (84 mm) Mounting Plate: 4.5 in. dia. (114 mm) Weight: 1.50 lbs. (0.68 kg) Mounting Holes: 2 x 0.25 in. (6.35 mm) dia. with 3.82 in. (97 mm) spacing Electrical Specifications Lamp Type: Bright white LED (5000K) Operating Voltage Range: 9-28 VDC Input Power: 15 watts (max.) Beam Angle: 120° Light Level: Adjustable - 1000 lumens (max.) Electrical Connection Male 4-Pin Marsh Marine (RMG-4-MP style equivalent) Mating Connector / Cable Options: RMG-4-FS Marsh Marine (not included) WPC-4-FS-10 Low Smoke Zero Halogen Cable (not included) Mating Connector Locking Sleeve Options: Delrin G-FLS-D Marsh Marine (not included) Stainless Steel G-FLS-S Marsh Marine (not included) Other Specifications Lens: Borosilicate glass (frosted) Housing: 6061 aluminum Finish: Black hard anodized (MIL-A-8625, Type III Class 2) Pressure Rating: 1000 FSW (300 MSW) DISCLAIMER NOTICE: Amron's chamber lights are designed to be used in air chambers where oxygen concentrations remain below 23.5%. Our lighting products are NOT designed for oxygen service, are not intrinsically safe, and do not meet the criteria given in NFPA-99, Chapter 20 and other applicable definitions. Misuse of our chamber lighting products in high-concentration Oxygen environments may result in serious injury and/or death.

Information

Amron International's 7100 Series of LED Hyperbaric Chamber Lights provides industry leading illumination along with a dimmer feature not found on competitor's LED lights. The 7100 Series comes with an industry standard mounting plate to allow easy retrofit in existing chamber installations and an optional magnetic base that allows for quickly moving the light as needed. The light can be ordered with red or blue filters.

The 7120 comes with a 4-pin bulkhead connector. The fourth pin is a dimmer control line that controls the light level using a 0-10 Volts control line. The light level will be the higher of the internal and external dimmer control settings.

DISCLAIMER NOTICE: Amron's chamber lights are designed to be used in air chambers where oxygen concentrations remain below 23.5%. Our lighting products are NOT designed for oxygen service, are not intrinsically safe, and do not meet the criteria given in NFPA-99, Chapter 20 and other applicable definitions. Misuse of our chamber lighting products in high-concentration Oxygen environments may result in serious injury and/or death.

The Amron International model 7120 LED Hyperbaric Chamber Light provides industry leading chamber illumination with a compact, low-profile design, an integrated touch switch dimmer feature, and flexible mounting options.

The 7120 LED light comes with an industry standard mounting plate to allow easy mounting in existing chamber installations. The mounting plate is designed so it can be removed and rotated. This allows locating the connector or switch to whatever orientation is convenient for the chamber installation. The 7120 can also be used with an optional magnetic base that allows for quickly moving the light to wherever its needed, in whatever orientation is desired.

The LED light has a maximum brightness of 1000 lumens of bright white (5000K) light. The touch switch allows the user to select from 6 different brightness levels with the touch of a finger. The borosilicate glass lens is frosted to provide diffuse lighting. Optional red or blue lens filters are also available.

The 7120 dimmer function is controlled by a touch switch located on the side of the light, or from outside the chamber by an operator. The remote dimmer control is variable while the touch switch dimmer steps from level to level. The light level will be the higher of the internal and external dimmer control settings.

The dimmer control touch switch works by increasing the light level with each touch until the maximum level is reached. After reaching maximum brightness, each successive touch will reduce the light level until the light is off. Continuously touching the touch switch has no effect. Should the light be turned off inside the chamber, the chamber operator can turn the light back on by cycling the power to the light from the outside.

The 7120 comes with an industry standard 4-pin bulkhead connector similar to an RMG-4-MP Marsh Marine connector that mates with an optional RMG-4-FS connector / cable. Should your installation require a low smoke, zero halogen cable, the optional WPC-4-FS-10 connector / cable is also compatible with the 7120 connector. Locking sleeves are also available optionally in two different materials – Delrin (G-FLS-D) and Stainless Steel (G-FLS-S).

Resources

ATTACHMENTS

Amron Chamber Light 7100 Series Flyer

(Size: 491.5 KB)

Amron Chamber Light Recommended Dimmer Wiring

(Size: 65.7 KB)

Amron Models 7100 and 7120 Chamber Lights User Manual REV 8.0

(Size: 274.5 KB)

FAQ's

What equipment will I need to install the 7100 Series Hyperbaric Chamber Light in my chamber?

The 7100 Series Hyperbaric Chamber Light and a 3- or 4- power cable with locking sleeve which is not included with the chamber light. Amron recommends the RMG-3-FS for the model 7100 Hyperbaric Chamber Light and the RMG-4-FS for the 7120 Hyperbaric Chamber Light. The standard RMG connector comes with an 18 inch pigtail but custom lengths are available. Also note, the standard RMG connector does not come standard with low smoke zero halogen cable, if you require this type of cable please let your sales representative know prior to placing your order. You will need a 4 conductor 18 AWG electrical penetrator to pass your power supply through the pressure boundary. When using the 7120 Hyperbaric Chamber Light with dimmer option, Amron recommends using a 0-10V dimmer controller. When using the 7100 Hyperbaric Chamber Light, Amron recommends using a standard household On/Off Switch. Both switches can be purchased at most hardware stores.

Can I replace the LED Light on the 7100 Series Hyperbaric Chamber Light?

Yes. Please refer to your user manual for instructions.

Does the 7100 Hyperbaric Chamber Light meet or exceed DNV standards?

Yes, but the light has not been third party tested and it does not come with any third party documentation.

Can I change the position of the light housing on the mounting plate of the 7100 Series LED Chamber Lights?

Yes, there are 8 screws under the integrated mounting plate that can be removed to allow you to reposition the housing on the mounting plate.

Does the Amron light come with an ASME PVHO-1-2012 certificate?

No.

How does the light housing vent atmospheric pressure?

The 7100 Series Hyperbaric Chamber Light has a unique pressure vent that allows gas to pass in and out of the light housing.

Is the waterproof connector included with the light?

No, you will need to purchase a standard 3 or 4 pin RMG Waterproof connector. The 7100 series requires a three pin connector where the 7120 requires a 4 pin waterproof connector. You should also purchase the female locking sleeve to protect your waterproof connector from accidental disconnection.
