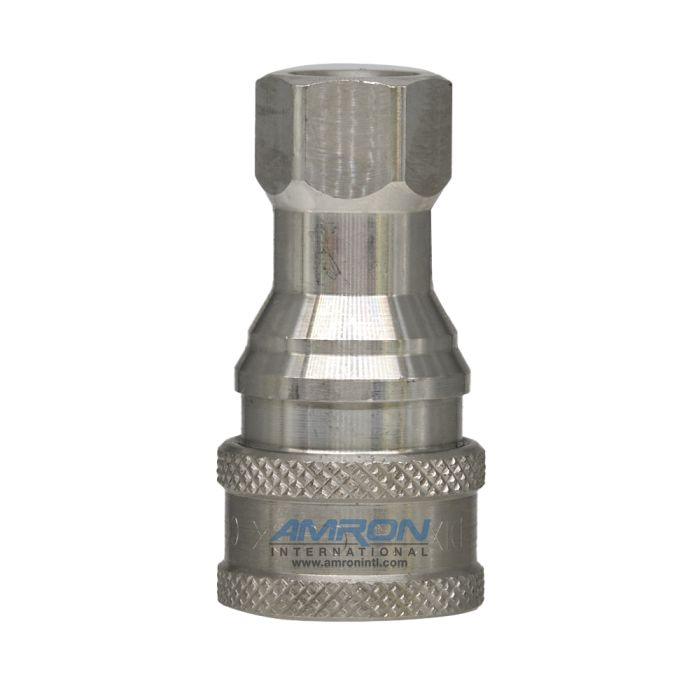

Dixon 2HF2-S-LS - H-Series ISO-B Poppet Valve Socket 1/4 In. Body X 1/4 In. FNPT - 303 SS W/Locking Sleeve

Name: Dixon 2HF2-S-LS - H-Series ISO-B Poppet Valve Socket 1/4 In. Body X 1/4 In. FNPT - 303 SS W/Locking Sleeve
Brand: Dixon
SKU: 320-0074-01
Price: 75.74 USD
Availability: InStock

SHIP NOW

SKU

320-0074-01

$75.74

SOCKET LOCKING 1/4IN X 1/4IN FNPT 303SS

Restrictions / Notifications

CA PROP65
Warning: Cancer and Reproductive Harm www.p65warnings.ca.gov

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Information

Features

Poppet style shut-off valve.
Machined components are manufactured using solid bar stock.
Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
Steel coupler sleeves are hardened to resist deformation and maximize service life.
Redundant o-ring sealing system with PTFE backup ring.
Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection.

Specifications

Body: 303 stainless steel (plated using ROHS compliant trivalent chrome)
Features a Locking Sleeve
Seals: Nitrile rubber
Thread Size: 1/4 in. -18
Length: 2.26 in. (57.4 mm)
Hex: 3/4 in.
Maximum OD: 1.12 in. (28.4 mm)
Temperature Range: -40°F to 250°F (-40°C to 121°C)
Maximum Operating Pressure: 3500 psi (240 bar) thread: Female NPTF
Burst Pressure: 33000 psi (2200 bar)
Meets dimensional requirements of ISO 7241 Series B
Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
Weight: 0.275 lb.
