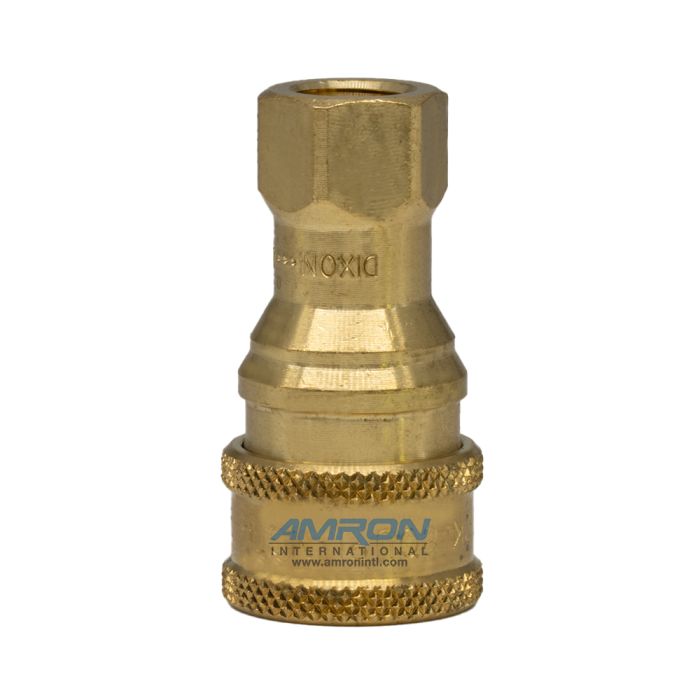

Dixon Poppet Valve Female Threaded Coupler

Name: Dixon Poppet Valve Female Threaded Coupler
Brand: Dixon
SKU: 320-0063-01
Price: 26.71 USD
Availability: InStock

SKU

320-0063-01

$26.71

Restrictions / Notifications

More Information
	Features Poppet style shut-off valves in both coupler and plug. Interchangeable with Hansen HK, Faster HNV, Stucchi IRB/IRBO/IRBX, Parker 60-Series, Snap-Tite 72-Series,Eaton/Aeroquip FD45. Approval: Meets dimensional requirements of ISO7241 Series B. Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS Compliant Trivalent Chrome. Steel coupler sleeves are hardened to resist deformation and maximize service life. Nitrile (Nitrile Rubber) seals are standard. Has a redundant O-ring sealing system (dual O-Rings/no PTFE back-up ring. Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection. Specifications Nitrile seals standard providing temperature range of -40°F to 250°F (-40°C to 121°C) Maximum Operating Pressure: 3,000 PSI (200 Bar) Burst Pressure: 15,000 PSI (1,000 Bar) Material: Brass Thread: 1/4 in. NPTF Female Hex: 7/8 in. Length: 2.26 in. (57.4 mm)
