Approved Vendor Micro Bulkhead Connector - 4 Pin Male

Name: Approved Vendor Micro Bulkhead Connector - 4 Pin Male
Brand: Approved Vendor
SKU: MCBH4M
Price: 108.65 USD
Availability: InStock

SHIP NOW

SKU

MCBH4M

$108.65

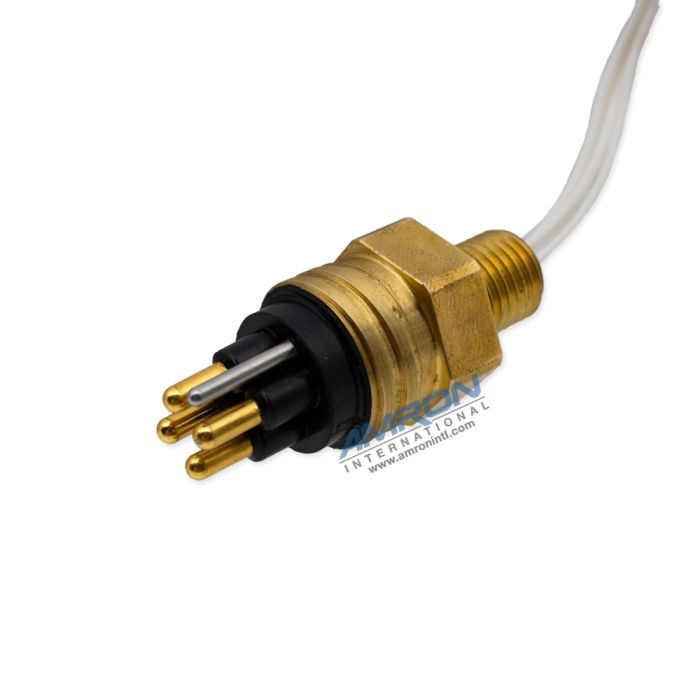

Micro Bulkhead Connector - 4 Pin Male MCBH4M is a lightweight durable design that allows for repeated mating cycles, extreme ocean depth and varying temperatures.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Applications: Underwater vehicle systems Offshore oil and gas Renewable energy Defense Oceanographic Seismic Diving Video Features: Wet mateable. Individual pin-to-socket contacts contain premium molded o-ring seals for enhanced waterproof sealing capability. High-grade brass and metal shell. High ocean depth rating. Specifications: Pressure Rating: 10k PSI Voltage Rating: 300 V DC/AC rms Contact Amp. Rating: 10 A per contact (Max 20 A per connector) Operating Temperature: 20°F to 140°F Insulation Resistance: >200 Mohm Contact Resistance: <0.01 Ω Wet Mating: >500 (open face rated) Temperature Rating (Water): -4 to 60°C, 25 to 140°F Temperature Rating (Air): -40 to 60°C, -40 to 140°F Storage Temperature: -40 to 60°C, 40 to 140°F Connector Body Material: Chloroprene Rubber Bulkhead Body Material: Brass, stainless steel, titanium, anodized aluminum Contact Pin Material: Gold plated brass UNS to C36000 Location Pin: Stainless Steel AISI 303 O-Rings: Nitrile Locking Sleeves: Acetal or stainless steel Inline Cable Wire Size: 18 AWG Insulation: Chloroprene Jacket Material: Rubber Inline Cable Outside Diameter: .385 in. Bulkhead 7/16 Thread Wire Size and Insulation Material: 20 AWG PTFE Hex Nut with Washer Sold Separately. N-W-S002-BRASS Amron reserves the right to supply this style from multiple manufacturers. Applications Underwater vehicle systems Offshore oil and gas Renewable energy Defense Oceanographic Seismic Diving Video Features Wet mateable. Individual pin-to-socket contacts contain premium molded O-ring seals for enhanced waterproof sealing capability. High-grade brass and metal shell. High ocean depth rating. Specifications Pressure Rating: 10,000 PSI Voltage Rating: 300 V DC/AC RMS Contact Amp. Rating: 10 amps per contact (Max 20 amps per connector) Operating Temperature: 20°F to 140°F Insulation Resistance: >200 MΩ Contact Resistance: <0.01 Ω Wet Mating: >500 (open face rated) Temperature Rating (Water): 25 to 140°F, -4 to 60°C Temperature Rating (Air): -40 to 140°F, -40 to 60°C Storage Temperature: 40 to 140°F, -40 to 60°C Connector Body Material: Chloroprene rubber Bulkhead Body Material: Brass, stainless steel, titanium, anodized aluminum Contact Pin Material: Gold-plated brass UNS to C36000 Location Pin: Stainless steel AISI 303 O-Rings: Nitrile Locking Sleeves: Acetal or stainless steel Inline Cable Wire Size: 18 AWG Insulation: Chloroprene Jacket Material: Rubber Inline Cable Outside Diameter: .385 in. Bulkhead 7/16 Thread Wire Size and Insulation Material: 20 AWG PTFE Hex Nut with Washer Sold Separately - P/N: N-W-S002-BRASS DISCLAIMER NOTICE: Amron reserves the option to supply this style from multiple manufacturers. If you prefer a particular manufacturer, please let your salesperson know before ordering.

Information

Micro Bulkhead Connector - 4 Pin Male MCBH4M is a lightweight durable design that allows for repeated mating cycles, extreme ocean depth and varying temperatures.
