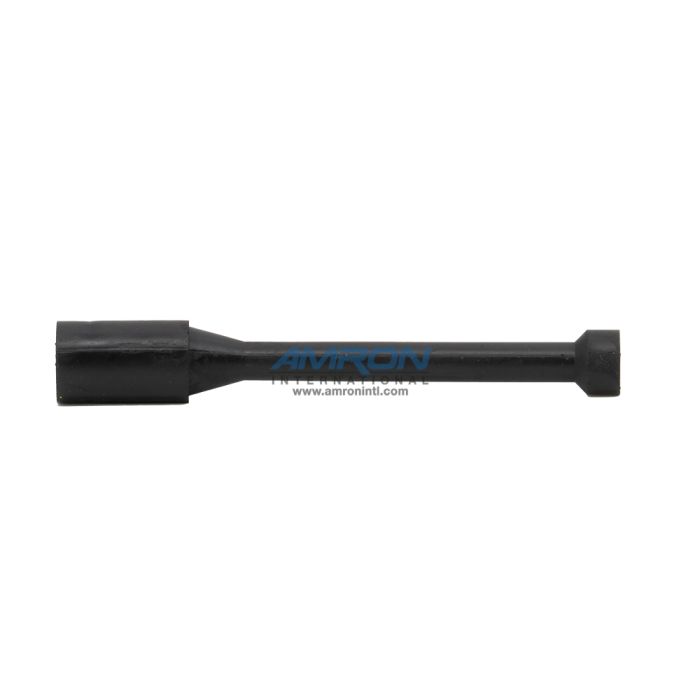

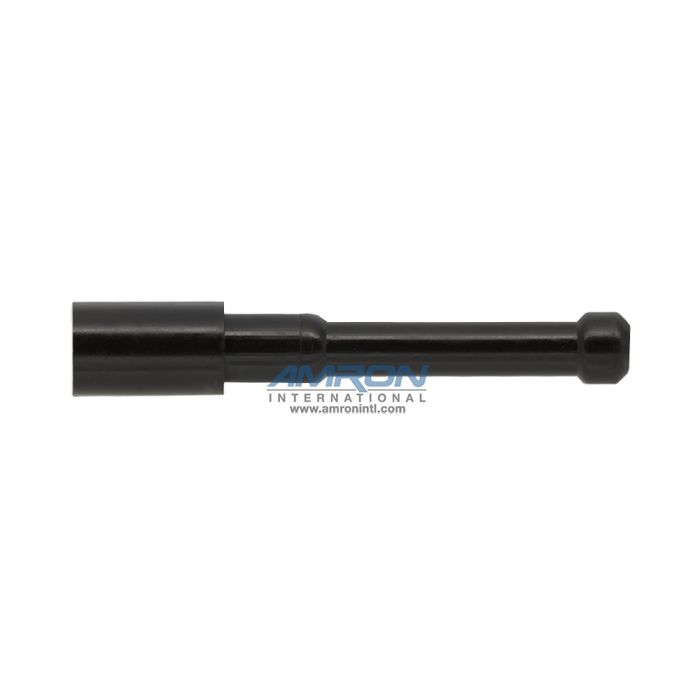

Approved Vendor Micro Wet Dummy Connector - 4 Way Female

SKU
MCDC4F
$30.14
Eligible for Free Shipping Over $125

Restrictions / Notifications

  • Non-Returnable/Non-Cancelable
    This item cannot be canceled or returned once an order has been placed.
More Information
Applications
  • Underwater vehicle systems
  • Offshore oil and gas
  • Renewable energy
  • Defense
  • Oceanographic
  • Seismic
  • Diving
  • Video



Features
  • Wet mateable.
  • High ocean depth rating.
  • Individual pin-to-socket contacts contain premium molded o-ring seals for enhanced waterproof sealing capability.
  • High-grade neoprene, polyurethane, metal shell, and custom materials are available.
  • Inline and bulkhead options available.



Specifications
  • Connector: Female
  • Connector Sockets: 4
  • Pressure Rating: 10k PSI
  • Voltage Rating: 300 V DC/AC rms
  • Operating Temperature: 20°F to 140°F
  • Insulation Resistance: >200 MΩ
  • Contact Resistance: <0.01 Ω
  • Wet Matings: >500 (open face rated)
  • Temperature Rating (Water): -4 to 60°C, 25 to 140°F
  • Temperature Rating (Air): -40 to 140°F / -40 to 60°C
  • Storage Temperature: 40 to 140°F / -40 to 60°C
  • Connector Body Material: Chloroprene rubber
  • Socket Material (Female): Gold-plated beryllium copper



DISCLAIMER NOTICE: Amron reserves the option to supply this style from multiple manufacturers. If you prefer a particular manufacturer, please let your salesperson know before ordering.

The Micro Wet Dummy Connector - 4 Way Female MCDC8F is a lightweight, durable design that allows for repeated mating cycles, use at extreme ocean depths, and in varying temperatures.
