Approved Vendor Micro Wet Dummy Connector - 4 Pin Male

SKU
MCDC4M
Add to Wish List
MCDC4M Micro Wet Dummy Connector - 4 Pin Male

Restrictions / Notifications

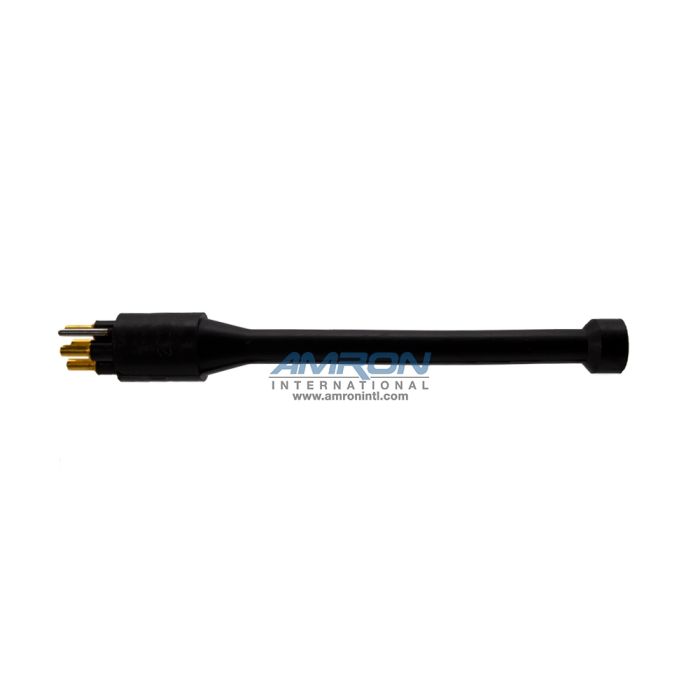

main product photo
More Information

Applications:

  • Underwater camera and lights (video system)
  • Diver communications
  • ROV systems
  • Submersibles
  • Towed-array cable systems
  • Current meters
  • Animal migration research
  • Food processing equipment

Specifications:

  • Molded Body: Neoprene
  • Bulkhead Body: Brass
  • Contacts: Brass-Gold Plated
  • Guide Pins: Stainless Steel
  • Open Face Pressure: 10,000 PSI (Approx. 689 Bar) Optional And Needs To Be Specified Dummy Cap Recommended Above 100 PSI
  • Mated Pressure: 10,000 PSI (Approx. 689 Bar)
  • Insulation Resistance: >200 Megohms @ 300 VDC
  • Contact Resistance: <0.01 Ohms
  • Air Mate: >1,000 Cycles
  • Underwater Mate: >500
  • Operating Temperature: 25° To 140°F (-4° To 60°C)
  • Mates with: MCIL4F and MCBH4F
  • Connector Pins: 4
  • Length 4.45 in.
Applications
  • Underwater camera and lights (video system)
  • Diver communications
  • ROV systems
  • Submersibles
  • Towed-array cable systems
  • Current meters
  • Animal migration research
  • Food processing equipment



Specifications
  • Molded Body: Neoprene
  • Bulkhead Body: Brass
  • Contacts: Brass, gold-plated
  • Guide Pins: Stainless steel
  • Open Face Pressure: 10,000 psi (approx. 689 bar) *Optional and needs to be specified. Dummy cap recommended above 100 psi.
  • Mated Pressure: 10,000 psi (approx. 689 bar)
  • Insulation Resistance: >200 MΩ @ 300 VDC
  • Contact Resistance:
    • Air Mate: >1,000 cycles
    • Underwater Mate: >500
  • Operating Temperature: 25° to 140°F (-4° to 60°C)
  • Mates with: MCIL4F and MCBH4F
  • Connector Pins: 4



DISCLAIMER NOTICE: Amron reserves the option to supply this from multiple manufacturers. If you prefer a particular manufacturer, please let your salesperson know before ordering.
Information

The MCDC4M Micro Wet Dummy Connector - 4 Pin Male is perfectly suited for applications where size and weight are an issue.
