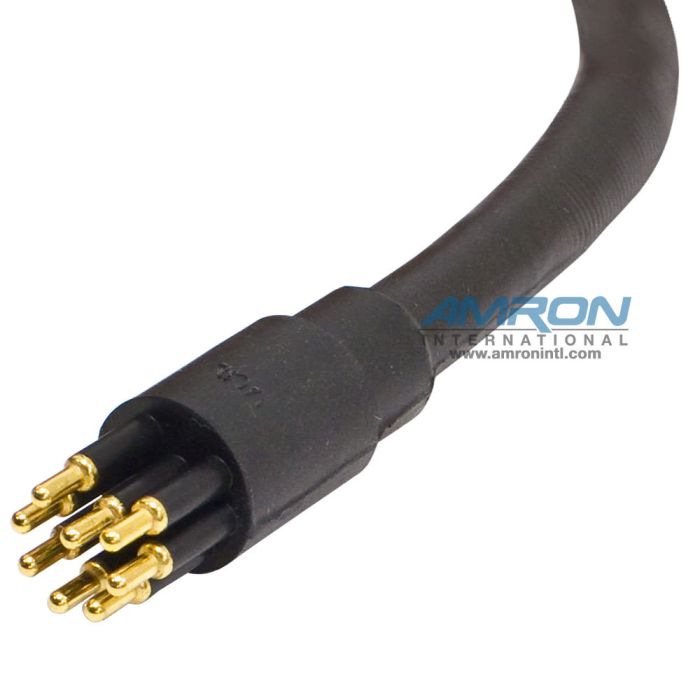

Approved Vendor Micro In-Line Connector - 8 Pin Male

Micro Series MCIL8M Male 8 Pin In-Line Connector allows for smaller through ports in a pressure vessel and a greater density of conductors in a compact area. This connector is wet-mateable therefore enabling connections to be made underwater, on-deck or in any weather condition.

Applications:

• Underwater camera and lights (video system)
• Diver communications
• ROV systems
• Submersibles
• Towed-array cable systems
• Current meters
• Animal migration research
• Food processing equipment

Specifications:

• Molded Body: Neoprene
• Contacts: Brass-gold plated
• Guide Pins: Stainless steel
• In-Line Cable: 8 Pin: neoprene #20 awg
• In-Line Cable Length: +/- 2 ft.
• Open Face Pressure: 10,000 psi (approx. 689 bar) optional and needs to be specified dummy cap recommended above 100 psi
• Mated Pressure: 10,000 psi (approx. 689 bar)
• Voltage Rating 8 Pin: 300 vdc
• Current Rating: 3 amps per contact
• Insulation Resistance: >200 megohms @ 300 vdc
• Contact Resistance: <0.01 ohms
• Air Mate: >1,000 cycles
• Underwater Mate: >500
• Operating Temperature: 25° to 140°F (-4° to 60°C)
• Mates with: MCIL8F and MCBH8F
• Dummy Connector Mate: MCDC8F
• Connector Pin: 8
• Length: 0.75 in.
• Width: 0.62 in.
