Aqua Environment Hand/Spring Loaded Reducing Regulator with 1/4 in. FNPT Fittings (0 to 6,000 PSI Out)

Name: Aqua Environment Hand/Spring Loaded Reducing Regulator with 1/4 in. FNPT Fittings (0 to 6,000 PSI Out)
Brand: Aqua Environment
SKU: 415-6000
Price: 300.08 USD
Availability: InStock

SKU

415-6000

List Price: $341.00

$300.08

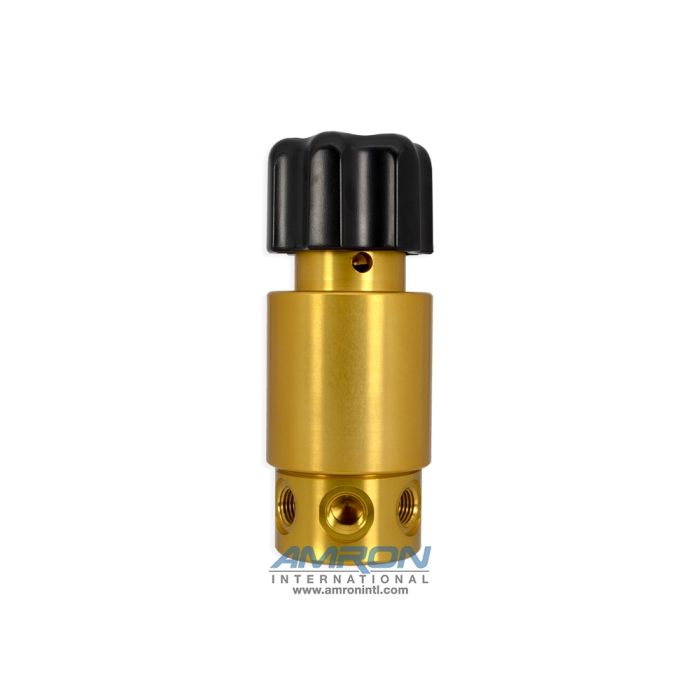

Aqua Environment's Hand/Spring Loaded Reducing Regulator with 1/4 in. FNPT Fittings (0 to 6,000 PSI Out) 415-6000 is a piston type, hand loaded regulator. It uses an unbalanced poppet design for ruggedness and simplicity. There is a small variation of control pressure with changing inlet pressure as noted in the specifications. A 30 micron filter in the poppet cartridge helps prevent damage by contaminants.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Specifications: Series Designation: 415 Series Type: Reducing regulator PSI Out: 0 to 6,000 PSI Method of Operation: Hand/Spring loaded Maximum Rated Pressure: 6,000 PSI Outlet Pressure Range: 50-6,000 PSI Outlet Pressure Rating: 6,000 PSI Inlet Port Size: (2 ea.) 1/4 in. FNPT (one gauge, one inlet) Outlet Port Size: (2 ea.) 1/4 in. FNPT (one gauge, one outlet) Flow Coefficient (Cv): 0.06 (equals 0.07 in. orifice) Outlet Pressure Variations with Inlet Pressure Variations: 70 PSI rise/1,000 PSI inlet drop Leakage: Bubble tight Weight: 1.59 lbs./725g Overall Length: 5.5 in. Round Diameter: 2.25 in. Minimum Temperature: -15 ºF/-26 ºC Body Material: Anodized aluminum Internal Materials: Anodized aluminum, brass and stainless Seal Materials: Kel-F and FKM
