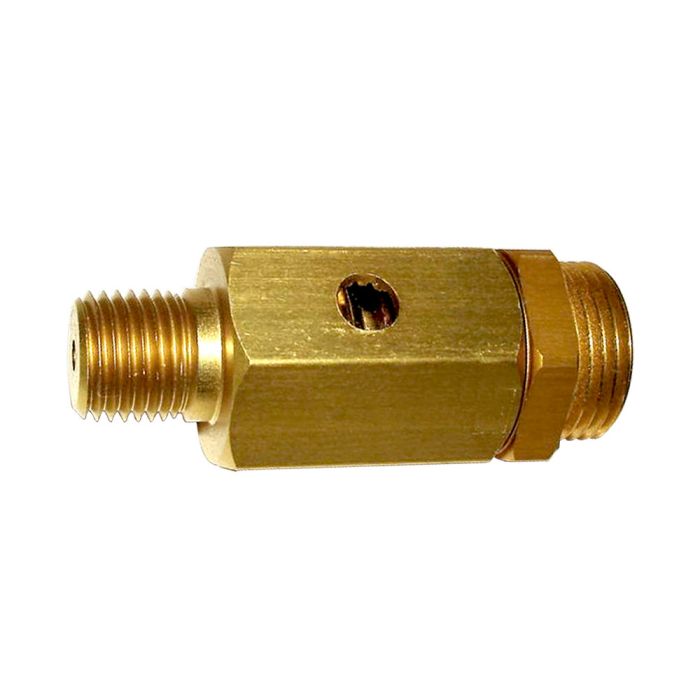

Aqua Environment 504 Relief Valve

SHIP NOW
SKU
MODEL-504

List Price: $88.00

$77.44
Eligible for Free Shipping Over $125
More Information
Specifications
  • Series Designation: 504 series
  • Type: Relief valve
  • Maximum Rated Pressure: 6000 psi
  • Outlet Pressure Setting Range/Adjustment Range (Adjustable): 900-6500 psi
  • Inlet Port Size: 1/4 in. MNPT
  • Outlet Port Size: Side vent; not captured
  • Flow Capacity:
    • 100 SCFM at 3000 psi
    • 50 SCFM at 1500 psi
  • Flow Coefficient (Cv): 0.094 in. orifice diameter
  • Leakage: Bubble tight
  • Outlet Pressure Rating: Atmosphere
  • Weight: 60 g
  • Overall Length: 2.5 in.
  • Hex Diameter: 0.87 in.
  • Minimum Temperature: -15 ºF
  • Body Material: Anodized aluminum
  • Internal Materials:
    • Brass
    • Steel
  • Seal Materials: Viton
  • Repair Kit/Service Items: 504-12



Note: The valve is NOT shipped oxygen clean and should NOT be used for oxygen service. Safety wire holes on device, but no safety wire included.

The Aqua Environment Model 504 Relief Valve is an economical, small, high-pressure relief valve having excellent set pressure control over a large pressure range to 6000 PSI. It stays bubble tight to within a few PSI of set pressure, and reseats bubble tight even after many vent cycles. Safety wire holes are provided for optional locking of set pressure adjustment.



Note: The valve is NOT shipped oxygen clean and should NOT be used for oxygen service. Safety wire holes on device, but no safety wire included.
