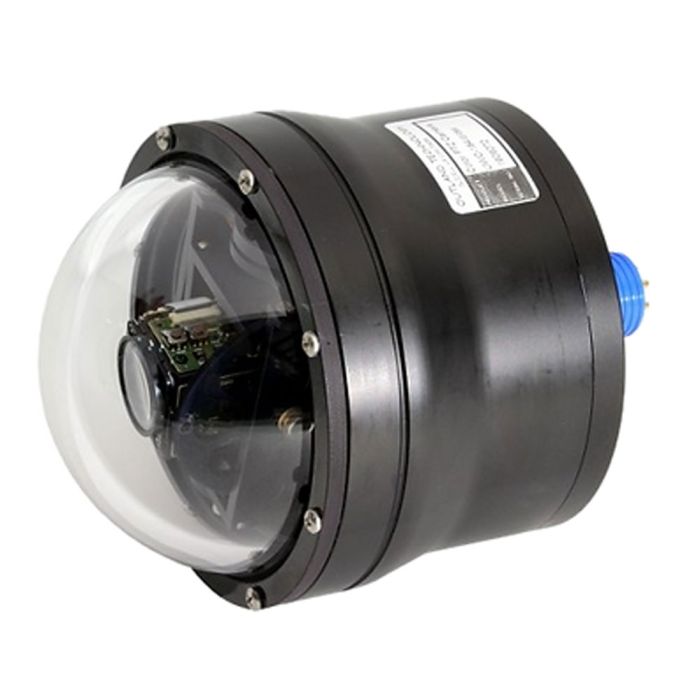

Outland Technology Pan/Tilt/Zoom Dive Camera

Only %1 left

SKU

UWC-184

As low as $5,903.42

Video Quality

Format

Housing Material

Qty

Eligible for Free Shipping Over $125

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Applications ROV Launch cage Drop camera Tow sled Features With a 10X optical zoom/focus capability with auto/manual focus and an expansive nearly 180-degree viewing range, this camera excels in delivering crystal-clear imagery even in extreme underwater conditions. It withstands depths up to 1000 meters (3280 feet), making it perfect for deep-sea exploration. Internal pan/tilt capability and offered in standard-definition and high-definition color. Adapts to your specific needs, providing exceptional video quality. Choose between ceiling and wall mounts for flexible installation. Proudly designed, machined, assembled, and tested in the USA. The UWC-184 sets a new standard for underwater imaging technology, making it the go-to choice for marine biology, research, and industrial inspections. Specifications Mechanical: Diameter: 6.25 in. (159 mm) Length (excluding connector): Wall Mount: 6.5 in. (165 mm) Ceiling Mount: 6.75 in. (171mm) Weight in Air: Aluminum: 7.0 lbs. (3.2 kg) Plastic: 4.5 lbs. (2.0 kg) Weight in Water: Aluminum: 1.5 lbs. (0.68 kg) Plastic: 1.0 lbs. (0.5 kg) buoyant Depth Rating: Aluminum: 3280 ft. (1000 m) Plastic: 2625 ft. (800 m) Housing Material: Aluminum (Delrin optional) Port Material: Acrylic Camera Properties: SD Image Device: 1/4 in. color CCD sensor (1020 H x 508 V pixels) HD Image Device (Type AHD): 1/2.9 in. color 1080P (1920 x 1080 pixels) Sensitivity: 0.2 lux Resolution: SD: 700TVL HD: 1080P Lens: SD: 5.5-55 mm HD: 4.5-45 mm Zoom: 10:1 optical Focus: Auto or remote, macro to infinity Standard Format: NTSC Electrical: Input Voltage at Camera: 12-24 VDC Power: 300 mA @ 12 VDC / 150 mA @ 24 VDC Connector: Standard Connector: OTI-XSK-5-BCL Mate for Standard Connector: OTI-RMK-5-FS 1. Video 2. Ground / Common 3. Power (+) 4. Data + 5. Data – Options: 1. HD 2. PAL 3. Orientation: Ceiling/Floor mount 4. Pelco-D format at several baud rates 5. Lightweight delrin housing 6. Customer-specified connector 7. 3000 m depth

Information

Discover the Outland Technology UWC-184 Dive Camera with Pan, Tilt & Zoom—a powerhouse in underwater video capture. With a 10X zoom, auto/manual focus, and an expansive nearly 180-degree viewing range, this camera excels in delivering crystal-clear imagery even in extreme underwater conditions. It withstands depths up to 1000 meters (3280 feet), making it perfect for deep-sea exploration.

Available in standard definition and high definition, the UWC-184 adapts to your specific needs, providing exceptional video quality. Proudly designed, machined, assembled, and tested in the USA, the UWC-184 sets a new standard for underwater imaging technology, making it the go-to choice for marine biology, research, and industrial inspections.
