Outland Technology Epoxy Bulkhead Connector for Outland Tech Cameras

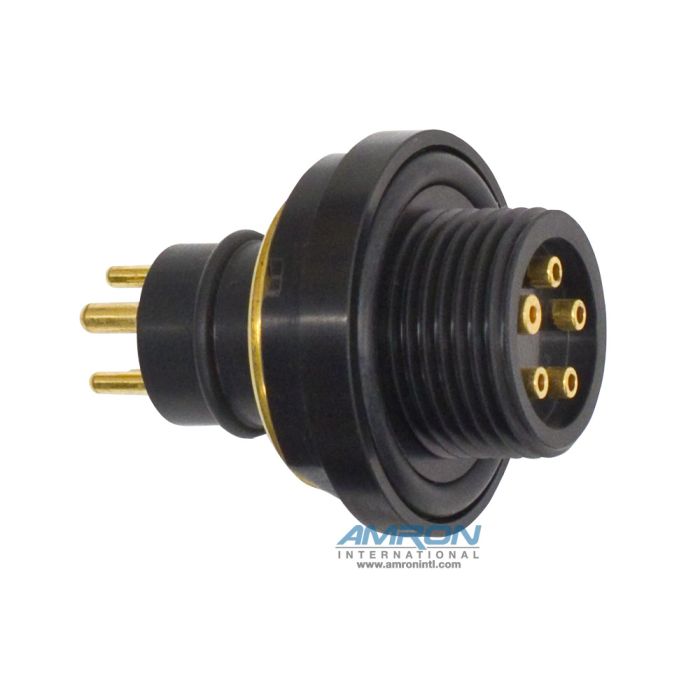

Outland Technology XSK-5-BCL Epoxy Bulkhead Connector for Outland Technology Cameras. One of our oldest connectors in the non-metallic series, with male pin as shown. Connector is one homogeneously molded unit. Available with different thread lengths as indicated. The XSK BCL has a locking sleeve provision and utilizes a facial O-ring seal to the bulkhead.

Applications:

• For light-to-medium power/signal applications where weight and/or magnetic signature are considerations.
• This item is specifically for Outland products.

Features:

• Glass Reinforced Epoxy

Specifications

• Rubber Molded Bulkhead Connector
• Connector: Male 5 pin
• Material: Glass reinforced epoxy
• Contacts: Copper alloy, hard gold plated per ASTM-B-448
• Pressure Rating, Mated: up to 20,000 psi
• Thread Length: .87 in.
• Base Length: 1.18 in.
• O-Ring: 2-213
• Hex Size: 1-3/8 in.
• Mates with (not included): OTI-RMK-5-FS
• Dummy Connector Mate (not included): RMG-5-FSD-HP
• Locking Sleeve (not included): K-FLS-D

Note: The XSK-5-BCL has a locking sleeve provision and utilizes a facial O-ring seal to the bulkhead.
