Outland Technology Complete Portable HDD DVR System with High Definition, LED Light and NTSC Camera

To purchase a smart camera with other available options such as PAL format or HD video, please click here.

Features

• Complete HD video system
• Compact HD camera
• LED light
• 1 TB HDD DVR with video overlay built-in
• Backwards compatible with older SD cameras
• The OTI-UWS-3510 can be converted into a two diver by adding a camera, light, and cable to the system.

Model UWS-330/P Camera Specifications

• Mechanical:
  • Diameter: 1.62 in. (41 mm)
  • Length (Excluding Connector): 5 in. (127 mm)
  • Weight in Air: 9.8 oz. (0.28 kg)
  • Weight in Seawater: 3.1 oz. (0.09 kg)
  • Depth Rating: 6560 ft. (2000 m)
  • Housing Material: Delrin
  • Port Material: Acrylic
• Camera Properties:

  • Image Device: 1/2.7 in. 2MP CMOS (1933 H x 1088 V pixels)
  • Sensitivity: 1.3 lux @ F2.0
  • Resolution: Up to 1933 x 1088
  • Lens: 3.6 mm, F2.0
  • Power: 12-18 VDC
  • Focus: Fixed
  • Horizontal FOV (in Water): 70°
  • Standard Form: NTSC (“/E” is optional PAL format)

Model UWL-401 Light Specifications

• Mechanical:
  • Weight: 8 oz. (0.2 kg)
  • Weight in Air: 3 oz. (0.1 kg)
  • Depth Rating: 6560 ft. (2000 m)
  • Housing Material: Anodized aluminum
• Electrical:
  • Input Voltage: 24 VDC
  • Power: 20 watts
• Light Properties:
  • Light Output 960 lux @ 1 m (2150 lumens) @ 3000 K

Model C-2303 Cable Specifications

• Mechanical:
  • Length: 500 ft. (150m) standard
  • Diameter: 0.35 in. (8.9 mm)
  • Jacket: Polyurethane (orange)
  • Breaking Strength: 1200 lbs. (540 kg)
• Electrical:
  • Conductors: 16 ea. #22 awg; 1 RG-59 Coax

Model CON-3500/D Console Specifications

• Mechanical:
  • Size: 18.5 in. W x 6 in. H x 14.5 in. D (47 cm x 15 cm x 37 cm)
  • Weight: 26 lbs. (11.8 kg)
• Electrical:
  • Power: 110-240 VAC; 50/60Hz.; 440 watts max
  • Light Control: Variable control 0-100%.
  • Monitor: 15 in. ~1600nit, 16:9 1080p HD LCD color with audio
  • Safety: Low voltage output to diver
  • Connections: Front panel connections for umbilicals
  • Recorder: High definition 1 TB HD DVR (standard on all consoles)

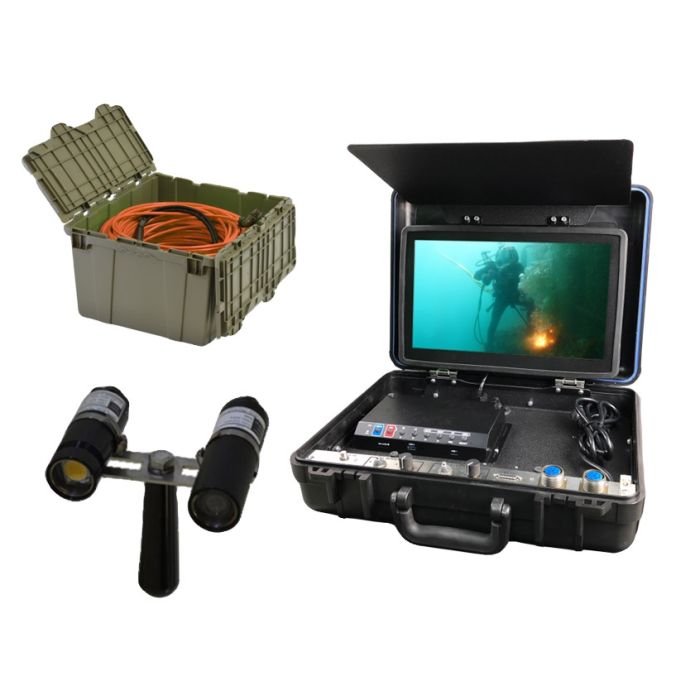

Complete Portable HD Video System with Compact HD Camera, LED Light - P/N: OTI-UWS-3510 Includes

• (1) HD 1080P Camera - P/N: UWC-330/P
• (1) LED light - P/N: UWL-401
• (1) Bracket - P/N: DHM-60
• (1) 500 ft. cable - P/N: C-2303
• (1) 15 in. 16:9 HD Monitor, HDD Recorder, Power Supply with variable light control. All mounted in a weather-resistant shipping case - P/N: CON-3500/D
• (1) User Manual
