Outland Technology Complete HD Single Diver Video System OTI-UWS-3510

Features

• Complete single diver HD video system
• Compact HD camera
• LED light, 2500 lumens
• 1 TB HDD DVR with built-in overlay
• Backwards compatible with older SD cameras

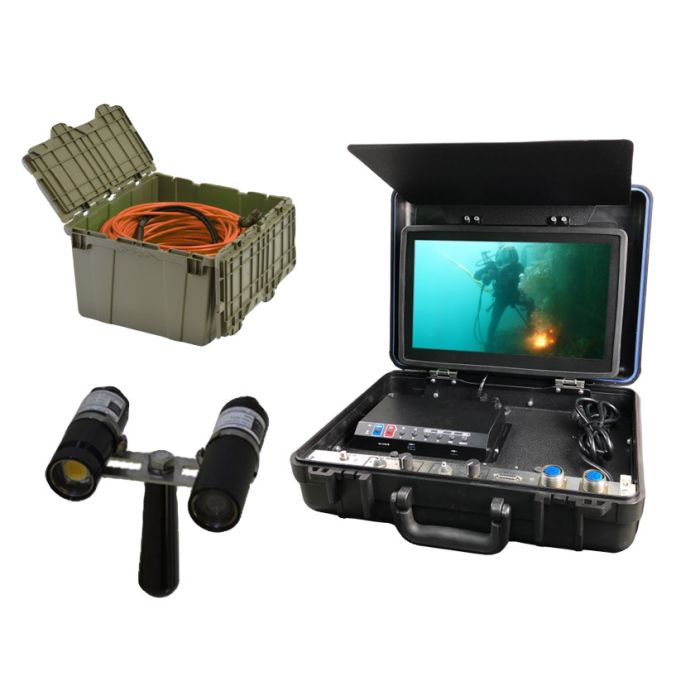

Standard System Includes

• 1 UWC-330/P: HD 1080p camera
• 1 ea. UWL-401: LED light
• 1 ea. DHM-60: Bracket
• 1 ea. C-2303: 500 ft. cable
  • CON-3500/D: 16:9 HD monitor (15 in.), HDD recorder, power supply with variable light control
  • All mounted in a weather-resistant shipping case

Camera Model: UWC-330/P Specifications

• Camera Properties:
  • Image Device: .5 in. Sony sensor
  • Sensitivity: 0.017 lux
  • Resolution: 1080p
  • Lens: 3.6 mm, F2.0
  • Focus: Fixed
  • Horizontal FOV (in Water): ~ 80°
  • Standard Form: NTSC
• Mechanical:
  • Diameter: 1.62 in. (41 mm)
  • Length (Excluding Connector): 5 in. (127 mm)
  • Weight Air: 0.63 lbs. (0.28 kg)
  • Weight in Seawater: 3.1 oz. (0.09 kg)
  • Depth Rating: 6560 ft. (2000 m)
  • Housing Material: Delrin
  • Port Material: Acrylic

Light Model: UWL-401 Specifications

• Mechanical:
  • Weight Air: 0.48 lbs. (0.22 kg)
  • Weight in Seawater: 0.18 lbs. (0.08 kg)
  • Depth Rating: 6,560 ft. (2000 m)
  • Housing Material: Anodized aluminum
• Electrical:
  • Input Voltage: 24 VDC
  • Power: 20 watts
• Light Properties:

  • Light Output: 1,100 lux @ 1 m (2,500 lumens) @ 3000 K

Cable Model: C-2303 Specifications

• Mechanical:
  • Length: 500 ft. (150 m) standard
  • Diameter: 0.35 in. (8.9 mm)
  • Jacket: Polyurethane (orange)
  • Breaking Strength: 1,200 lbs. (540 kg)
• Electrical:
  • Conductors: 16 ea. #22 awg; 1 RG-59 coax

Console Model: CON-3500/D Specifications

• Mechanical:
  • Size: 18.5 in. W x 14.5 in. D x 6 in. H (7.3 cm x 5.7 cm x 2.36 cm)
  • Weight: 25 lbs. (11.8 kg)
• Electrical:
  • Power: 110-240 VAC; 50/60 Hz.; 350 W max
  • Light Control: Variable control 0 - 100%.
  • Monitor: 15 in. ~ 1600 nit, 16:9 HD LCD color w/audio
  • Safety: Low voltage output to diver
  • Connections: Front panel connections for umbilicals
  • Recorder: High definition 1 TB HDD DVR

Options

• Camera:
  • Stainless steel camera housing (UWC-330/SS)
  • PAL video format (/E)
  • Optional connectors
• Cable:
  • User-specified cable lengths:
    • Standard Lengths:
      • 330 ft.
      • 500 ft.
    • C-2304 cable (replaceable whip at dive)
• Bracket: HM-300 helmet mount
• Light: UWL-400 LED light 2,200 lux @ 1m (5,000 lumens) @ 3000 K 36 watts
• Console:
  • Smart camera controller with dive timer (6200)
  • DC option (/DC) 300W true sign wave inverter
