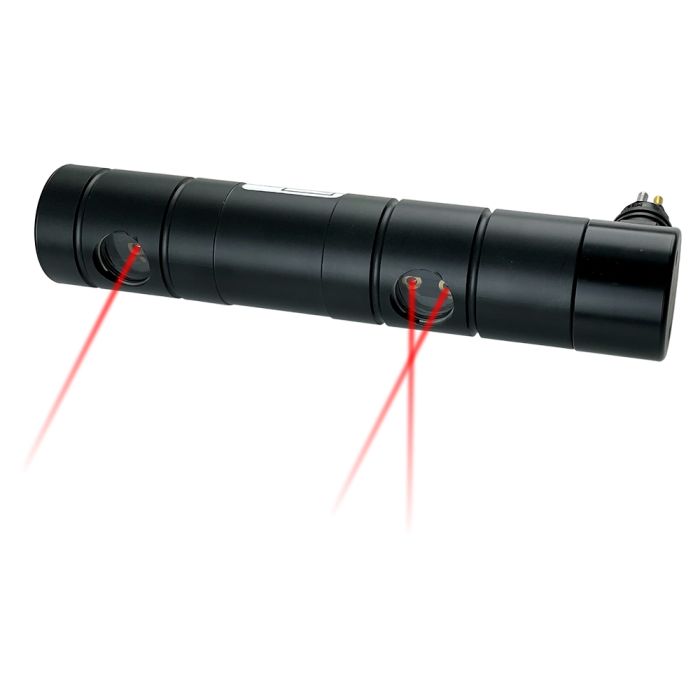

Outland Technology 100mm Parallel Laser - Red Laser with Ranging - Aluminum Housing

Features:

• 100mm Parallel Laser
• Compact size and 90° Connector
• Enclosed design eliminates accidental misalignment
• 3 Laser-design shows the size of and distance to the object

Specifications:

• Model OTI-UWL-850/AL
  • MECHANICAL:
    • Diameter: 1.5 in. (38mm)
    • Length (excluding connector): 7.55 in. (192mm)
    • Weight in Air: 0.62 lb. (0.28 kg)
    • Weight in Seawater: 2.25 oz. (0.06 kg)
    • Depth Rating: 4,000 ft. (1220 m)
    • Housing Material: Aluminum
    • Port Material Acrylic
  • ELECTRICAL:
    • Input Voltage: 5-30 VDC
    • Power: 0.24 watts / 20 mA @ 12 VDC
  • CONNECTOR:
    • Standard Connector: MCBH2M
    • Mate for Standard Connector: MCIL2F
      • 1. Ground / Common
      • 2. Power (+)
  • LASER PROPERTIES:
    • Output: 5 mW each
    • Separation: 100mm
    • Wavelength: 650nm
    • Class: IIIa
    • Note: Distance to Object: 10x distance between Dots 2 & 3C (1 m for each 100 mm between Dots 2 & 3)
  • OPTIONS:
    • 1. Green Laser Modules
    • 2. Customer Specified MC Connector
