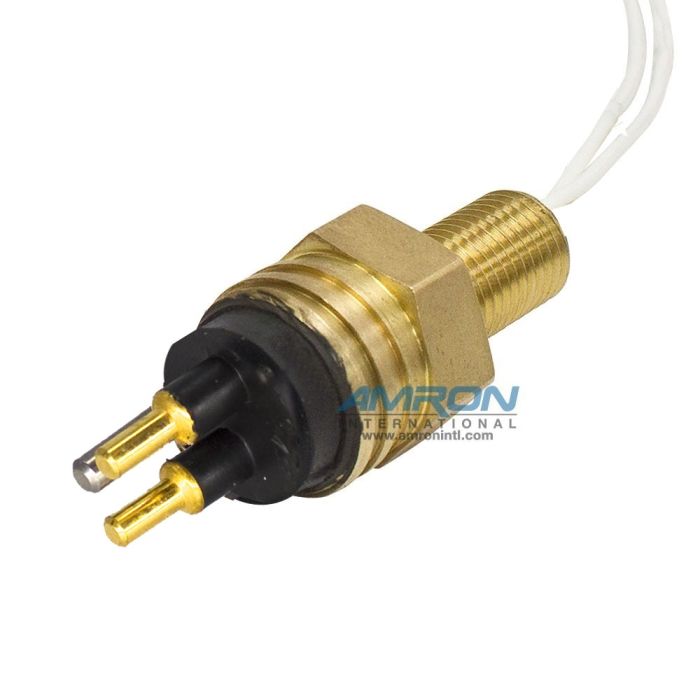

Approved Vendor Micro Wet Bulkhead Connector - 2 Pin Male

Micro Wet Series MCBH2M Male Bulkhead Connector with 2 Pins and a 13 in. long Teflon Wire Pigtail. The Micro Wet Series allows for smaller through ports in a pressure vessel and a greater density of conductors in a compact area.

DISCLAIMER NOTICE: Amron reserves the right to supply this style from multiple manufacturers. If you prefer a particular manufacturer, please let your salesperson know before ordering.

Applications:

• Underwater camera and lights (video system)
• Diver communications
• ROV systems
• Submersibles
• Towed-array cable systems
• Current meters
• Animal migration research
• Food processing equipment

Specifications:

• Molded Body: Neoprene
• Bulkhead Body: Brass
• Contacts: Brass-Gold Plated
• Guide Pins: Stainless Steel
• Bulkhead N & W: Brass
• O-Ring Material: Nitrile (Formerly Known As Buna N)
• Locking Sleeve: Polyacetal
• In-Line Cable: 2 Pin: Neoprene #18 AWG (SO Cable)
• In-Line Cable Length: 24 Inches (60cm)
• Hook-Up Wire (BH) 2 Pin: Teflon #20 AWG
• Hook-Up Wire Length: 13 Inches (30cm)
• Open Face Pressure: 10,000 PSI (Approx. 689 Bar) Optional And Needs To Be Specified Dummy Cap Recommended Above 100 PSI
• Mated Pressure: 10,000 PSI (Approx. 689 Bar)
• Voltage Rating 2 Pin: 600 VDC
• Current Rating: 6 Amps Per Contact
• Insulation Resistance: >200 Megohms @ 300 VDC
• Contact Resistance: <0.01 Ohms
• Air Mate: >1,000 Cycles
• Underwater Mate: >500
• Operating Temperature: 25° To 140°F (-4° To 60°C)
• Mounting Torque: 85 In.-lb.* In Dry Stainless 1/2” Long Female Threads
• Mates with: MCIL2F
• Dummy Connector Mate: MCDC2F
• Connector Pins: 2
• SAE Thread: 7/16-20 UNF-2A
• Socket Length 1.10 in.
• Thread Length .75 in.
• O-ring: 2-014

Note: Hex Nut with Washer Sold Separately.
