Hans Rudolph 7450 V2 Mask™ Face Mask, Adapter & Headgear

Only %1 left

SKU

11381X

As low as $139.57

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

Features

Face mask is available in five sizes to cover a wide range of face shapes.
Anatomically contoured face mask designed with a facial silicone rubber sealing flange for a leak free fit.
Integrated chin cup for stability.
Easily adjustable light weight 5-strap headgear for comfort, available in three sizes.
New quick-release strap clips for quick and simple mounting and dismounting of headgear.
Reusable mask face pieces; steam autoclavable, cold chemical, pasteurization and dishwasher safe.
Reusable NRB valves validated for high level disinfection by cold chemical.
NRB valves available in T & Y Shape in several sizes covering a full test subject range.

Specifications

Temperature Range: 5-40 °C
Humidity Range: 0-95% RH
Materials:
- Face Piece with Structural Braces: Silicone Rubber, POM
- Headgear: Polyurethane foam black, Nylon UBL gray and Nylon fabric red
- Headgear Hook: Nylon, black
- Headgear Strap Clips (4), Tri-glide: Polypropylene, black
- Vyaire Medical Mask Adapter: Silicone Rubber

Note: Do not use these masks, valves and or adapters in a life support system such as a ventilator circuit.

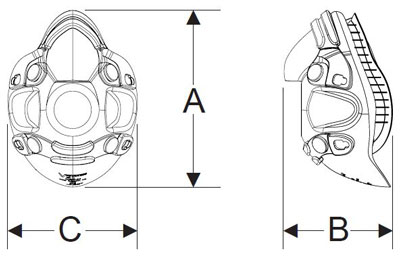

Characteristic	Mask Face Piece Sizes
Characteristic	Large (L)	Medium (M)	Small (S)	Extra Small (XS)	Petite (P)
A	5.9 in.	5.6 in.	5.2 in.	4.8 in.	4.6 in.
B	3.7 in.	3.4 in.	3.2 in.	3.1 in.	3.0 in.
C	4.2 in.	4.2 in.	4.2 in.	3.9 in.	3.9 in.
Deadspace	143 ml	125 ml	125 ml	88 ml	78 ml
Weight	128 gm	118 gm	118 gm	89 gm	83 gm
Recommended Headgear Size	L	M	M	S	S

Information

Intended Use - Environment for Use

The 7450 series face mask is a reusable, multi-patient, multi-use mask intended for use with mask adapters for connection with flow measuring instruments used in lung function testing procedures with spontaneous breathing adults (>30 kg) in hospitals and other clinical settings by individuals that have at least minimal training or instructions on the use of the mask as well as the devices to which the mask is intended to connect. Applications are for pulmonary function testing, exercise testing and respiratory research. The masks, adapters and headgear are supplied clean, non-sterile.

Service Life

Mask, mask adapter and headgear when maintained and reprocessed per these instructions are expected to stay in service for minimum of 25 disinfection or steam sterilization cycles and the headgear 25 cleaning cycles. Visual inspection of the components during reprocessing will identify any defects. If defects are identified dispose of and do not use.
