Hans Rudolph 7450 Series V2 Mask

Only %1 left

SKU

66919

As low as $70.50

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

Product Features:

Five Sizes of Face Pieces to cover a wide range of patient sizes.

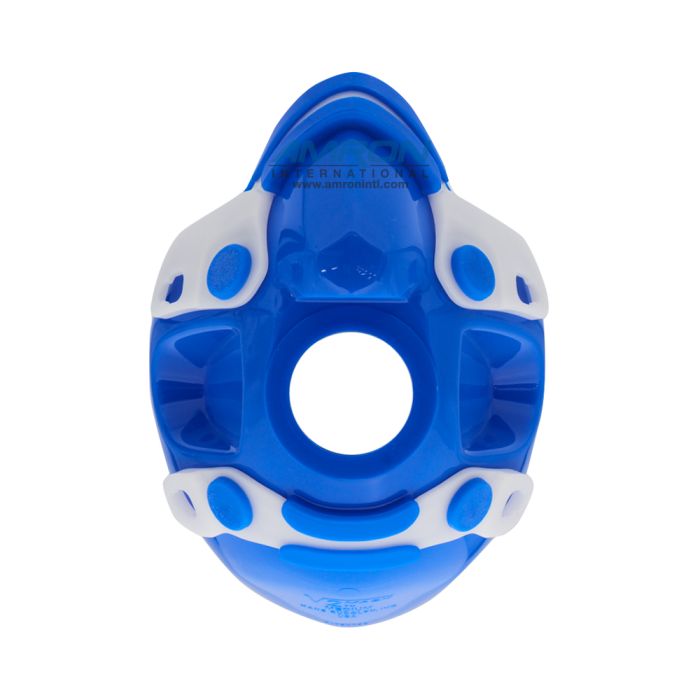

Face Piece with New Facial Sealing Flange is a single piece mask, made of dark royal blue soft Silicone Rubber.
Anatomically Contoured Face Mask design with resilient ribbed support structure for a leak free comfortable fit and integrated Chin Cup for stability.
Reusable mask face pieces; steam autoclaveable, cold chemical, pasteurization and dishwasher safe.
Reusable swivel ports validated for sterilization and high level disinfection for re-use
Custom mask Adapters designed and manufactured per your request.

Specifications:

Face Piece with Structural Braces: Silicone Rubber Blue, Polycarbonate Thermoplastic

Intended Use:

The Hans Rudolph 7450 series V2 Mask face piece is designed for use with the Hans Rudolph Two-Way Non-Rebreathing Valves (NRBV) and other mask adapters.
Designed for respiratory circuits with spontaneously breathing patients where the application requires a valve to separate the patient’s inspiratory and expiratory flows or a special connector to mate directly to a respiratory flow meter or other device.
The typical mouthpiece and nose clip are replaced by this face mask assembly and headgear.
The masks are supplied clean, non-sterile.
Typical applications is for HBOT
These mask swivels are classified as reusable and can be high level disinfected.

Environment of Use:

This mask series is for use in hospitals and other clinical settings by individuals that have at least minimal instructions or training on the use of the mask as well as the device to which the mask are intended to connect.

Mask Service Life:

The Mask is expected to stay in service for minimum of 25 disinfection or sterilization cycles or 6 months of use under normal conditions, whichever occurs first.

Operational conditions for use:

Temperature range: 5-40 C
Humidity range: 0-95% RH

Cleaning and Disinfection:

For cleaning and disinfection care be sure you fully comprehend our cleaning Data Sheet 691195.

Cautions:

Federal Law restricts this device to sale by or on the order of a physician.
Patients with facial hair, especially beards, may experience mask leakage which may require shaving the hair.
Do not use these valves in a life support system such as a ventilator circuit.

Order Numbers for 7450 V2™ Series Face Pieces & Headgears:

Ordering Part Number	Mask Face Piece Silicone Rubber	Ordering Part Number	V2™ Headgear Gray and Red Foam Tri-glide Headgear with Clips
669199	Petite (P)	N/A	N/A
669198	Extra Small (XS)	N/A	N/A
669197	Small (S)	201494	Large (use with L Mask)
669196	Medium (M)	201493	Medium (use with S & M Masks)
669195	Large (L)	201492	Small (use with XS & P Masks)

Mask Face Piece Size (For more information see photos)

Characteristic	Petite (P)	Extra Small (XS)	Small (S)	Medium (M)	Large (L)
A(inches)	4.6	4.8	5.2	5.6	5.9
B (inches)	3.0	3.1	3.2	3.4	3.7
C (inches)	3.9	3.9	4.0	4.2	4.2
Deadspace (ml)	78	88	99	125	143
Weight (gm)	83	89	100	118	128

Effective 2025, the two structural braces installed on the face masks have been changed from clear to a stronger white thermoplastic for better durability.

Features

Five Sizes of Face Pieces to cover a wide range of patient sizes.
Face Piece with New Facial Sealing Flange is a single piece mask, made of dark royal blue soft Silicone Rubber.
Anatomically Contoured Face Mask design with resilient ribbed support structure for a leak free comfortable fit and integrated Chin Cup for stability.
Reusable mask face pieces; steam autoclaveable, cold chemical, pasteurization and dishwasher safe.
Reusable swivel ports validated for sterilization and high level disinfection for re-use
Custom mask Adapters designed and manufactured per your request.

Specifications

Face Piece with Structural Braces: Silicone Rubber Blue, Polycarbonate Thermoplastic

Intended Use

The Hans Rudolph 7450 series V2 Mask face piece is designed for use with the Hans Rudolph Two-Way Non-Rebreathing Valves (NRBV) and other mask adapters.
Designed for respiratory circuits with spontaneously breathing patients where the application requires a valve to separate the patient’s inspiratory and expiratory flows or a special connector to mate directly to a respiratory flow meter or other device.
The typical mouthpiece and nose clip are replaced by this face mask assembly and headgear.
The masks are supplied clean, non-sterile.
Typical applications is for HBOT
These mask swivels are classified as reusable and can be high level disinfected.

Environment of Use

This mask series is for use in hospitals and other clinical settings by individuals that have at least minimal instructions or training on the use of the mask as well as the device to which the mask is intended to connect.

Mask Service Life

The Mask is expected to stay in service for a minimum of 25 disinfection or sterilization cycles or 6 months of use under normal conditions, whichever occurs first.

Operational conditions for use

Temperature range: 5-40 C
Humidity range: 0-95% RH

Cleaning and Disinfection

For cleaning and disinfection care, be sure you fully comprehend our cleaning Data Sheet 691195.

Cautions

Federal Law restricts this device to sale by or on the order of a physician.
Patients with facial hair, especially beards, may experience mask leakage, which may require shaving the hair.
Do not use these valves in a life support system, such as a ventilator circuit.

Order Numbers for 7450 V2™ Series Face Pieces & Headgears

Ordering Part Number	Mask Face Piece - Silicone Rubber	Ordering Part Number	V2™ Headgear - Gray and Red Foam Tri-glide Headgear with Clips
669199	Petite (P)	N/A	N/A
669198	Extra Small (XS)	N/A	N/A
669197	Small (S)	201494	Large (use with L Mask)
669196	Medium (M)	201493	Medium (use with S & M Masks)
669195	Large (L)	201492	Small (use with XS & P Masks)

Mask Face Piece Size (For more information, see photos)

Characteristic	Petite (P)	Extra Small (XS)	Small (S)	Medium (M)	Large (L)
A (inches)	4.6	4.8	5.2	5.6	5.9
B (inches)	3.0	3.1	3.2	3.4	3.7
C (inches)	3.9	3.9	4.0	4.2	4.2
Deadspace (ml)	78	88	99	125	143
Weight (gm)	83	89	100	118	128

Information

The Hans Rudolph 7450 series V2 Mask face piece is designed for use with the Hans Rudolph Two-Way Non-Rebreathing Valves (NRBV) and other mask adapters. Designed for respiratory circuits with spontaneously breathing patients where the application requires a valve to separate the patient’s inspiratory and expiratory flows or a special connector to mate directly to a respiratory flow meter or other device.

The typical mouthpiece and nose clip are replaced by this face mask assembly and headgear. The masks and valves are supplied clean, non-sterile. Typical applications are for pulmonary function testing, exercise testing and respiratory research. These mask valves are classified as reusable and can be high level disinfected.
