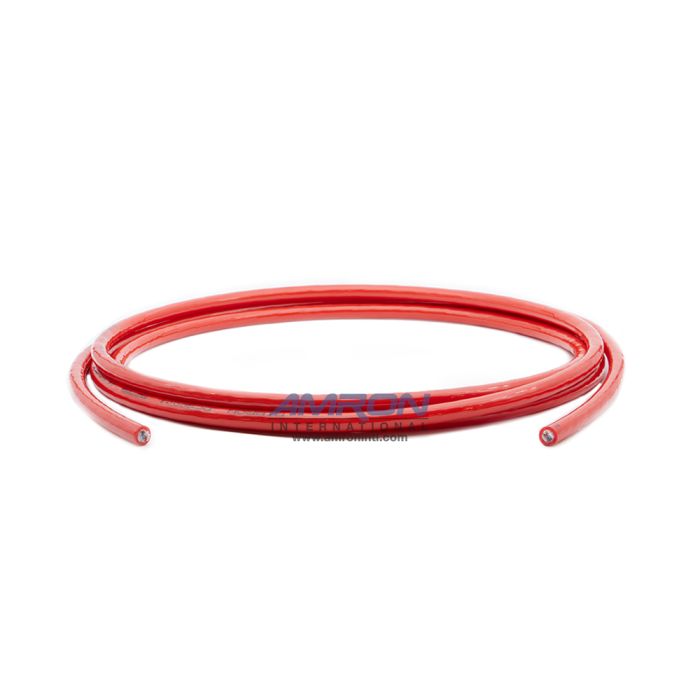

Fibron Communication Cable Unterminated - Price per Foot

Name: Fibron Communication Cable Unterminated - Price per Foot
Brand: Fibron
SKU: DCS0001
Price: 6.02 USD
Availability: InStock

SHIP NOW

SKU

DCS0001

$6.02

Communication Cable are regularly used within bell excursions and surface dive umbilicals - Price per Foot

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.
Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

More Information
	Applications Used within bell excursions and surface dive umbilicals for communication. Specifications Discounts apply when ordering standard continuous lengths of 1,650 ft./500 m Screened Pairs: 2 x 0.5 mm² Polyester Strength Braid: 500 kg minimum break strength Red Polyurethane Outer Sheath: 1.7 mm nominal thickness Outside Diameter: 11 mm Weight in Air: 120 kg/km Weight in Seawater: 22.5 kg/km Density: 1,261 kg/km Minimum Bend Radius (Static): 75 mm Minimum Bend Radius (Dynamic): 110 mm Minimum Break Strength: 4.9 kN Standard Color: Red Electrical: Conductor Resistance @ 20°C: 41.5 Ω/Km (maximum) Resistance (Core–Core): 500 MΩ/Km (minimum) Resistance (Core–Screen): 250 MΩ/Km (minimum) Operating Voltage: 500 V (maximum)
