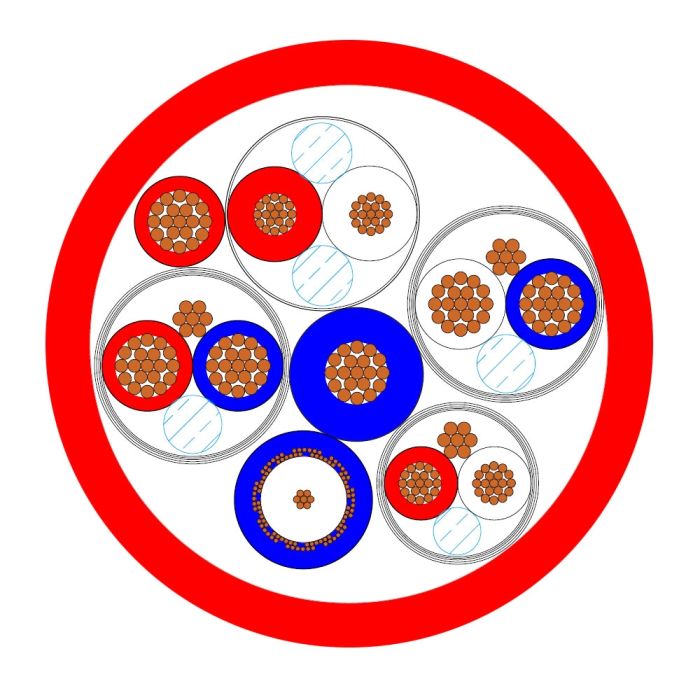

Fibron Combined Communication / Video Cable - Price per Reel

Applications:

• Used within bell excursions and surface dive umbilicals for communication and video.

Specifications:

• Standard Reel Continuous Length: 1,640 feet /500 meters (for shorter lengths, contact your sales representative at Amron to obtain pricing)
• Outside Diameter: 14 mm
• Weight in Air: 270 kg/km
• Weight in Sea Water: 111.5 kg/km
• Density: 1,750 kg/km
• Minimum Bend Radius (static): 90 mm
• Minimum Bend Radius (dynamic): 135 mm
• Minimum Break Strength: N/A
• Red Polyurethane Outer Sheath: 1.6 mm nominal thickness
• Standard Color: Red
• Electrical:
  • 1.34mm2 TP

    • Conductor resistance @ 20°C: 15.2 Ω/Km (maximum)
    • Resistance (core–core): 500 MΩ/Km (minimum)
    • Resistance (core–screen): 250 MΩ/Km (minimum)
    • Operating voltage: 500 V (maximum)
  • 0.5mm2 STP

    • Conductor resistance @ 20°C: . Ω/Km (maximum)
    • Resistance (core–core): 500 MΩ/Km (minimum)
    • Resistance (core–screen): 250 MΩ/Km (minimum)
    • Operating voltage: 500 V (maximum)
  • 1.00mm2 STP

    • Conductor resistance @ 20°C: 20.5 Ω/Km (maximum)
    • Resistance (core–core): 500 MΩ/Km (minimum)
    • Resistance (core–screen): 250 MΩ/Km (minimum)
    • Operating voltage: 500 V (maximum)
  • 100mm2 Single Core

    • Conductor resistance @ 20°C: 20.5 Ω/Km (maximum)
    • Resistance (core–core): 500 MΩ/Km (minimum)
    • Resistance (core–screen): 250 MΩ/Km (minimum)
    • Operating voltage: 500 V (maximum)
  • Mini Coax

    • Conductor resistance (inner) @ 20°C: 149.0 Ω/Km (maximum)
    • Conductor resistance (outter) @ 20°C: 365. Ω/Km (maximum)
    • Impedance: 75 Ω
