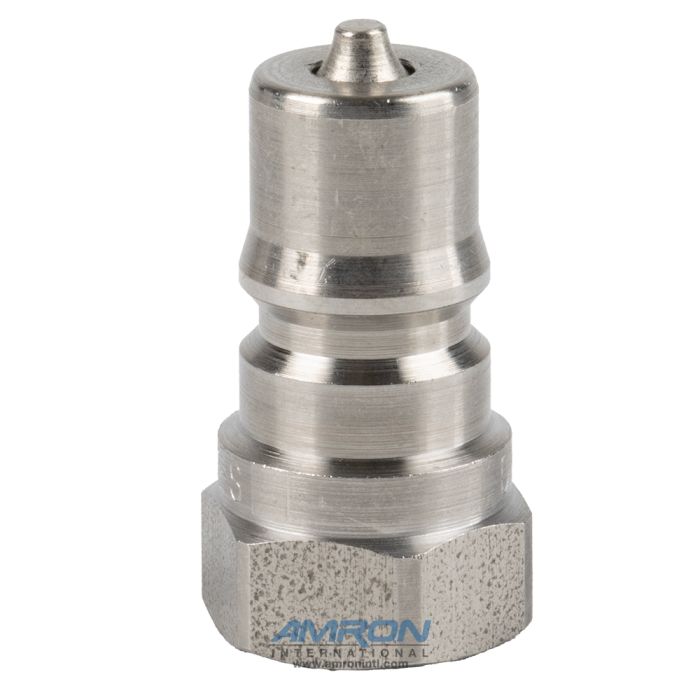

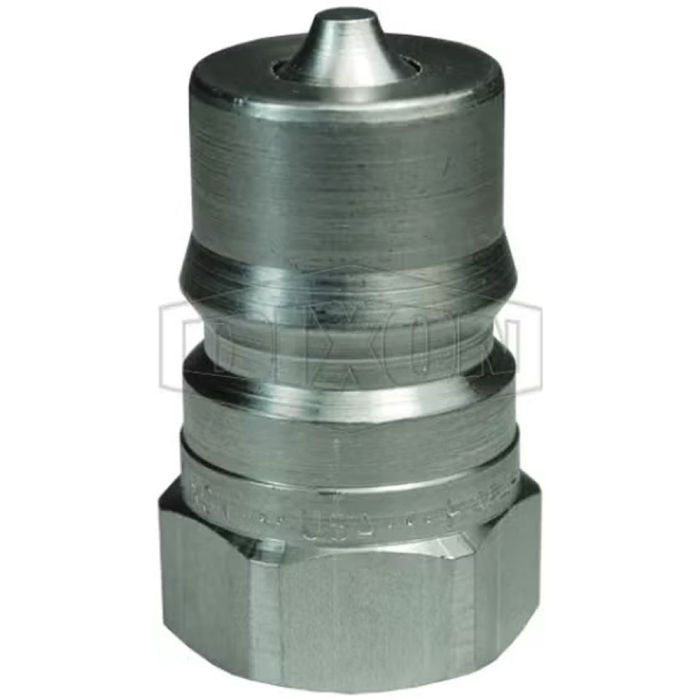

Dixon H2F2-SS - H-Series ISO-B Valved Female Plug 1/4 In. X 1/4 In. FNPT, 316 SS
SERIES H PLUG; 1/4IN BODY SIZE X 1/4IN FNPT; VALVED; 316 STAINLESS STEEL; BUNA
Restrictions / Notifications
More Information
|
Features
- Poppet style shut-off valve
- Designed to prevent fluid loss when disconnected
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life
Specifications
- Meets dimensional requirements of ISO 7241 Series B
- Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
- Maximum Operating Pressure: 3500 psi (240 bar)
- Weight: 0.088 lb.
- Break Quantity: 1
- Optional Package/Box Quantity: 1
- Material: 316 stainless steel
- Maximum OD: 0.83 in. (21.1 mm)
- Thread: Female NPTF
- Body Size: 1/4 in.
- Temperature Range: -40°F to 250°F (-40°C to 121°C)
- Burst Pressure: 33000 psi (2200 bar)
- Thread Size: 1/4 in. -18
- Length: 1.55 in. (39.4 mm)
- Hex: 3/4 in.
|
