Crouse Hinds Right Angle Penetrator 1/2 in. NP, SS Body, 4 Conductors, LP Side 12 in. 16 AWG Leads
Crouse Hinds Right Angle Penetrator; 1/2 in. NPT; SS Body; 4 Conductors; LP Side 12 in. 16 AWG Leads
Restrictions / Notifications
- Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.
- Contact us for a quote: Call (877) 462-6700 or email sales@amronintl.com.
More Information
|
Specifications:
- Molded cable on the high-pressure side
- Leads on the low-pressure side
- Penetrator Type: Right angle
- Thread Size: 1/2 in. NPT
- Threaded Body Material Low Pressure Side: Stainless steel
- Molded Body Material High Pressure Side: Neoprene
- Neoprene SOOW Cable Length: 22 in. (24 in. overall)
- Individual Leads on Low Pressure Side: 4 conductor 16 AWG
- Voltage Rating: 300V max.
Important Note: High pressure must be applied to molded body side only.

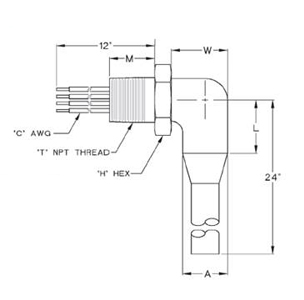

Series 41R NPT Right Angle Penetrator
|
Part
No. |
No. of
Conductors |
L
Dim. (in.) |
W
Dim. (in.) |
M
Dim. (in.) |
T
Dim. (in.) |
H
Dim. (in.) |
A
Dim. (in.) |
C
Wire( AWG) |
Max.
Current
AWG |
 |
| 41R02 |
2 |
7/8 |
1-1/8 |
1 |
1/2 |
1-1/8 |
3/4 |
14 |
18 |
| 41R03 |
3 |
7/8 |
1-1/8 |
1 |
1/2 |
1-1/8 |
3/4 |
14 |
15 |
| 41R04 |
4 |
7/8 |
1-1/8 |
1 |
1/2 |
1-1/8 |
3/4 |
16 |
8 |
| 41R06 |
6 |
1-1/4 |
1-1/4 |
1 |
3/4 |
1-7/16 |
1 |
16 |
8 |
| 41R08 |
8 |
1-1/4 |
1-1/4 |
1 |
3/4 |
1-7/16 |
1 |
18 |
8 |
| 41R10 |
10 |
1-1/2 |
1-13/16 |
1-5/16 |
1 |
1-1/2 |
1-3/8 |
18 |
3.5 |
Specifications
- Molded cable on the high-pressure side
- Leads on the low-pressure side
- Penetrator Type: Right angle
- Thread Size: 1/2 in. NPT
- Threaded Body Material Low-Pressure Side: Stainless steel
- Molded Body Material High-Pressure Side: Neoprene
- Neoprene SOOW Cable Length: 22 in. (24 in. overall)
- Individual Leads on Low-Pressure Side: 4 conductors, 16 AWG
- Voltage Rating: 300V max.
Important Note: High pressure must be applied to the molded body side only.
Series 41R NPT Right Angle Penetrator
|
Part
No. |
No. of
Conductors |
L
Dim. (in.) |
W
Dim. (in.) |
M
Dim. (in.) |
T
Dim. (in.) |
H
Dim. (in.) |
A
Dim. (in.) |
C
Wire (AWG) |
Max
Current
AWG |
|
| 41R02 |
2 |
7/8 in. |
1-1/8 in. |
1 in. |
1/2 in. |
1-1/8 in. |
3/4 in. |
14 |
18 |
| 41R03 |
3 |
7/8 in. |
1-1/8 in. |
1 in. |
1/2 in. |
1-1/8 in. |
3/4 in. |
14 |
15 |
| 41R04 |
4 |
7/8 in. |
1-1/8 in. |
1 in. |
1/2 in. |
1-1/8 in. |
3/4 in. |
16 |
8 |
| 41R06 |
6 |
1-1/4 in. |
1-1/4 in. |
1 in. |
3/4 in. |
1-7/16 in. |
1 in. |
16 |
8 |
| 41R08 |
8 |
1-1/4 in. |
1-1/4 in. |
1 in. |
3/4 in. |
1-7/16 in. |
1 in. |
18 |
8 |
| 41R10 |
10 |
1-1/2 in. |
1-13/16 in. |
1-5/16 in. |
1 in. |
1-1/2 in. |
1-3/8 in. |
18 |
3.5 |
Specifications
- No. of Conductors: 4 (see table below for dimensions)
- Molded cable on the high-pressure side
- Leads on the low-pressure side
- Penetrator Type: Right angle
- Thread Size: 1/2 in. NPT
- Threaded Body Material Low-Pressure Side: Stainless steel
- Molded Body Material High-Pressure Side: Neoprene
- Neoprene SOOW Cable Length: 22 in. (24 in. overall)
- Individual Leads on Low-Pressure Side: 4 conductors, 16 AWG
- Voltage Rating: 300V max.
Important Note: High pressure must be applied to the molded body side only.
Series 41R NPT Right Angle Penetrator
|
Part
No. |
No. of
Conductors |
L
Dim. (in.) |
W
Dim. (in.) |
M
Dim. (in.) |
T
Dim. (in.) |
H
Dim. (in.) |
A
Dim. (in.) |
C
Wire (AWG) |
Max
Current
AWG |
|
| 41R04 |
4 |
7/8 in. |
1-1/8 in. |
1 in. |
1/2 in. |
1-1/8 in. |
3/4 in. |
16 |
8 |
Specifications
- No. of Conductors: 4 (see table below for dimensions)
- Molded cable on the high-pressure side
- Leads on the low-pressure side
- Penetrator Type: Right angle
- Thread Size: 1/2 in. NPT
- Threaded Body Material Low-Pressure Side: Stainless steel
- Molded Body Material High-Pressure Side: Neoprene
- Neoprene SOOW Cable Length: 22 in. (24 in. overall)
- Individual Leads on Low-Pressure Side: 4 conductors, 16 AWG
- Voltage Rating: 300V max
IMPORTANT NOTE: High pressure must be applied to the molded body side only.
| Series 41R NPT Right Angle Penetrator |
| Part No. |
No. of Conductors |
L
Dim. (in.)
|
W
Dim. (in.)
|
M
Dim. (in.) |
T
Dim. (in.) |
H
Dim. (in.) |
A
Dim. (in.) |
C
Wire (AWG) |
Max
Current
(amps) |
| 41R04 |
4 |
7/8 in. |
1-1/8 in. |
1 in. |
1/2 in. |
1-1/8 in. |
3/4 in. |
16 |
8 |
|
What is the length of the SO cable that comes with the 41R Penetrator?
Amron orders the SO cable side of the penetrator with 22 inches of cable.
