Fibron DSLS002 - 4 Part Umbilical Material (Pneumo, Breathing, Hot Water, Communications) - Price per Foot

Name: Fibron DSLS002 - 4 Part Umbilical Material (Pneumo, Breathing, Hot Water, Communications) - Price per Foot
Brand: Fibron
SKU: DSLS002
Price: 12.77 USD
Availability: InStock

SKU

DSLS002

$12.77

Your Price for 2001:
$11.50

You Save:
10%
Your Price for 4002:
$10.22

You Save:
20%

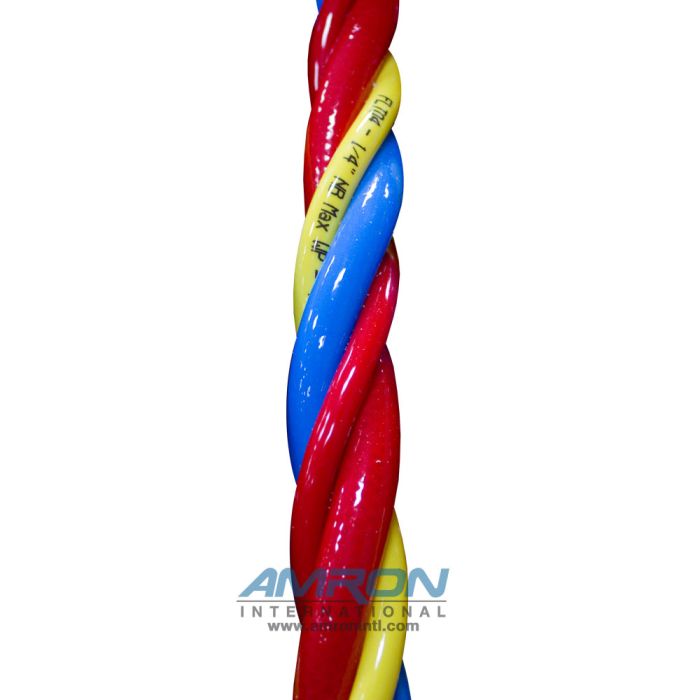

Fibron 4 Part Umbilical Material includes 1/4 Inch Pneumo Hose, 3/8 inch Breathing Air Hose, 1/2 Inch Hot Water Hose and a Communications Cable.

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Application (All come combined spiraled together): DCS0001 - Surface dive umbilicals for communication. FLT04 - Hose delivers air to measure the diver's depth underwater. FLT06 - Hose delivers air for the diver to breathe underwater. FLT08 - Hose delivers hot water to the diver's hot water suit for warmth underwater. Note: Fittings and terminations are not included Featured: Tough, kink and abrasion resistant Buoyant in sea and fresh water Clean and odor free Flexible and non-aging Specifications: 4 Part umbilical-Air, Pneumo, Hot Water and Comms/Strength Includes: DCS0001 Communication Cable Specifications: Screened Pairs: 2 x 0.5 mm² Polyester Strength Braid: 500 kg minimum break strength Red polyurethane outer sheath: 1.7 mm nominal thickness Weight in Air: 120 kg/km Weight in Sea Water: 25 kg/km O.D. mm: 11.0 mm Standard Color: Red FLT04 - 1/4 Inch Pneumo Hose Specifications: Hose Type: Fibrolite Max Working Pressure: 400 PSI / 27.5 bar Minimum Burst Pressure: 1600 PSI / 110 bar Nominal Bore: 1/4 inch / 6.3 mm Outside Diameter: 11.5 mm Weight in Air: 82 kg/km Weight in Sea Water: -25 kg/km Minimum Bend Radius (Static): 75 mm Minimum Bend Radius (Dynamic): 115 mm Tensile Rating: 100 kg Standard Color: Yellow FLT06 - 3/8 Inch Breathing Air Hose Specifications: Hose Type: Fibrolite Max Working Pressure: 500 PSI / 35 bar Minimum Burst Pressure: 2000 PSI / 140 bar Nominal Bore: 3/8 inch / 9.5 mm Outside Diameter: 17.5 mm Weight in Air: 193 kg/km Weight in Sea Water: -53 kg/km Minimum Bend Radius (Static): 105 mm Minimum Bend Radius (Dynamic): 1160 mm Tensile Rating: 100 kg Standard Color: Blue FLT08 - 1/2 Inch Hot Water Hose Specifications: Hose Type: Fibrolite Max Working Pressure: 400 PSI / 27.5 bar Minimum Burst Pressure: 1600 PSI / 110 bar Nominal Bore: 1/2 inch / 12/.5 mm Outside Diameter: 18.5 mm Weight in Air: 167 kg/km Weight in Sea Water: -109 kg/km Minimum Bend Radius (Static): 120 mm Minimum Bend Radius (Dynamic): 185 mm Tensile Rating: 100 kg Standard Color: Red Note: Umbilical lengths are subject to +/- 2% over/under to the quoted length. Note: Canadian Standards Association code CSA-275.2-04 states that the diver’s lifeline shall have a breaking strength of no less than 2000 lbs. This umbilical does not meet that standard. Please contact your Amron sales representative for an alternate spiral umbilical that can meet this standard. Note: Australian Standards AS2299.1 3.13.6 requires that the minimum breaking strain of any potential load bearing component of a diver’s umbilical or lifeline shall be at least 6kn (600kg). This umbilical does not meet that standard. Please contact your Amron sales representative for an alternate spiral umbilical that can meet this standard. Amron sells many different diving umbilical configurations. If you don’t see the configuration you need, please call our award winning sales staff at (760) 208-6500 or email us at sales@amronintl.com to help build your diving umbilical, get a quote, and place your order today!

Information

Fibron 4 Part Umbilical Material includes 1/4 Inch Pneumo Hose, 3/8 inch Breathing Air Hose, 1/2 inch Hot Water Hose and a Communications Cable.

Please see Product Ordering Information below.

The unique materials and cabled 'ropelike' construction combine to produce the most flexible, neutrally buoyant umbilicals available today. With no need to tape, much reduced repairs and longer life.

Unlike rubber or PVC compounds used in some commercial diving hoses, Fibron uses a particularly clean unfilled polymer containing no plasticizers or potentially harmful additives. This ensures breathing air gas quality is maintained under all conditions from -40°C to 60°C. Fibron diving umbilical hoses will not deteriorate significantly with age and remain flexible and abrasion resistant, thereby easily outlasting rubber and PVC type hoses.

Diving umbilicals in long, continuous lengths can be delivered. Standard lengths are 305m (1,000 ft.). Longer lengths are available upon request. The rugged abrasion resistant construction of Fibron diving umbilicals is ideal for surface supplied diving and can be incorporated with various electrical cables for compact, flexible diving umbilicals that are neutral or float in seawater.

Spiraling of diving umbilicals produces a unified flexible structure that allows components to realign when flexed, minimizing stresses induced by bending. No individual component is always on the inside or outside of the bend. This ensures the diving umbilicals are neither compressed nor stretched.

Note: Fittings and terminations are not included

Note: Umbilical lengths are subject to +/- 2% over/under to the quoted length.

Note: Canadian Standards Association code CSA-275.2-04 states that the diver’s lifeline shall have a breaking strength of no less than 2000 lbs. This umbilical does not meet that standard. Please contact your Amron sales representative for an alternate spiral umbilical that can meet this standard.

Note: Australian Standards AS2299.1 3.13.6 requires that the minimum breaking strain of any potential load bearing component of a diver’s umbilical or lifeline shall be at least 6kn (600kg). This umbilical does not meet that standard. Please contact your Amron sales representative for an alternate spiral umbilical that can meet this standard.

Amron sells many different diving umbilical configurations. If you don’t see the configuration you need, please call our award winning sales staff at (760) 208-6500 or email us at sales@amronintl.com to help build your diving umbilical, get a quote, and place your order today!

Resources

FAQ's

All cables are sold with their connection?

No. The umbilical material pages listed on our website come un-terminated. Amron does list terminated umbilicals in limited configurations in the "Umbilicals" category of our web site. Also, if you wish to receive a price quote for terminated umbilicals, please request a price quote at https://www.amronintl.com/request-for-quote.

Hi,What is the hose made of? Thanks

Fibrolite Gas and hot water hoses : - Polyether based polyurethane liner - food grade. - 1 layer (all sizes) braided (open weave) polyester fibre reinforcement - Overall optimum polyurethane extruded cover
