Fibron AMR-DSL0092 - 4 Part Umbilical Material (Pneumo, Breathing, Communications Cable, Video/Light) - Price per Foot

Note: Fittings and terminations are not included

Application (All members are spiraled together):

• DCS0001 - Surface dive umbilicals for communication.
• FLT04 - Hose delivers air to measure the diver's depth underwater.
• FLT06 - Hose delivers air for the diver to breathe underwater.
• C-2300C - Outland Video Cable



Note: Fittings and terminations are not included

Featured:

• Tough, kink and abrasion resistant
• Buoyant in sea and fresh water
• Clean and odor free
• Flexible and non-aging

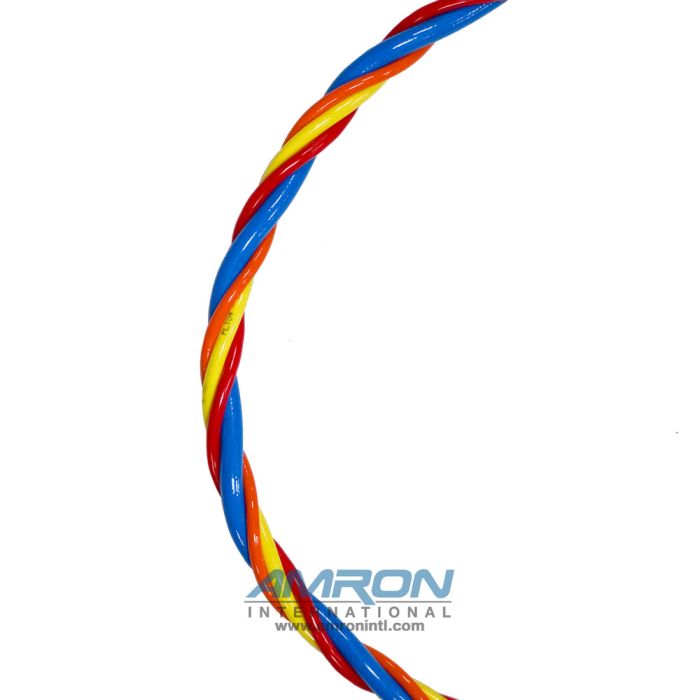

4 Part umbilical-Air, Pneumo, Comms/Strength and Video/Light Includes:

DCS0001 Communication Cable Specifications:

• Screened Pairs: 2 x 0.5 mm²
• Polyester Strength Braid: 500 kg minimum break strength
• Red polyurethane outer sheath: 1.7 mm nominal thickness
• Weight in Air: 120 kg/km
• Weight in Sea Water: 25 kg/km
• O.D. mm: 11.0 mm
• Standard Color: Red



FLT04 - 1/4 Inch Pneumo Hose Specifications:

• Hose Type: Fibrolite
• Max Working Pressure: 400 PSI / 27.5 bar
• Minimum Burst Pressure: 1600 PSI / 110 bar
• Nominal Bore: 1/4 inch / 6.3 mm
• Outside Diameter: 11.5 mm
• Weight in Air: 82 kg/km
• Weight in Sea Water: -25 kg/km
• Minimum Bend Radius (Static): 75 mm
• Minimum Bend Radius (Dynamic): 115 mm
• Tensile Rating: 100 kg
• Standard Color: Yellow



FLT06 - 3/8 Inch Breathing Air Hose Specifications:

• Hose Type: Fibrolite
• Max Working Pressure: 500 PSI / 35 bar
• Minimum Burst Pressure: 2000 PSI / 140 bar
• Nominal Bore: 3/8 inch / 9.5 mm
• Outside Diameter: 17.5 mm
• Weight in Air: 193 kg/km
• Weight in Sea Water: -53 kg/km
• Minimum Bend Radius (Static): 105 mm
• Minimum Bend Radius (Dynamic): 1160 mm
• Tensile Rating: 100 kg
• Standard Color: Blue



C-2300C - Outland Video Cable Specifications:

• Small, rugged, “Orange cable”.
• Replaces the C-1500, C-2000, C-2300 and C5500 cables.
• Braided Kevlar strength member (1200 lbs)
• Lengths to 3000 ft.
• Material: Orange Polyurethane jacket.
• Temp. rating -40 to +90C.
• Diameter .380 inch
• 38 lbs.(17.5 kg) per 500 ft.
• Conductors: 16 #22 awg and 1 mini RG-59 coax.
• 300 volt rated conductors.

Note: Umbilical lengths are subject to +/- 2% over/under to the quoted length.

Note: Canadian Standards Association code CSA-275.2-04 states that the diver’s lifeline shall have a breaking strength of no less than 2000 lbs. This umbilical does not meet that standard. Please contact your Amron sales representative for an alternate spiral umbilical that can meet this standard.

Note: Australian Standards AS2299.1 3.13.6 requires that the minimum breaking strain of any potential load bearing component of a diver’s umbilical or lifeline shall be at least 6kn (600kg). This umbilical does not meet that standard. Please contact your Amron sales representative for an alternate spiral umbilical that can meet this standard.

Amron sells many different diving umbilical configurations. If you don’t see the configuration you need, please call our award winning sales staff at (760) 208-6500 or email us at sales@amronintl.com to help build your diving umbilical, get a quote, and place your order today!
