Fibron DSLS3CA - 3 Part Canadian/Australian Special Umbilical Material - Price per Foot

Note: Canadian Standards Association code CSA-275.2-04 states that the diver’s lifeline shall have a breaking strength of no less than 2000 lbs. This umbilical meets that standard.

Note: Australian Standards AS2299.1 3.13.6 requires that the minimum breaking strength of any potential load bearing component of a diver’s umbilical or lifeline shall be at least 6kn (600kg). This umbilical meets that standard.

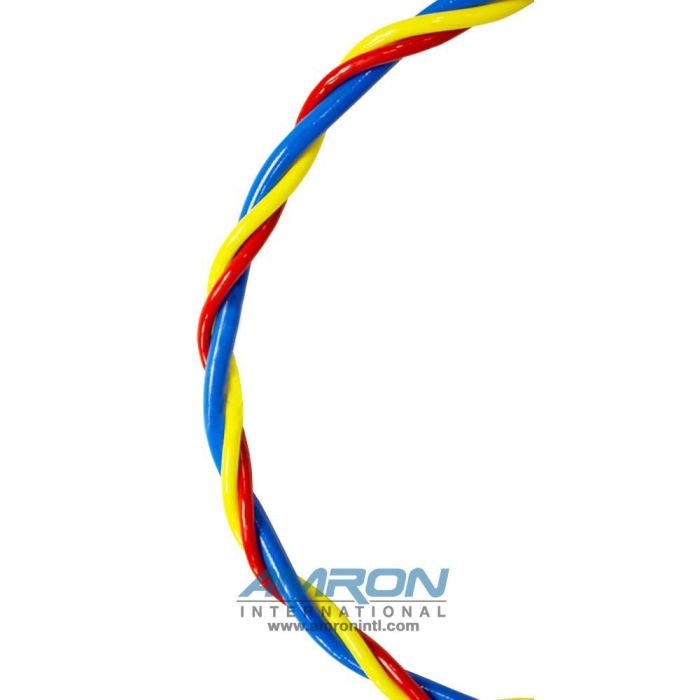

Application (All members are spiraled together):

• DC0671 - Surface dive umbilicals for communication.
• FBL04P - Pneumo hose
• FBL06G - Hose delivers gas for the diver to breathe underwater.

Note: Fittings and terminations are not included

Featured:

• Fibrolite hoses with optimized outer covers for air end use – for standard arduous worksites requiring normal abrasion.
• High kink, abrasion and fatigue resistance
• Custom-built and extremely flexible
• Lightweight with balanced load distribution
• Rope-like construction for easy handling and storage
• Inherent strength braid in communications cable - no need for a dedicated rope
• Color coding for different services

3 Part umbilical-Air, Pneumo and Comms/Strength Includes:

DC0671 Reinforced Two Pair Communication Cable Specifications:

• Two each individually screen 0.5 mm² plain copper twisted pairs
• Screens comprise polyester/aluminium laminate tape and tinned copper drain wire
• Fiber filler element
• Vectran fiber braid
• Solid filled polyurethane sheath with 1.7 mm nominal thickness
• Standard Color: Red

FBL04P - 1/4 Inch NB Fibroline Pneumo Hose Specifications:

• Hose Type: Fibrolite
• Max Working Pressure: 500 PSI / 35 bar
• Minimum Burst Pressure: 2500 PSI / 172 bar
• Nominal Bore: 1/4 inch / 6.35 mm
• Outside Diameter: 12.5 mm
• Minimum Bend Radius (Operational): 82 mm
• Weight in Air: 101 kg/km
• Weight in Sea Water: -25 kg/km
• Standard Color: Yellow

FBL06G - 3/8 Inch NB Fibroline Gas Hose Specifications:

• Hose Type: Fibrolite
• Max Working Pressure: 500 PSI / 35 bar
• Minimum Burst Pressure: 4000 PSI / 276 bar
• Nominal Bore: 3/8 inch / 9.53 mm
• Outside Diameter: 18.5 mm
• Minimum Bend Radius (Operational): 121 mm
• Weight in Air: 227 kg/km
• Weight in Sea Water: -49 kg/km
• Standard Color: Blue

Note: Umbilical lengths are subject to +/- 2% over/under to the quoted length.
