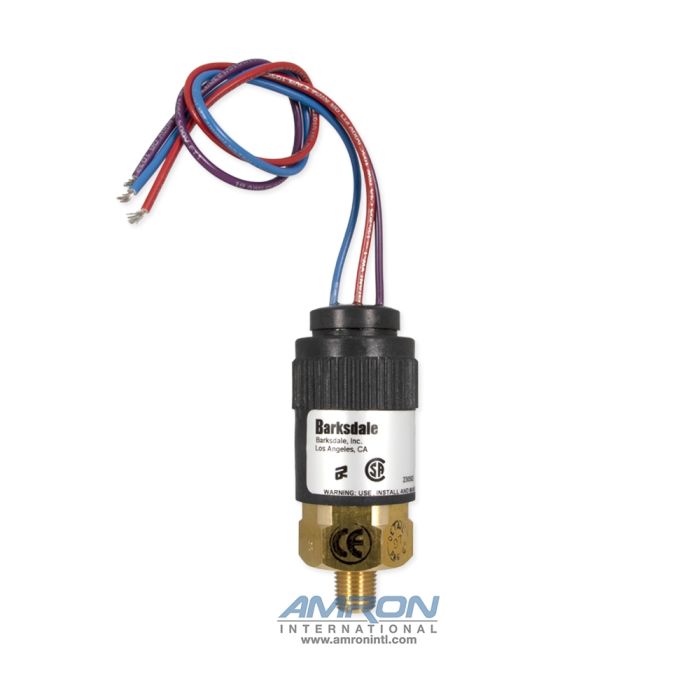

Barksdale Compact Pressure Switch - 1,450 to 4,400 PSI

SKU
96201-BB3
$140.00
Eligible for Free Shipping Over $125
Barksdale's Compact Pressure Switch - 1,450 to 4,400 PSI 96201-BB3 offers a durable and versatile solution to your pressure control problems in a compact, economical package. A wide range of factory options is available in plastic, brass or stainless steel, allowing the switch to be custom configured to the exact needs of your application. With the addition of an optional conduit connector, the switch becomes watertight and bears a NEMA 4 rating. The addition of optional DIN electrical connector allows for ease of installation and maintenance. Designed to control pressures from vacuum up to 7500 psi, the Series 96201 Pressure Switches are an outstanding choice to meet your demanding industrial applications.

Restrictions / Notifications

  • Non-Returnable/Non-Cancelable
    This item cannot be canceled or returned once an order has been placed.
  • CA PROP65
    Warning: Cancer and Reproductive Harm www.p65warnings.ca.gov
More Information

Features:

  • Compact size.
  • Extremely versatile.
  • Low & high pressures including vacuum.
  • Optional DIN and conduit connectors.
  • NEMA 1 & 4; IP65.
  • Single pole double throw snap action switching.
  • Factory preset or field adjustable.

Applications:

  • Pump & Compressor monitoring
  • Air proving in HVAC systems
  • Engine monitoring
  • Machine tools
  • Hydraulic power units
  • Mobile hydraulics
  • Medical equipment
  • Irrigation systems
  • General industrial applications

Specifications:

  • Accuracy: ± 2% of full range
  • Switch Type: SPDT snap action; single circuit
  • Rating: 5 Amp @ 125/250 VAC (Class BB microswitch - standard)
  • Wetted Parts:
    • Process Fitting: Brass (standard)
    • O-Ring Seals & Diaphragms: Buna-N (standard)
    • Piston (96201 models): Stainless steel; Tefl on back-up ring
  • Electrical Connection: 12 in. free leads, #18 AWG
  • Enclosure Ratings: NEMA 1 (plastic - standard)
  • Pressure Connection: 1/4 in. NPT male (standard)
  • Approvals:
    • UL: UL recognized component (UR); With optional conduit connector (-T4 or -T5 option) becomes UL listed. UL File No. E42816.
    • CSA: CSA #LR22354
  • Temperature: -40°F to +165°F (-40°C to +74°C)
  • Adjustment Capability: Field adjustable via an external adjustment sleeve.
  • Pressure Setpoint Adjustment:
    • Secure hex body with open-end wrench; hand turn adjustment sleeve:
      • Clockwise (counterclockwise for vacuum models) to increase.
      • Counterclockwise (clockwise for vacuum models) to decrease set point.
  • Weight: 3 lbs.

Adjustable Range:

  • Decreasing Minimum: 1,450 PSI (105 Bar)
  • Decreasing Maximum: 3,900 PSI (265 Bar)
  • Increasing Minimum: 1,650 PSI (112 Bar)
  • Increasing Maximum: 4,400 PSI (300 Bar)
  • Approximate Deadband: 100 - 750 PSI (6.90 - 51.72 Bar)
  • Proof Pressure: 7,000 PSI (476 Bar)
Barksdale's Compact Pressure Switch - 1,450 to 4,400 PSI 96201-BB3 offers a durable and versatile solution to your pressure control problems in a compact, economical package. A wide range of factory options is available in plastic, brass or stainless steel, allowing the switch to be custom configured to the exact needs of your application. With the addition of an optional conduit connector, the switch becomes watertight and bears a NEMA 4 rating. The addition of optional DIN electrical connector allows for ease of installation and maintenance. Designed to control pressures from vacuum up to 7500 psi, the Series 96201 Pressure Switches are an outstanding choice to meet your demanding industrial applications.
