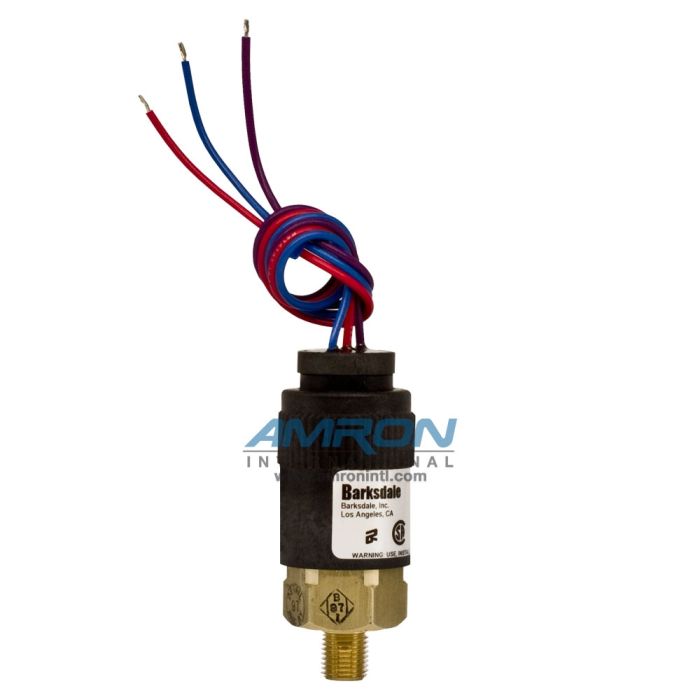

Barksdale Pressure Switch 96211-BB
The Barksdale 96211 Series Pressure Switches offer a durable and versatile solution to your pressure control problems in a compact, economical package. A wide range of factory options is available in plastic, brass or stainless steel, allowing the switch to be custom configured to the exact needs of your application. With the addition of an optional conduit connector, the switch becomes watertight and bears a NEMA 4 rating. The addition of optional DIN electrical connector allows for ease of installation and maintenance.
Restrictions / Notifications
Non-Returnable/Non-Cancelable
More Information
Pressure Switch Ordering Chart
Adjustable Range
Approx. Deadband (Actuation Value) PSI (Bar)
Proof Pressure PSI (Bar)
Decreasing - PSI (Bar) Min.
Decreasing - PSI (Bar) Max.
Increasing - PSI (Bar) Min.
Increasing - PSI (Bar) Max.
96221-BB1
1 in. Hg
28 in. Hg
6 in. Hg
30 in. Hg
.5-8 in. Hg
30 (2) in. Hg
Vacuum
96211-BB1
2.5 (.2)
12.8 (.9)
3 (.2)
15 (1)
.3-3 (.02-.21)
1000 (68)
Low Pressure Diaphragms
96211-BB2
5 (.3)
31 (2)
6 (.4)
35 (2.4)
.5-6 (.03-.41)
1000 (68)
96211-BB3
8.5 (.6)
44 (3)
10 (.6)
50 (3.4)
.5-8 (.03-.55)
1000 (68)
96211-BB4
22.5 (1.5)
112 (8)
25 (1.8)
125 (8.5)
1-15 (.07-1.03)
1000 (68)
96211-BB5
70 (5)
220 (15)
80 (5.5)
250 (175)
5-40 (.34-2.76)
1000 (68)
96211-BB6
110 (7)
440 (30)
130 (9)
500 (34)
10-75 (.69-5.17)
1000 (68)
96201-BB1
190 (13)
450 (31)
250 (17)
600 (41)
30-150 (2.07-10.35)
7000 (476)
High Pressure Piston
96201-BB2
360 (24)
1450 (105)
430 (29)
1700 (116)
40-400 (2.76-27.59)
7000 (476)
96201-BB3
1450 (105)
3900 (265)
1650 (112)
44000 (300)
100-750 (6.90-51.72)
7000 (476)
96201-BB4
3650 (248)
6700 (456)
4000 (272)
7500 (510)
2000-1000 (13.79-68.96)
12000 (816)
96201-BB5
300 (20)
2500 (170)
380 (26)
3000 (200)
80-500 (5.52-34.48)
7000 (476)
-CC
10A @ 125/250VAC Limit Switch (Replace -BB with -CC)
-T4
1/2 In. NPT male conduit connector with free leads
Modification
Specifications
Accuracy: ± 2% of full range
Switch:
Type: SPDT snap action; single circuit
Rating: 5 Amp @ 125/250 VAC (Class BB microswitch - standard)
10 Amp @ 125/250 VAC (Class CC microswitch)
5 Amp @ 30 VDC (Class BB and CC microswitches)
Wetted Parts:
Process Fitting: Brass (standard); 416 stainless steel (optional)
O-Ring Seals & Diaphragms: Buna-N (standard)
Piston (96201 models): Stainless steel; Teflon back-up ring
Electrical Connection: 12 in. free leads, #18 AWG
Enclosure Ratings:
NEMA 1 (plastic - standard)
NEMA 4 (when ordered with -T4 or -T5 options)
IP65 (when ordered with T2 DIN connection option
Pressure Connection: 1/4 in. NPT male (standard)
Approvals:
UL: UL recognized component (UR); With optional conduit connector (-T4 or -T5 option) becomes UL listed. UL File No. E42816.
CSA: CSA #LR22354
Temperature Range:
Series 96201: -40° to +165°F (-40° to +74°C)
Series 96211: -20° to +165°F (-29° to +74°C)
Series 96221: 0° to +165°F (-18° to +74°C)
Adjustment Capability:
Models L96201, L96211, and L96221 are factory set and permanently locked.
Models 96201, 96211, and 96221 are field adjustable via an external adjustment sleeve.
Pressure Setpoint Adjustment:
Secure hex body with an open-end wrench; hand turn adjustment sleeve.
Clockwise (counterclockwise for vacuum models) to increase.
Counterclockwise (clockwise for vacuum models) to decrease set point.
Shipping Weight: Approximate 0.95 lbs.
Features
Compact size
Low & high pressures including vacuum
Extremely versatile
Optional DIN and conduit connectors
NEMA 1 & 4; IP65
Single pole double throw snap action switching
Factory preset or field adjustable
Applications
Pump & compressor monitoring
Air proving in HVAC systems
Engine monitoring
Machine tools
Hydraulic power units
Mobile hydraulics
Medical equipment
Irrigation systems
General industrial applications
The Barksdale 96211 Series Pressure Switches offer a durable and versatile solution to your pressure control problems in a compact, economical package. A wide range of factory options is available in plastic, brass or stainless steel, allowing the switch to be custom configured to the exact needs of your application. With the addition of an optional conduit connector, the switch becomes watertight and bears a NEMA 4 rating. The addition of optional DIN electrical connector allows for ease of installation and maintenance.
