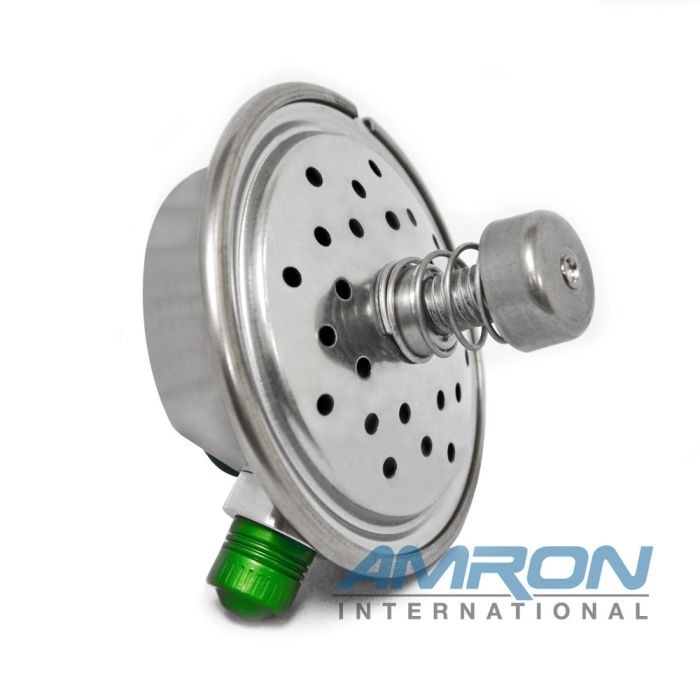

AVOX Demand Regulator

• 801238 Original Inhalator Exhaust Regulator Assembly
• Avox Pressur-Vak II BIBS Mask Exhaust Regulator Assembly

• Case Assembly; includes C-2, 6, 7, 8* - P/N: 800956-01

• Diaphragm, C-3 - P/N: 26004-01

• Cover, C-4 - P/N: 801276-00

• Clamp, C-5 - P/N: 26010-01

• Case Assembly, Cover, and Clamp: 316 stainless steel
• Diaphragm: Neoprene and natural rubber blend
• Valve Stem and Spring: 316 stainless steel
• Valve Clamp and Bearing Spring: 302 stainless steel

*Note: The Demand Regulator Valve Assembly C-6, 7, 8 are not available as spare parts. If these items become damaged, you must purchase the 800956-01 Regulator Case Assembly.

WARNING: Please follow instructions provided in the user manual accompanying this product before replacing any components. General inspection of this equipment should be performed before and after each extended dive program, especially diaphragms, for wear, rips, tears or punctures. Replace diaphragm annually or more often as required.

CAUTION: Any service or overhaul performed on this equipment shall be done only by those facilitates experienced in, or by personnel knowledgeable in, oxygen equipment. All procedures shall be performed in an area free of oil, grease, flammable solvents or other combustible materials. Such materials, as well as dust, lint and fine metal filings are all potential combustibles, which might, when exposed to oxygen under pressure, ignite and result in explosion and/or fire. Specifications of materials for oxygen service is the user’s responsibility. Please consult an expert.
