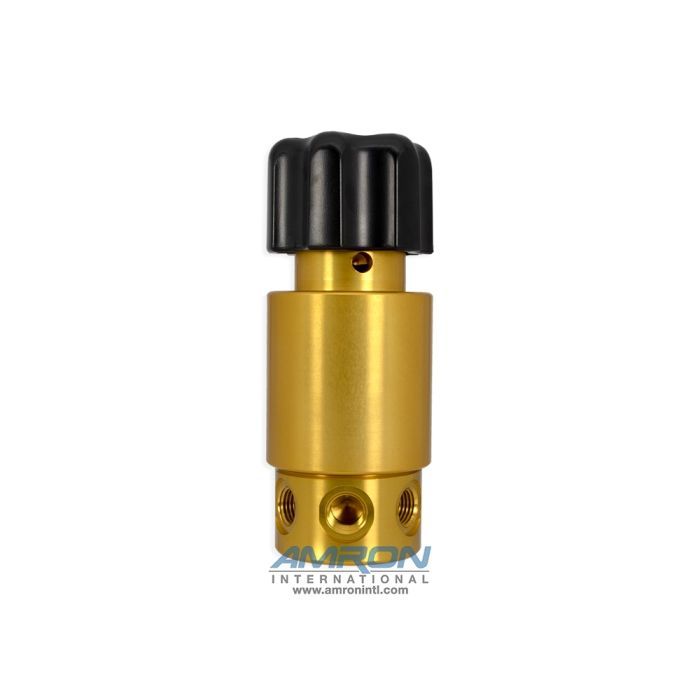

Aqua Environment Hand/Spring Loaded Reducing Regulator (0 to 5000 PSI)

Name: Aqua Environment Hand/Spring Loaded Reducing Regulator (0 to 5000 PSI)
Brand: Aqua Environment
SKU: 415-5000
Price: 264.00 USD
Availability: InStock

SHIP NOW

SKU

415-5000

List Price: $327.00

$264.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Specifications Series Designation: 415 Series Type: Reducing regulator PSI Out: 0 to 5000 psi Method of Operation: Hand/Spring loaded Maximum Rated Pressure: 6,000 PSI Outlet Pressure Range: 50-5,000 PSI Outlet Pressure Rating: 6,000 PSI Inlet Port Size: (2 ea.) 1/4 in. FNPT (one gauge, one inlet) Outlet Port Size: (2 ea.) 1/4 in. FNPT (one gauge, one outlet) Flow Coefficient (Cv): 0.06 (equals 0.07 in. orifice) Outlet Pressure Variations with Inlet Pressure Variations: 70 PSI rise/1,000 PSI inlet drop Leakage: Bubble tight Weight: 1.57 lb. / 710 g Overall Length: 5.5 in. Round Diameter: 2.25 in. Minimum Temperature: -15 ºF / -26 ºC Body Material: Anodized aluminum Internal Materials: Anodized aluminum, brass and stainless Seal Materials: Kel-F and FKM

Information

Aqua Environment's Hand/Spring Loaded Reducing Regulator with 1/4 in. FNPT Fittings (0 to 5000 PSI out) 415-5000 is a piston type, hand loaded regulator. It uses an unbalanced poppet design for ruggedness and simplicity. There is a small variation of control pressure with changing inlet pressure, as noted in the specifications. A 30 micron filter in the poppet cartridge helps prevent damage by contaminants.
