Amron Low Air Pressure Alarm System

Only %1 left
SKU
8206-X
As low as $564.00
Eligible for Free Shipping Over $125
Add to Wish List

Restrictions / Notifications

  • Non-Returnable/Non-Cancelable
    This item cannot be canceled or returned once an order has been placed.
main product photo
More Information
Specifications
  • Power: 9 volt alkaline battery
  • Approx Battery Life: 40 hours
  • Male #4 JIC input connection
  • Housing: Die cast aluminum, epoxy powder coated with black silk-screened graphics
  • Dimensions: 7.4 in. H x 4.7 in. W x 2.2 in. D
  • Weight: 2 lb. 8 oz.
  • Accuracy of pressure sensor: ± 2% of full range
  • Note: Trip points are field adjustable.



Order Information
(X) Range Code Trip Point Ranges (Decreasing) Approx. Actuation Value Maximum Pressure (PSI) Alarm Set Pressure (PSI)
  Min/PSI Max/PSI
A 2.5 12.8 .5 - 2.2 1000 TBD by Customer
B 5 31 1.0-4.0 1000 TBD by Customer
C 8.5 44 1.5-6.0 1000 TBD by Customer
D ‡ 22.5 112 2.5-13 1000 100
E 70.0 220 10- 30 1000 200
F 110 440 20- 60 1000 TBD by Customer
G 190 450 60- 150 4500* TBD by Customer
H 360 1450 70- 250 4500* TBD by Customer
I 1450 3900 200- 500 4500* TBD by Customer
J** 3650 6700 350- 800 12000 TBD by Customer
K (vacuum) 1 in. HG 28 in. HG 1-6 in. HG 30 TBD by Customer



* Max. pressures to 7000 psi remote versions only.
** Available in remote version only.
‡ Standard range in stock - “D” - factory set trip point 100 psi.
TBD: To be determined by customer



Please contact your Amron Sales Representative for availability and pricing on the remote low air pressure sensing switch version of these alarms.
Information

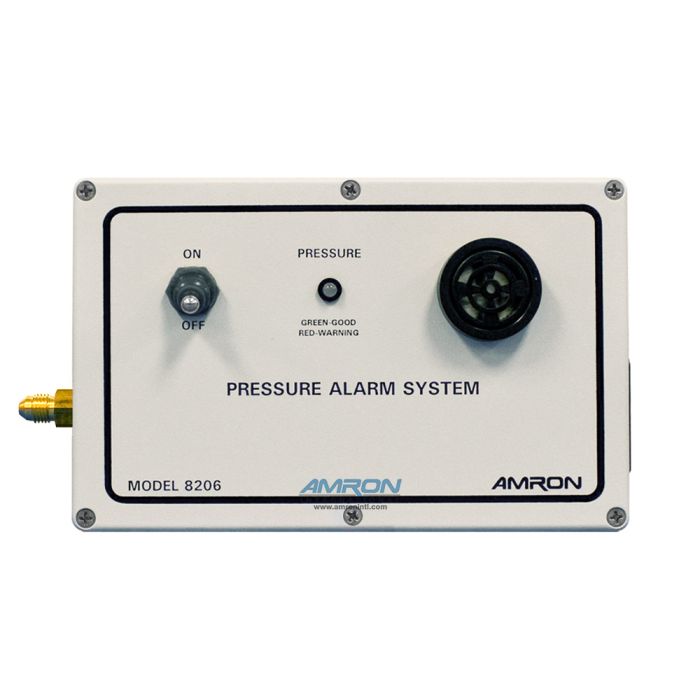

Amron International's Low Air Pressure Alarm System is designed for monitoring the output of an air compressor or air storage bank and alerts the tender or dive supervisor of a decrease in air pressure to the commercial diver. The Low Air Pressure Alarm System is a self-contained modular unit which, when connected to an air pressure source, will sound an alarm when the air pressure decreases below the set point.



Both a visual and audio indication is provided. A two-color LED on the front panel indicates green when the air pressure is "normal" or above the set point, and changes to red when the air pressure drops below the pre-set pressure level. At the point at which the air pressure drops below the set point, an audio alarm with a pulsing tone of 2900 HZ, at a level of 90 dB (A) @ 2 in. is also activated.
