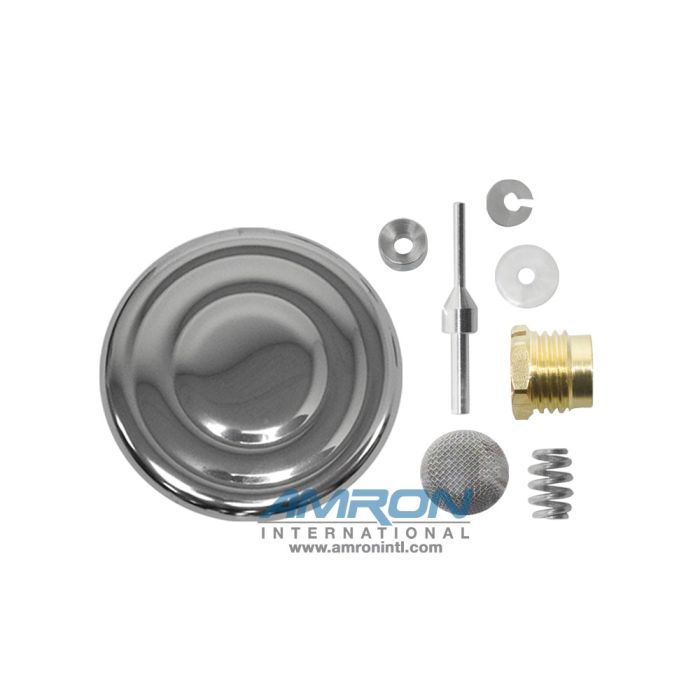

TESCOM 389-6892 Regulator Repair Kit

WARNING: The parts in this kit must be lubricated and installed following the operation and service manual.

The following parts are subject to replacement under normal usages, and may require replacement on an annual basis.

• (1) Diaphragm - P/N: 43122
• (1) Stem, Valve - P/N: 6489-6
• (1) Seat, Valve, CTFE - P/N: 6490
• (1) Retainer, Seat - P/N: 6491-1
• (1) Spring, 0.23, 0.36, 65, SST (45327) - P/N: TES-6495
• (1) Filter, .44 OD X .25 "D" 316 SST 43 Micron - P/N: 8203
• (1) Sleeve, Friction, Inner, CTFE - P/N: 8263
• (1) Sleeve, Friction Outer - P/N: 8265-6

CAUTION: This product is cleaned in accordance with the intermediate level of ASTM-G93 and CGA-4.1 (The intermediate level assures removal of visible particles and combustible residues). System designers must verify the compatibility of the materials used in this product before installation and operation. Specification of materials for oxygen service is the user's responsibility. Consult an expert.
