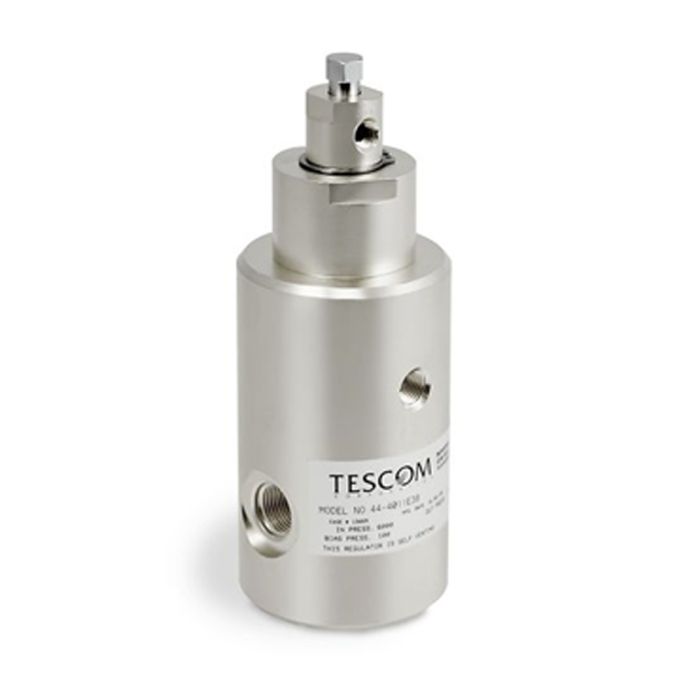

TESCOM Regulator 316 SS, Kalrez® O-rings, Vespel® Seat w/ 1 In. 2500# RTJ WN Flange for Inlet & Outlet Ports

Name: TESCOM Regulator 316 SS, Kalrez® O-rings, Vespel® Seat w/ 1 In. 2500# RTJ WN Flange for Inlet & Outlet Ports
Brand: TESCOM
SKU: 44-4068P916-100
Price: 11041.00 USD
Availability: InStock

SKU

44-4068P916-100

$11,041.00

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Application Diving applications for emergency breathing air. Features High Flow: Cv = 0.7 or 2.0 (optional) Piston sensed Venting (captured) Adjustable bias pressure ranges are available. Compatible with Tescom’s air actuators and ER5000 electropneumatic controllers. Specifications Body Material: 316 stainless steel Soft Goods: O-ring: FFKM, Perfluoroelastomer (Kalrez®) Seat: Polyimide (Vespel®) Gasket: Polyimide (Vespel®) Temperature: -15°F to 400°F / -26°C to 204°C 1 in. 2500# RTJ WN Flange for inlet & outlet ports Flow Capacity: Main Valve: Cv = 0.7 (Cv = 2.0 optional) Vent Valve: Cv = 0.35 Load Type: Dome load/spring bias Design Proof Pressure: 150% maximum operating Leakage: Bubble-tight Weight: 8 lbs. / 3.6 kg Cleaning: CGA 4.1 and ASTM G93 Dome Load/Spring Bias

Information

44-4000 dome loaded, spring biased regulator is designed for pressure tracking applications to maintain a constant differential pressure. Venting allows for pressure tracking increases and decreases. Ideal for use in diving applications for emergency breathing air.
