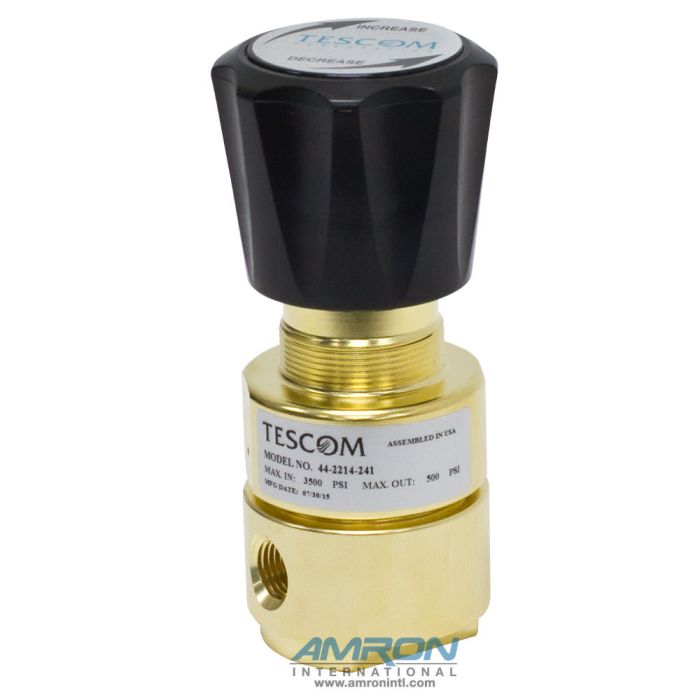

TESCOM Pressure Reducing Regulator Brass, Outlet 0-500 PSIG, 1/4 IN. NPTF, Inlet 3500 PSIG, Cv 0.06

Name: TESCOM Pressure Reducing Regulator Brass, Outlet 0-500 PSIG, 1/4 IN. NPTF, Inlet 3500 PSIG, Cv 0.06
Brand: TESCOM
SKU: 44-2214-241
Price: 283.00 USD
Availability: InStock

SHIP NOW

SKU

44-2214-241

$283.00

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Applications: Laboratory and point-of-use gas systems Sampling systems, zero, span and calibration analyzer gases Specialty and industrial gas cylinder regulator Chromatograph flame detector fuel supply Features: Compact in size Designed to reduce contamination and provide accurate regulation of any corrosive, non-corrosive, or toxic gas Brass model provides added economy for control of non-corrosive media Metal to metal diaphragm to body seal assures minimum inboard and outboard leakage Convoluted diaphragm gives excellent accuracy and long life Panel mounting available NACE compliant designs are available upon request and at an additional cost Specifications: Maximum Inlet Pressure: 3500 psig / 241 bar Outlet Pressure Ranges: 0-25 psig / 0-1.7 bar Design Proof Pressure: 150% maximum rated Non-Venting Leakage: Internal: Bubble-tight External: Design to meet ≤ 2 x 10-8 atm cc/sec He Operating Temperature: -40°F to 165°F / -40°C to 74°C Flow Capacity: 3500 psig / 241 bar Inlet: Cv = 0.06 Maximum Operating Torque: 30 in-lbs. / 3.4 N•m Decaying Inlet Characteristic Cv = 0.06: 0.75 psig / 0.05 bar Inlet & Outlet Port Type: FNPT Inlet & Outlet Port Size: 1/4 inch Inlet Pressure: 3500 PSIG / 241 bar Media Contact Materials: Body Materials: Brass Bonnet: Brass Diaphragm: 316 Stainless Steel, Elgiloy® Seat: Teflon® Remaining Parts: Brass Other: Cleaning: CGA 4.1 and ASTM G93 Internal Volume: 6 cc Weight (without gauges): 2 lbs / 0.9 kg Applications Laboratory and point-of-use gas systems Sampling systems, zero, span, and calibration analyzer gases Specialty and industrial gas cylinder regulator Chromatograph flame detector fuel supply Features Compact size. Designed to reduce contamination and provide accurate regulation of any corrosive, non-corrosive, or toxic gas. Brass model provides added economy for control of non-corrosive media. Metal to metal diaphragm to body seal assures minimum inboard and outboard leakage. Convoluted diaphragm gives excellent accuracy and long life. Panel mounting available. NACE compliant designs are available upon request and at an additional cost. Regulator incorporates an adjustable stop which allows the maximum outlet pressure to be limited to any value between the maximum rated value and 50% of the maximum rated value. Specifications Body Material: Brass Outlet Pressure Range: 0-500 psig / 0-34.5 bar Maximum Inlet Pressure and Flow Capacity: 3500 psig / 241 bar Inlet: Cv = 0.06 3500 psig inlet models have 1/4 in. NPTF Inlet and Outlet Gauge Ports Valve Inlet & Outlet Port Size: 1/4 in. NPTF Design Proof Pressure: 150% maximum rated Leakage: Internal: Bubble-tight External: Design to meet ≤ 2 x 10-8 atm cc/sec He Operating Temperature: -40°F to 165°F / -40°C to 74°C Maximum Operating Torque: 30 in-lbs. / 3.4 N∙m Diaphragm: 316 Stainless Steel, Elgiloy® Seat: Teflon® Internal Volume: 6 cc Weight (without gauges): 2 lbs. / 0.9 kg CAUTION: This product is cleaned in accordance with the intermediate level of ASTM-G93 and CGA-4.1 (The intermediate level assures removal of visible particles and combustible residues). System designers must verify the compatibility of the materials used in this product before installation and operation. Specification of materials for oxygen service is the user's responsibility. Consult an expert. NOTE: Please refer to the 44-2200 Series Regulator Selection Tool page or the Tescom datasheet on the Resources tab to validate regulator selection. NOTICE: This regulator should be serviced on a regular or annual basis under normal usage. For assistance in obtaining the correct soft goods or repair kit SKUs, please contact your Amron representative or email sales@amronintl.com

Information

The TESCOM 44-2200 Series is a compact, lightweight high purity single-stage regulator for specialty, flammable, and industrial gas flows of less than 5 SCFM / 141 SLPM. Its diffusion-resistant metal diaphragm seal ensures gas purity and integrity.

Applications

Laboratory and point-of-use gas systems
Sampling systems, zero, span, and calibration analyzer gases
Specialty and industrial gas cylinder regulator
Chromatograph flame detector fuel supply

Features

Compact in size.
Designed to reduce contamination and provide accurate regulation of any corrosive, non-corrosive, or toxic gas.
Brass model provides added economy for control of non-corrosive media.
Metal to metal diaphragm to body seal assures minimum inboard and outboard leakage.
Convoluted diaphragm gives excellent accuracy and long life.
Panel mounting available.
NACE compliant designs are available upon request and at an additional cost.
300 series stainless steel or brass bonnet.

Tescom 44-2210-241 is a compact, lightweight high purity single-stage regulator for specialty, flammable, and industrial gas flows of less than 5 SCFM / 141 SLPM. Its diffusion-resistant metal diaphragm seal ensures gas purity and integrity.
