TESCOM Pressure Reducing Regulator Brass, Inlet 5000 PSIG, Outlet 0-3000 PSIG, 1/2 In. NPTF, Cv 2.0

Name: TESCOM Pressure Reducing Regulator Brass, Inlet 5000 PSIG, Outlet 0-3000 PSIG, 1/2 In. NPTF, Cv 2.0
Brand: TESCOM
SKU: 44-1317-2082-186
Price: 1902.00 USD
Availability: InStock

SKU

44-1317-2082-186

$1,902.00

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

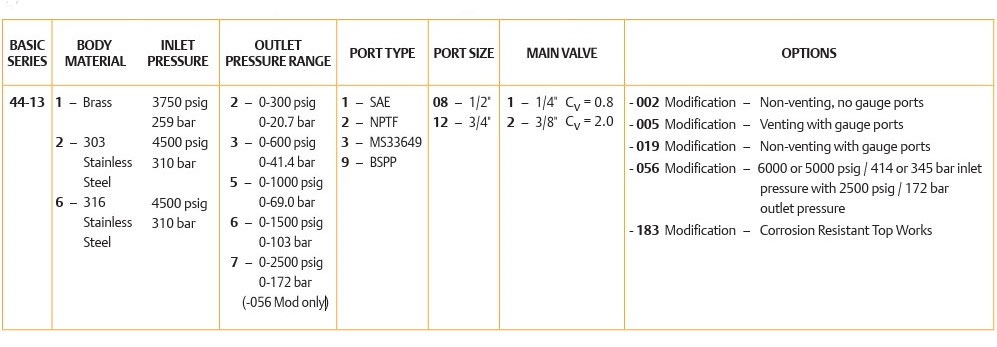

	Ordering Parameters Specifications Modification 186 Features: Locking Wrench Adjustment Non-Venting Cleaning Level II per Spec. 60295 Inlet Pressure: 5,000 PSI Outlet Pressure: 3,000 PSI Porting: Right-hand inlet with 1/4” NPT gauge ports at 60° Body Material: Brass Inlet Pressure: 5,000 PSI (modification) Outlet Pressure: 3,000 PSI (modification) In and Out Port Type: NPT In and Out Port Size: 1/2 inch Design Proof Pressure: 150% of rated pressure Pressure Rating: Per criteria of ANSI/ASME B31.3 Operating Temperature: -0°F to 165°F Leakage: Bubble-tight Flow Capacity (Cv): 2.0 Weight: Approximately 6.25 lbs. Seat, Main Valve: CTFE Vent Valve: None O-Rings: Viton® Back-up Rings: Teflon® Gaskets: CTFE Remaining Parts: Type 17-4PH, 300 Series SST, 17-7PH, Teflon® & Brass Teflon® and Viton® are registered trademarks of E.I. du Pont de Nemours and Company CAUTION: This product is modified to a Cleaning Level II per Spec. 60295. System designers must verify the compatibility of the materials used in this product before installation and operation. Specification of materials for oxygen service is the user's responsibility. Consult an expert. NOTICE: This regulator should be serviced on a regular or annual basis under normal usage. For assistance in obtaining the correct soft goods or repair kit SKUs, please contact your Amron representative or email sales@amronintl.com.

Information

The 44-1300 Series Regulator is a spring-loaded, hand-operated, pressure-reducing regulator.

Applications

Commercial diving - breathing air
Special gas mix regulation hard-suit diving
High-pressure tube trailer gas reduction

Features

A large piston sensor gives excellent sensitivity.
Balanced valve design ensures stable downstream pressure.
This model has a locking wrench adjustment.
This model is non-venting.
Modified to have a right-hand inlet with 1/4-inch NPT gauge ports at 60°, non-venting, expanded inlet pressures (6000 PSI for SST and 5000 PSI for brass regulators) and a 3000 PSI outlet pressure option.
Cleaning level II per Spec. 60295.
Dome and air-loaded models are available (non-venting only).
Flanged end connections available.

Notes

For extended temperatures from -40°F to 400°F (-40°C to 204°C), consult Amron or Tescom.
A secondary pressure drop due to the outlet-cross-hole can significantly affect the rated flow capacity. Flow curves should be used for critical sizing applications. See the Resources tab for more information.

Resources

ATTACHMENTS

Tescom 44-1300 Series Regulator Data Sheet

(Size: 440.5 KB)
