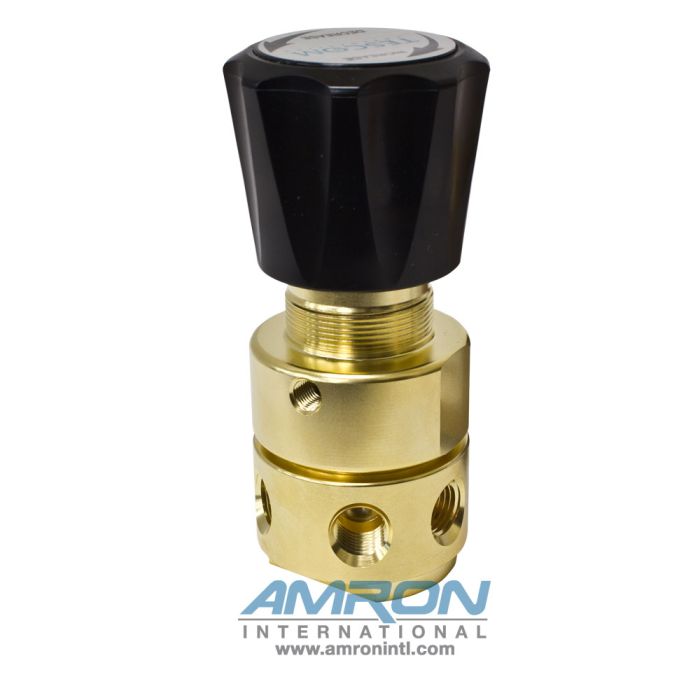

TESCOM 44-2211-241 Pressure Reducing Regulator 0-50 PSIG – Brass

Applications:

• Laboratory and point-of-use gas systems
• Sampling systems, zero, span and calibration analyzer gases
• Specialty and industrial gas cylinder regulator
• Chromatograph flame detector fuel supply

Features:

• Compact in size
• Designed to reduce contamination and provide accurate regulation of any corrosive, non-corrosive, or toxic gas
• Brass model provides added economy for control of non-corrosive media
• Metal to metal diaphragm to body seal assures minimum inboard and outboard leakage
• Convoluted diaphragm gives excellent accuracy and long life
• Panel mounting available
• NACE compliant designs are available upon request and at an additional cost

Specifications:

• Maximum Inlet Pressure: 3500 psig / 241 bar
• Outlet Pressure Ranges: 0-50 psig / 0-0-3.4 bar
• Design Proof Pressure: 150% maximum rated
• Non-Venting
• Leakage:
• Internal: Bubble-tight
• External: Design to meet ≤ 2 x 10-8 atm cc/sec He
• Operating Temperature: -40°F to 165°F / -40°C to 74°C
• Flow Capacity: 3500 psig / 241 bar Inlet: Cv = 0.06
• Maximum Operating Torque: 30 in-lbs. / 3.4 N•m
• Decaying Inlet Characteristic Cv = 0.06: 0.75 psig / 0.05 bar
• Inlet & Outlet Port Type: FNPT
• Inlet & Outlet Port Size: 1/4 inch
• Inlet Pressure: 3500 PSIG / 241 bar

Media Contact Materials:

• Body Materials: Brass
• Bonnet: Brass
• Diaphragm: 316 Stainless Steel, Elgiloy®
• Seat: Teflon®
• Remaining Parts: Brass

Other:

• Cleaning: CGA 4.1 and ASTM G93
• Internal Volume: 6 cc
• Weight (without gauges): 2 lbs / 0.9 kg

Note: Comes with inlet and outlet gauge ports
