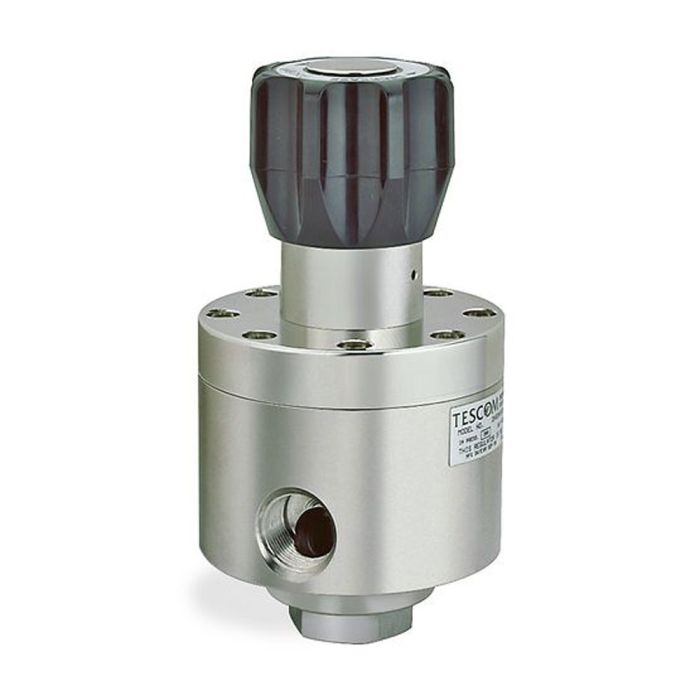

TESCOM DHH60VEN9B44F DH Series Single Stage Regulator 0-20 PSIG

Industries:

• Automotive Line
• Pharmaceutical manufacturing plants
• Chemical manufacturing plants
• Emergency vehicles that have a series of full hood mask

Applications:

• Purging
• Blanketing
• High flow inerting
• Heat treating
• Shielding gases

Features:

• Diaphragm sensed - highly sensitive
• Excellent repeatability
• Very high flows at low pressures
• Performs well at very low pressure differentials such as dewar-supplied processes
• Multi-drop breathing air stations

Specifications:

• Load Type: Spring
• Outlet pressure Range: 0-20 psig
• Design proof pressure: 150% of rated inlet
• Leakage: Bubble-tight
• Ambient operating temperature: -20°F to +165°F / -20°C to +74°C
• Flow Capacity: Cv = 5.0
• Optional Items: None
• Porting Configuration: 2 gauge ports at 60°
• Inlet: 1" NPT
• Outlet: 1" NPT
• Guage: 1/4" Gauges only NTP

Media Contact Materials:

• Body, Bonnet, Back-cap: 316 Stainless Steel
• Diaphragm: Ethylene Propylene
• O-Ring and Valve Seat Material: Viton
• Vent Seat: Non-Venting

Other:

• Cleaning: CGA 4.1 and ASTM G93 (Intermediate Level)
• Weight: Stainless Steel: 15 lbs / 6.8 kg
