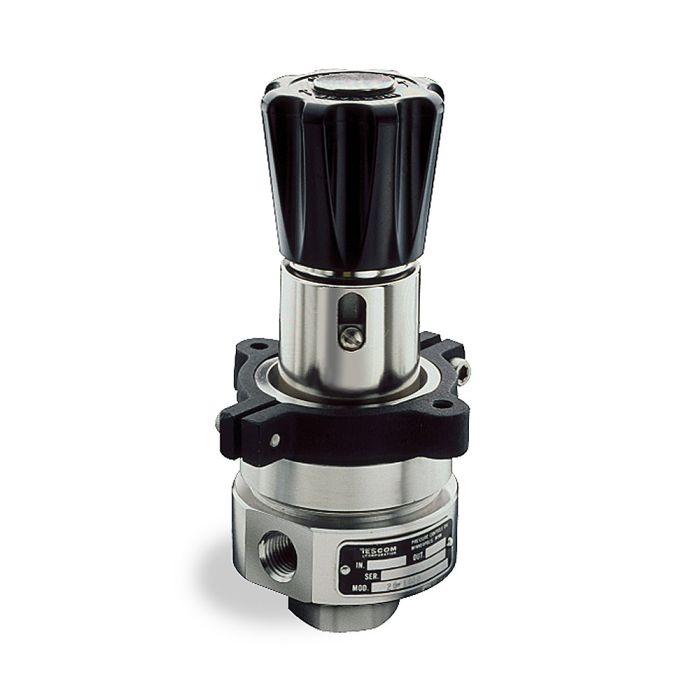

TESCOM 26-1600 Series Pressure Regulators

Only %1 left

SKU

26-1600

As low as $1,474.00

Choose Your Body Material

Choose your Outlet Pressure Range

Choose your Port Size and Type

Choose your Port Size

Choose Optional Modifications

Qty

Eligible for Free Shipping Over $125

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

Applications

Test equipment
Calibration stands
Production equipment

Features

Venting is standard (available with captured venting)
Highly sensitive
Features a non-rising stem and low operating torque
Compact design
Filter extends seat life
Numerous porting options
Panel mounting (bracket included)
Easy maintenance with standard tools
High flow Cv = 0.24 version is available (maximum inlet pressure: 3000 psig / 207 bar)

Specifications

Maximum Inlet Pressure
- Stainless: 6000 psig / 414 bar
- Aluminum, Brass: 5000 psig / 345 bar
Outlet Pressure Ranges
- 0-50, 0-150, 0-250, 0-500 psig
- 0-3.4, 0-10.3, 0-17.2, 0-34.5 bar
Material
- Body and Bonnet: 316 Stainless Steel, Aluminum (2024-T351), Brass
- 40 Micron Filter: 300 Series Stainless Steel
- O-Ring and Diaphragm: Buna-N
Valve Seat
- Main: CTFE
- Vent: 15% graphite-filled Teflon®
Remaining Parts: 300 Series Stainless Steel
Operating Temperature: -40°F to 165°F / -40°C to 74°C
Port Size & Type
- Inlet & Outlet Port Type: SAE, NPTF, MS33649
- Inlet & Outlet Port Size: 1/4, 3/8, 1/2 (Stainless Steel only)
Flow Capacity: Cv = 0.08
Load Type: Spring
Weight (without gauges)
- Stainless, Brass: 3.3 lbs / 1.5 kg
- Aluminum: 2.8 lbs / 1.3 kg

26-1600 Series Regulator Part Number Selector

Basic Series	Body Material	Outlet Pressure Range	Inlet & Outlet Port Type	Inlet & Outlet Port Size	Options
26-16	1 - Brass 3 - Aluminum (2024-T351) 6 - 316 Stainless Steel	0 - 0-50 psig / 0-3.4 bar 1 - 0-150 psig / 0-10.3 bar 2 - 0-250 psig / 0-17.2 bar 3 - 0-500 psig / 0-34.5 bar	1 - SAE 2 - NPTF 3 - MS33649	4 – 1/4 in. 6 – 3/8 in. 8 – 1/2 in. (Stainless Steel only)	[BLANK] - None 001 004 008 453

If you don’t see the configuration you need, please contact Amron Sales by calling (760) 208-6500 or emailing sales@amronintl.com.

Disclosures

Articles are cleaned in accordance to the recommendations of ASTM G-93 and CGA-4.1 (Cleaning Equipment for Oxygen Service) (Ref. Tescom’s Specification ES 60295) which assures removal of visible particles and combustible residues.

Care must be taken during installation to prevent either particle or combustible film contamination. Mercury or Mercury containing compounds are not intentionally added to or come in direct contact with product(s) supplied with this order.

All internal stainless steel flow stream parts assembled in Tescom regulators and valves are electro-polished per Tescom specification ES 5075. Note: Specifications of materials in regulators for Oxygen Service is the USER’s RESPONSIBILITY.

Electronic components and gauges are not cleaned by Tescom. Oxygen cleaned must be specified when ordered.

Information

TESCOM 26-1600 Series highly accurate, diaphragm sensed pressure reducing regulator offers adjustable venting standard. Panel mounting, integrated 40 micron filter and low handknob torque ensure a robust and adaptable design with many modifications available.
