TESCOM 26-1000 Series Pressure Regulator Selection Tool
Restrictions / Notifications
- Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.
Ordering Parameters
If you don’t see the configuration you need, please contact Amron Sales by calling (760) 208-6500 or emailing sales@amronintl.com.
Applications
Operating Parameters
26-1000 Multiple Range KitsTESCOM’s Multiple Range Kits permit the 26-1000 Series to be modified to any one of several different outlet pressure ranges. Modular design of these regulators permit the outlet pressure ranges to be changed while retaining the desirable characteristics of minimum lock-up, maximum sensitivity, precision and accuracy.
This can be done by interchanging a combination of sensors and load springs and can be accomplished while the regulator remains in line and connected to the system. With the use of the Multiple Range Kits, the 26-1000 Series regulator has the ability to accomplish what would ordinarily require up to seven different regulators.
Please visit our Multiple Range Kit page for more information.
Features
Specifications
CAUTION: This product is cleaned in accordance with the intermediate level of ASTM-G93 and CGA-4.1 (The intermediate level assures removal of visible particles and combustible residues). System designers must verify the compatibility of the materials used in this product before installation and operation. Specification of materials for oxygen service is the user's responsibility. Consult an expert.
NOTICE: This regulator should be serviced on a regular or annual basis under normal usage. For assistance in obtaining the correct soft goods or repair kit SKUs, please contact your Amron representative or email sales@amronintl.com.

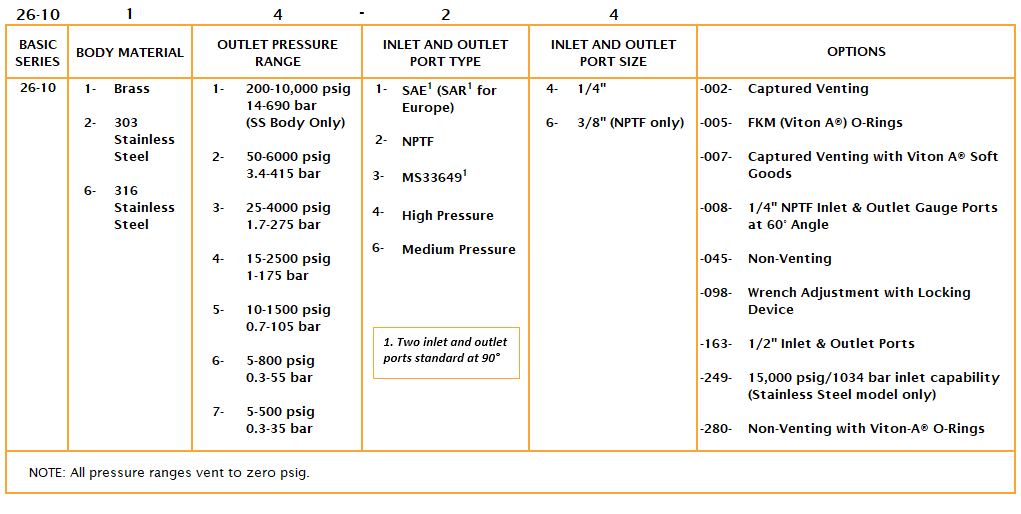

Teflon®, Viton-A®, Kalrez®, and Vespel® are registered trademarks of E.I. du Pont de Nemours and Company. 26-1000 Series Regulator Part Number Selector
DisclosuresArticles are cleaned in accordance to the recommendations of ASTM G-93 and CGA-4.1 (Cleaning Equipment for Oxygen Service) (Ref. Tescom’s Specification ES 60295) which assures removal of visible particles and combustible residues.
Care must be taken during installation to prevent either particle or combustible film contamination. Mercury or Mercury containing compounds are not intentionally added to or come in direct contact with product(s) supplied with this order.
All internal stainless steel flow stream parts assembled in Tescom regulators and valves are electro-polished per Tescom specification ES 5075. Note: Specifications of materials in regulators for Oxygen Service is the USER’s RESPONSIBILITY.
Electronic components and gauges are not cleaned by Tescom. Oxygen cleaned must be specified when ordered. |
|||||||||||||||||||

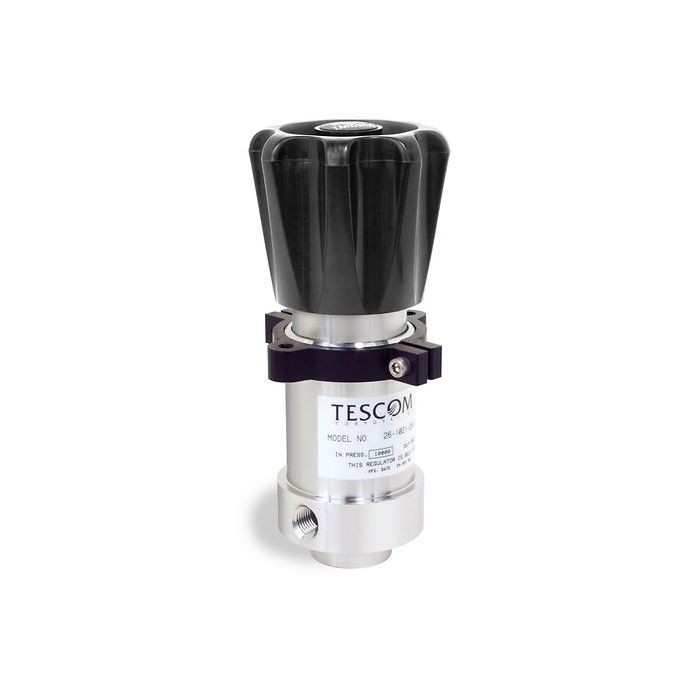

TESCOM 26-1000 Series controls pressures up to 10,000 psig / 690 bar. This pressure reducing regulator offers standard venting providing decreased outlet pressure. The 26-1000 Series has an interchangeable spring and sensor for product versatility. The low torque hand knob is easy to adjust.
- Numerous port options
- Optional inlet pressures to 20,000 PSI
- Field-changeable outlet pressure ranges
- Large hand knob provides fast, low-torque pressure settings
Disclosures
Articles are cleaned in accordance to the recommendations of ASTM G-93 and CGA-4.1 (Cleaning Equipment for Oxygen Service) (Ref. Tescom’s Specification ES 60295) which assures removal of visible particles and combustible residues.
Care must be taken during installation to prevent either particle or combustible film contamination. Mercury or Mercury containing compounds are not intentionally added to or come in direct contact with product(s) supplied with this order.
All internal stainless steel flow stream parts assembled in Tescom regulators and valves are electro-polished per Tescom specification ES 5075. Note: Specifications of materials in regulators for Oxygen Service is the USER’s RESPONSIBILITY.
Electronic components and gauges are not cleaned by Tescom. Oxygen cleaned must be specified when ordered.
