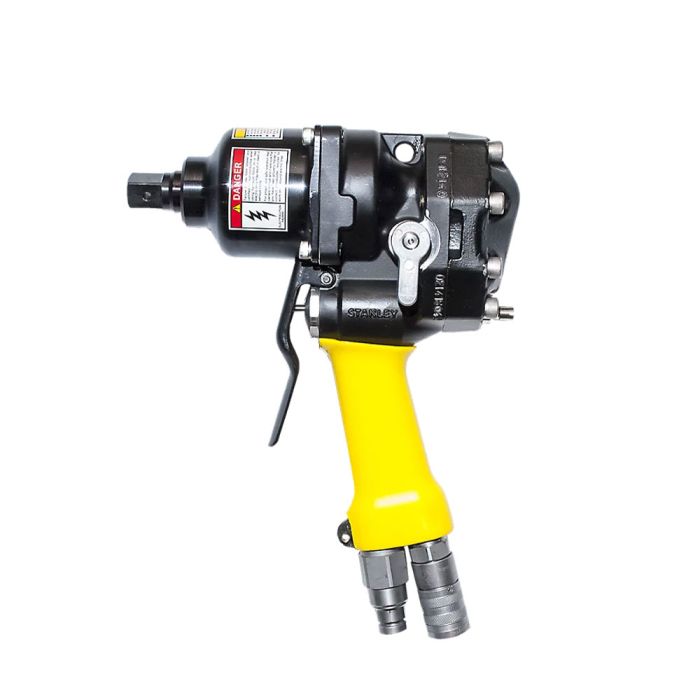

Stanley IW1214001 Hydraulic Impact Wrench 3/4 inch Sq. Drive w/ Flush Face Couplers - CE Certified

Name: Stanley IW1214001 Hydraulic Impact Wrench 3/4 inch Sq. Drive w/ Flush Face Couplers - CE Certified
Brand: Stanley
SKU: IW1214001
Price: 2926.00 USD
Availability: InStock

SKU

IW1214001

was $3,325.00 Sale Price $2,926.00

Stanley IW1214001 Hydraulic Impact Wrench 3/4 inch Sq. Drive with Flush Face Couplers - CE Certified

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Stanley’s Hydraulic Impact Wrenches are world renowned for their adjustable impact intensity settings allowing for a wide range of uses. The rugged design incorporates an integral motor and heavy-duty mechanism for the rigors of track maintenance use. The power-to-weight ratio of these products is un-matched by any impact wrench on the market in their class. Application: Fastening or Loosing Hardware that require High Torque Features: The IW12 impact wrench features adjustable impact intensity. The IW12 can handle a wide variety of applications. The rugged Stanley impact wrench mechanism is simple to maintain and has many features to give it proven reliability. Torque transmission to the operator is minimal with the swing hammer design. The larger feathering trigger is convenient to use and gives the operator complete control of the wrench. The standard reversing valve provides instant reverse. For operator comfort the IW12 handle is coated with a heat insulating, shock absorbing material. Specifications: Chuck Type: 3/4 in. Square Drive Weight: 14 lbs Length: 9.5 in. Width: 4 in. Hydraulic Pressure: 1000-2000 PSI Torque:250-1200 ft./lbs Input Flow Range: 4-12 GPM Optimum Flow: 5-10 GPM Porting: -8 SAE O-Ring Connect Size & Type: 3/8 in. Flush Face Motor: Integral STANLEY Hyrevz Gear Motor Max Pressure: 2000 PSI CE Certified Note: Includes couplers Features The IW12 Impact Wrench features adjustable impact intensity, and it can handle a wide variety of applications. The rugged STANLEY® Impact Wrench mechanism is simple to maintain and has many features to give it proven reliability. Torque transmission to the operator is minimal with the swing hammer design. The larger feathering trigger is convenient to use and gives the operator complete control of the wrench. The standard reversing valve provides instant reverse. For operator comfort the IW12 handle is coated with a heat insulating, shock absorbing material. Specifications CE certified Couplers included Hose Whips: No Chuck Type (cm): Sq. drive 1.9 cm Torque: 250 - 1200 ft. lbs. / 340 - 1632 nm Input Pressure: 1000 - 2000 psi / 70 - 140 bar Weight: 14 lbs. / 6.4 kg Length: 9.5 in. / 24.1 cm Width: 4 in. / 10.2 cm Connection : 3/8 in. male pipe adapter Ports : -8 SAE O-Ring Motor: Integral Flow Range: 4 - 12 gpm / 15 - 45 lpm

Information

Stanley Tools IW1214001 Hydraulic Impact Wrench 3/4 in. Sq. Drive with Flush Face Couplers - CE Certified

The STANLEY® IW12 Hydraulic Impact Wrench is a powerful and versatile tool designed for demanding underwater applications, including bolting, drilling, and anchor bolt driving. Powered by a Hyrevz™ motor, it delivers adjustable impact torque from 250 to 1,200 ft-lbs, making it suitable for various tasks in harsh environments. With a 3/4-inch square drive, feathering trigger for smooth operation, and an ergonomic handle for comfort, the IW12 minimizes operator fatigue. Its rugged design allows for use at depths of up to 1,000 feet, making it ideal for commercial diving operations. The wrench’s adjustable intensity and reversing valve provide excellent control, ensuring reliable performance in a wide range of applications.
