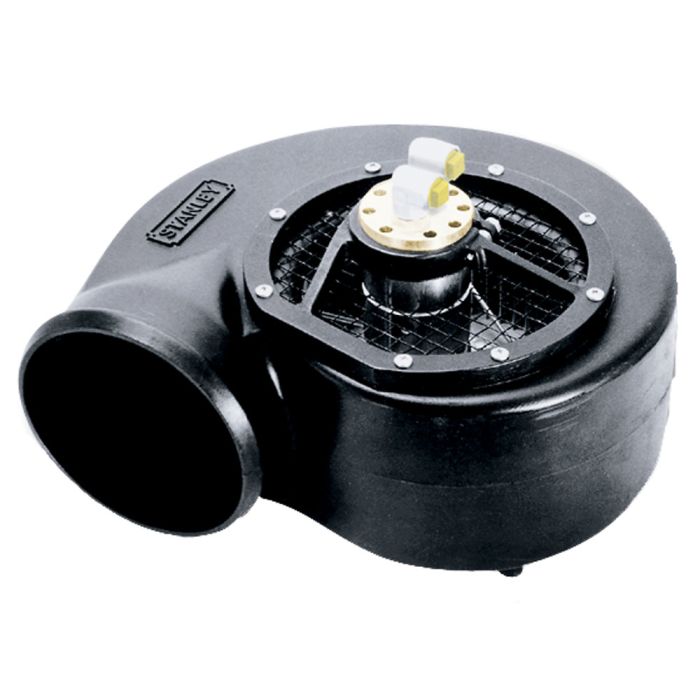

Stanley VF80000 Hydraulic Ventilating Fan

Stanley’s VF80 vent fan is designed for heavy-duty service, quickly ventilating large spaces such as vaults. The VF80 offers quiet, continuous-duty, efficient operation.

Application:

• Ventilating large areas

Features:

1,700 scfm/802 Isec capacity quickly vents even large spaces - cuts down worker waiting time. Centrifugal blower operates at lower rpm, yet delivers large volumes of air. Quiet, efficient operation. High-impact plastic case withstands rough handling. Standard 8 inch/20 cm discharge. Accepts standard heaters or coolers.

Specifications:

• Capacity: 1700 scfm
• Weight: 19.2 lbs
• Length: 15.5 inch
• Width: 19.2 inch
• Hydraulic Pressure: 500-2000 PSI
• Input Flow Range: 4-12 GPM
• Optimum Flow: 12 GPM
• Porting: -10 SAE O-Ring
• Connect Size & Type: 1/2 inch Female Pipe
• Max Pressure: 2000 PSI

Note: Includes Coupler
