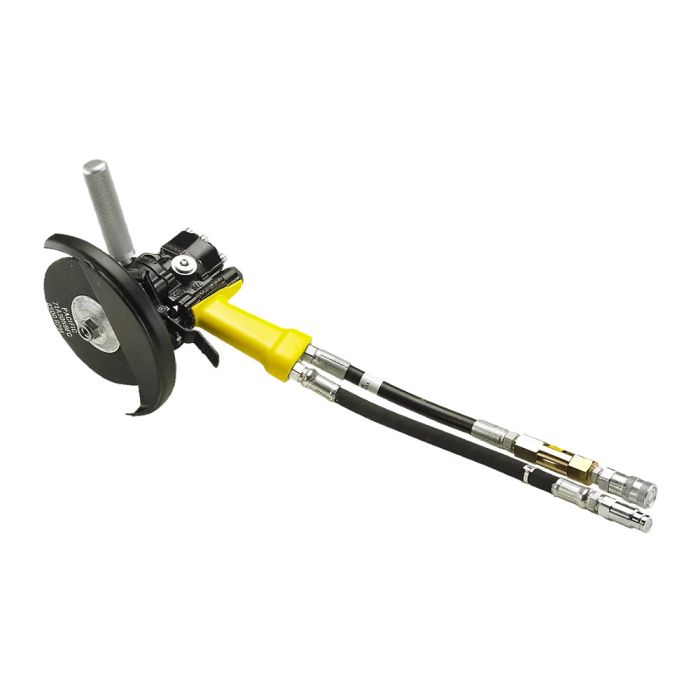

Stanley GR3070101 Hydraulic Grinder OC/CC Dry 9 inch - CE Certified

SKU
GR3070101
was $2,725.00 Sale Price $2,398.00
Eligible for Free Shipping Over $125
Stanley GR3070101 Hydraulic Grinder OC/CC Dry 9 inch - CE Certified
More Information

The Stanley GR30 Grinder is used for top, face, and side grinding using 9 inch (228.6 mm) diameter wheels. Wire brushes can also be used and depressed-center wheels with an optional adapter.

Application:

  • Grinding

Features:

The integral Stanley Hyrevz gear motor is manufactured to exacting standards to deliver maximum efficiency. The over-sized motor run-down valve allows the motor to freely run down in speed when the grinder is turned off ensuring that a properly installed wheel will not spin off the spindle. The built-in reverse-check valve in the handle prevents operating the grinder when reverse-plumbed to the hydraulic system. The Stanley dual-spool selector is accessible under a seal plug at the rear of the tool.

Specifications:

  • Capacity: 9 inch
  • Weight: 12 lbs
  • Length: 8 inch
  • Width: 12.5 inch
  • Hydraulic Pressure:1000-2000 PSI
  • Input Flow Range: 7-9 GPM
  • RPM: 5600 RPM @ 8 GPM
  • Optimum Flow: 8 GPM
  • Porting: -8 SAE O-Ring
  • Connect Size & Type: 3/8 inch Flush Faced
  • Motor: Integral STANLEY Hyrevz Gear Motor
  • Max Pressure: 2000 PSI
Features
  • The integral STANLEY® Hyrevz gear motor is manufactured to exacting standards to deliver maximum efficiency.
  • A versatile, heavy-duty tool designed for top, face, and side grinding applications.
  • Supports wire brushes and, with an optional adapter, depressed-center wheels for added flexibility.
  • Engineered for powerful performance and durability.
  • Ideal for demanding industrial and marine environments where precision and reliability are essential.
  • The over-sized motor run-down valve allows the motor to freely run down in speed when the grinder is turned off ensuring that a properly installed wheel will not spin off the spindle.
  • The built-in reverse-check valve in the handle prevents operating the grinder when reverse-plumbed to the hydraulic system.
  • The STANLEY® dual-spool selector is accessible under a seal plug at the rear of the tool.



Specifications
  • OC/CC selector
  • CE certified
  • Capacity : 9 in. wheel on 5/8-11 threaded arbor
  • Speed: 5600 rpm at 8 gpm / 30 lpm
  • Input Flow Range: 7 - 9 gpm / 26 - 34 lpm
  • Input Pressure: 1000 - 2000 psi / 70 - 140 bar
  • Weight: 12.5 lbs. / 5.7 kg
  • Length: 8.5 in. / 21.6 cm
  • Width: 8.7 in. / 22.1 cm
  • Height: 17.5 in. / 44.5 cm
  • Motor: Stanley Hyrevz TM Gear
  • Porting: -8 SAE o-ring
  • Hose Whips: Yes, includes speed limiter
Stanley Tools GR3070101 Hydraulic Grinder OC/CC Dry 9 inch - CE Certified

The STANLEY® GR30 Grinder is a versatile, heavy-duty tool designed for top, face, and side grinding applications using 9 in. (228.6 mm) diameter wheels. It also supports wire brushes and, with an optional adapter, depressed-center wheels for added flexibility. Engineered for powerful performance and durability, the GR30 is ideal for demanding industrial and marine environments where precision and reliability are essential.
