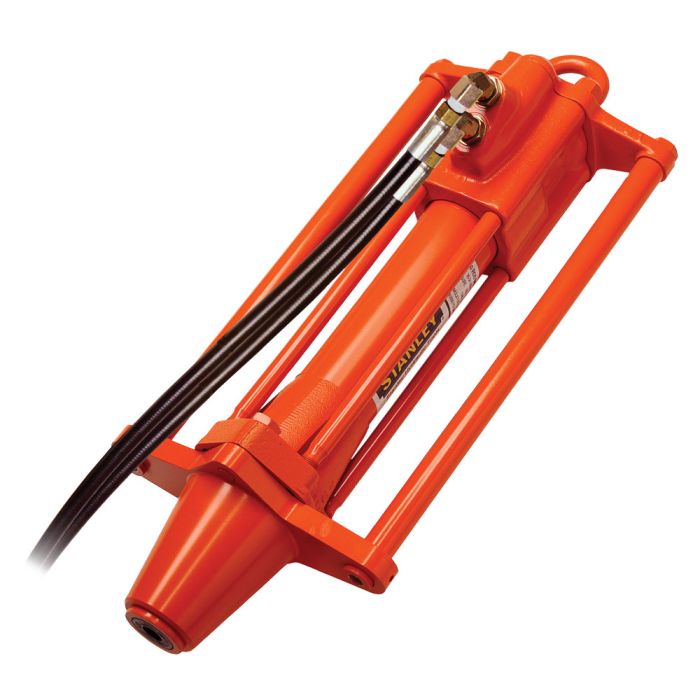

Stanley GD50132RF Hydraulic Ground Rod Driver 5/8 Inch Rapid Fire

Name: Stanley GD50132RF Hydraulic Ground Rod Driver 5/8 Inch Rapid Fire
Brand: Stanley
SKU: GD50132RF
Price: 2826.00 USD
Availability: InStock

SKU

GD50132RF

was $3,212.00 Sale Price $2,826.00

Stanley GD50132RF Hydraulic Ground Rod Driver 5/8 inch Rapid Fire

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	The Stanley GD50 Ground Rod Driver is ideal for driving rods with proven, hard-hitting technology. The GD50132RF drives 1/2-inch and 5/8-inch rods. Application: Driving Grounding Rods Various Electrical Applications. Features: The lifting eye allows the operator to suspend the driver above the rod with ease. The long side handles give the operator control during the driving process. The in-line valve in the 8-foot hose whips gives the operator On/Off control where he is standing. GD50 models have driving anvils which are designed to fit the rods which helps to minimize damage to the rod ends. The anvil which remains in contact with the rod while the hammer in the ground rod driver delivers its high-energy blows to the anvil. The deep socket of the anvil keeps the driver from jumping off the end of the rod. The anvils are interchangeable, so that you can change the capacity of a ground rod driver by simply changing anvils. The removal of two bolts is all that is required to service the front end of the GD50. Specifications: Capacity: Rods 1/2 inch - 5/8 inch Weight: 57 lbs Length: 25.5 inch Width: 10 inch Hydraulic Pressure: 1500-2000 PSI Input Flow Range: 7-9 GPM Optimum Flow: 8 GPM Porting: -8 SAE Straight Thread Connect Size & Type: 3/8 inch Flush Face Quick Disconnect Max Pressure: 2000 PSI Features The STANLEY® GD50 Ground Rod Driver is ideal for driving rods with proven, hard-hitting technology and delivers proven, hard-hitting top-drive power and frequency for efficient rod installation in the field. Designed for versatility and durability, the GD50 is built for performance and operator convenience in tough environments. Built-in lifting eye allows for easy suspension over the rod, while extended side handles provide superior control during operation. Unit features an interchangeable deep socket anvil that takes all impact—protecting the rod end from damage. Supplied with flush-face quick disconnect couplers, 8-foot hose whips, and a dual-spool in-line ON/OFF valve. The in-line valve in the 8-foot hose whips gives the operator On/Off control where he is standing. Both GD50 models have driving anvils which are designed to fit the rods which helps to minimize damage to the rod ends. Ideal for use by right-of-way crews, arborists, utilities, parks departments, groundskeepers, and forest trail maintenance crews. Specifications Hose Whips & Couplers: Yes Hose Whip Length: 8 ft. Capacity: 1/2 and 5/8 in. rod / 12 and 16 mm rod Flow Range: 5 - 9 gpm / 19 - 34 lpm Pressure: 1500 - 2000 psi / 105 - 140 bar Ports: -8 SAE straight thread o-ring System Type: Open center / closed center Weight: 52 lbs. / 24 kg Length: 25.5 in. / 64.8 mm Connection: 3/8 in. flush-face quick disconnect couplers

Information

Stanley Tools GD50132RF Hydraulic Ground Rod Driver 5/8 inch Rapid Fire

The STANLEY® GD50 Ground Rod Driver delivers proven, hard-hitting top-drive power and frequency for efficient rod installation in the field. Available in two models to accommodate either 1/2 inch – 5/8 inch or 3/4 inch –1 inch ground rods, the GD50 is designed for versatility and durability. A built-in lifting eye allows for easy suspension over the rod, while extended side handles provide superior control during operation. The unit features an interchangeable deep socket anvil that takes all impact—protecting the rod end from damage. Supplied with flush-face quick disconnect couplers, 8-foot hose whips, and a dual-spool in-line ON/OFF valve, the GD50 is built for performance and operator convenience in tough environments.

Resources
