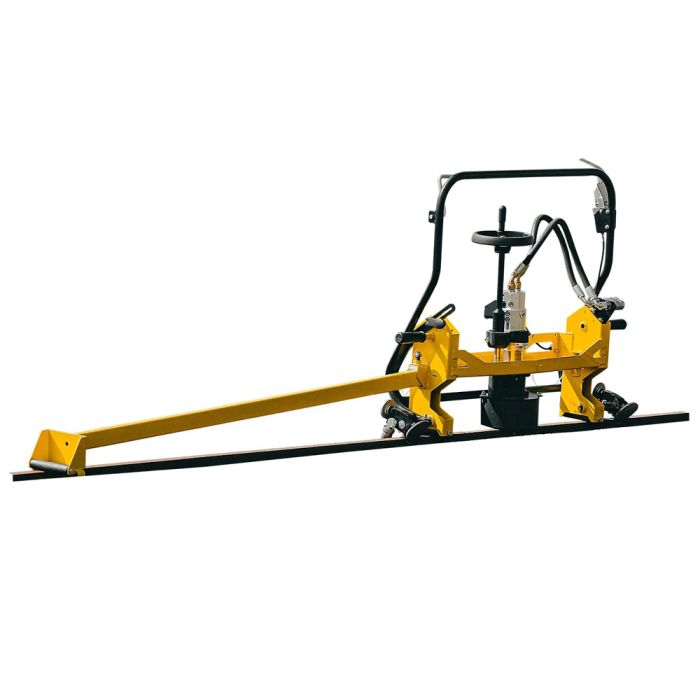

Stanley FG11 Hydraulic Frog Grinder BNSF, 4in. Dia. X 3in. 5/8-11 Arbor (Type 6) for Railway

Name: Stanley FG11 Hydraulic Frog Grinder BNSF, 4in. Dia. X 3in. 5/8-11 Arbor (Type 6) for Railway
Brand: Stanley
SKU: FG11B
Price: 8436.56 USD
Availability: InStock

SKU

FG11B

was $9,587.00 Sale Price $8,436.56

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Features Designed with built-in ergonomic functionality for an enhanced user experience, the FG11 features a one-handed clamp adjustment, better balance when carried, and a shaft lock for easy grindstone replacement. Contains a hydraulic motor specifically designed to match power and RPM for grinding applications. Trigger interlock prevents unintended startup, reducing risk of injury. Enhanced frame design eliminates interference with rail aligners. Removable stone guards enable swift switching between 4-inch and 6-inch guards and grinding stones. 40% improved visibility of the grind area compared to the FG10; a higher base frame with added windows allows for clear visibility of the work area, maximizing efficiency. Standard mechanical and hand-carry lift points on every model. Specifications Overall Length Without Arm: 44 in. / 111.76 cm Overall Arm Length: 68 in. / 172.72 cm Overall Width: 10.5 in. / 26.7 cm Overall Height: 32.5 in. / 82.5 cm Weight Without Arm: 94 lbs. / 3 kg Arm Weight: 15 lbs. / 7 kg Wheel Capacity: 4 in. dia. X 3 in. thk. X 5/8-11 threaded arbor (Type 6) U.S.A. Spindle RPM: 5500 Optimum Flow: 10 gpm / 38 lpm Maximum Back Pressure: 250 psi / 17 bar Maximum Hydraulic Pressure: 2500 psi / 172 bar Connection: Iso 16028 Flat Face Coupler - Size 8 Max Fluid Temperature: 140°F / 60°C

Information

The STANLEY® FG11 is a powerful hydraulic frog grinder built to run on a 10 GPM hydraulic circuit. This frog grinder offers an unparalleled user experience featuring ergonomic functionality, improved balance, and an integrated toolless shaft lock for quick grindstone replacement. The enhanced frame design eliminates interference with rail aligners and has a removable stone guard for quick switching between 4-inch and 6-inch guards and grindstones. With 40% improved visibility over the STANLEY FG010, the FG11 ensures an optimal frog grinding experience.

Resources

ATTACHMENTS

Stanley FG11 Hydraulic Frog Grinder Spec Sheet 2026.05.06

(Size: 144.1 KB)
