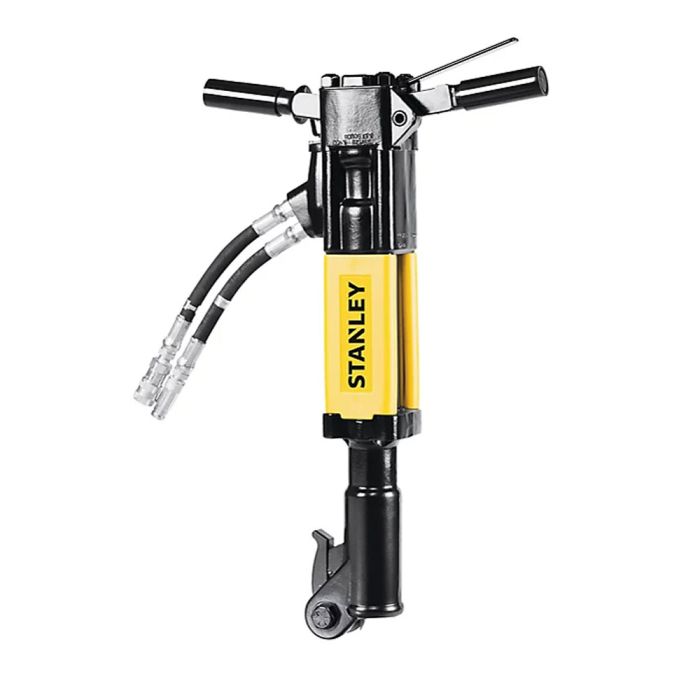

Stanley BR45120 Hydraulic T-Handle Breaker 1-1/8 x 6 inch Hex

Name: Stanley BR45120 Hydraulic T-Handle Breaker 1-1/8 x 6 inch Hex
Brand: Stanley
SKU: BR45120
Price: 2178.00 USD
Availability: InStock

SKU

BR45120

was $2,475.00 Sale Price $2,178.00

Stanley BR45120 Hydraulic T-Handle Breaker 1-1/8 x 6 inch Hex

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	45 lb class breaker with 1-1/8 inch Hex. Nothing equals the impact force of hydraulic breakers. With the best power-to-weight ratio, higher blow energy, and lower noise level than pneumatic breakers, Stanley hydraulic breakers are simply the best choice. Application: Light to medium duty operation Curb/Sidewalk demolition Asphalt Cutting Popular for ground rod driving Features: Feathering on/off valve allows the operator to control the output energy of the tool through the full range from 0 to 1525 blows per minute, making startup and initial tool placement easy. Diaphragm type accumulator design provides for ease of maintenance and extended service life of the tool. All models operate at a maximum back pressure of 250 psi (17 bar) on open center systems. Specifications: Chuck Type: 1-1/8 inch Hex Weight: 51 lbs Length: 25.5 inch Width: 14 inch Hydraulic Pressure: 1500-2500 PSI Input Flow Range: 7-9 GPM Optimum Flow: 8 GPM Porting: -8 SAE O-Ring Connect Size & Type: 3/8 inch Male Pipe Head Hose End Nominal Pressure: 1500 PSI Max Pressure: 2500 PSI Features Exceptional power-to-weight ratio. Superior blow energy and quieter operation than pneumatic tools allows for use in sensitive areas. No tool exhaust or oil atomization. Hydraulic oil provides continuous lubrication of internal parts for longer service life with minimal maintenance. Modular, re-buildable design platform improves serviceability. Feathering ON/OFF valve to control speed and make initial tool placement easy. Specifications Model BR45120: T-Handle Breaker Output (Blows Per Minute): 0 - 1525 bpm Input Flow Range: 7 - 9 gpm / 26 - 34 lpm Input Pressure: 1500 - 2000 psi / 105 - 140 bar Max. Back Pressure: 250 psi / 17 bar Optimum Flow: 8 gpm / 30 lpm Porting: -8 SAE o-ring Connector: 3/8 in. male pipe head hose end Steel Capacity (T-Handle): 6 X 1-1/8 in. HEX Weight: 51 lbs. / 23 kg Length: 25 in. / 65 cm Width (At Handles): 14 in. / 34 cm

Information

Stanley Tools BR45120 Hydraulic T-Handle Breaker 1-1/8 x 6 inch Hex

Nothing matches the impact force of hydraulic breakers. With an exceptional power-to-weight ratio, superior blow energy, and reduced noise levels compared to pneumatic breakers, STANLEY® hydraulic breakers are the optimal choice. The internal components are consistently bathed in hydraulic oil, ensuring long tool life with minimal maintenance. Additionally, the fully enclosed hydraulic system eliminates tool exhaust and oil atomization.
