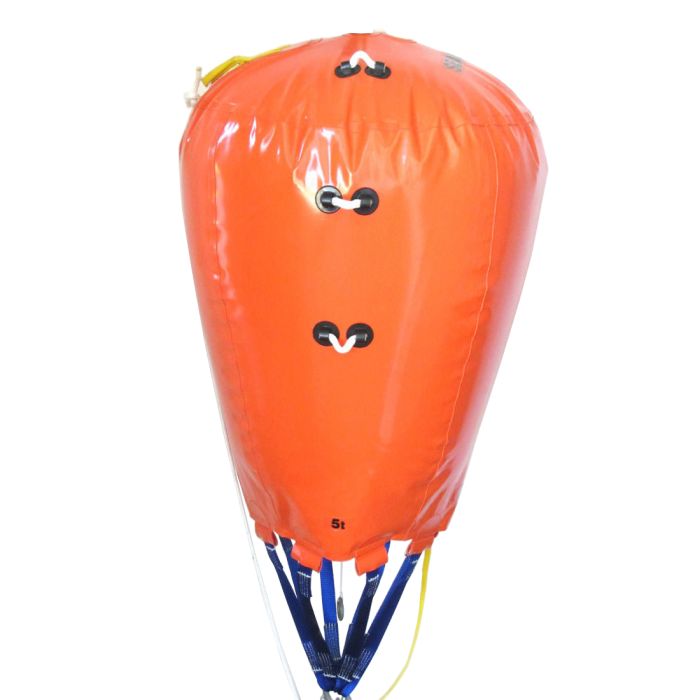

Seaflex SEF-500ALB-016 Air Lift Bag - 1,100 lbs (500 kg) Lift Capacity

SKU

SEF-500ALB-016

The Seaflex Air Lift Bag is part of a standard range of Air Lift Bags (ALB) for supporting and lifting loads from any depth.

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.
Contact us for a quote: Call (877) 462-6700 or email sales@amronintl.com.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Features: Fully compliant with IMCA D-016, and with ABS PDA Overall assembly tested and proven to a 5:1 minimum WLL safety factor Tested and proven inverter line attachment point High performance structural fabric canopy High tensile Polyester 3x3 Panama basecloth Webbing strops terminate at single lifting ring Unique ‘de-tangler’ for zero visibility rigging Heavy duty UV stabilized PVC coating RF welded seams for strength Compliance & Certification Complies with internationally accepted European offshore standard - IMCA D-016 - Air Lift Bags Seaflex in-house manufacturing procedures comply with BS EN ISO9001-2008 Independently assessed and certified by Lloyds Register Quality Assurance Ltd. Specifications: Lift: 1,100 lbs (500 kg) 2 in. Bottom Operated Dump Valve Inflated Dimensions: 5.58 H X 3.96 Diameter Feet (1.7 H X 1.2 Diameter Meters) Packed Dimensions: 1.64 L X 0.98 H X 0.66 Depth Feet (0.5 L X 0.3 H X 0.2 Depth Meters) Weight: 11.02 lbs (5 kg) Air Lift Bag - 1,100 lbs (500 kg) Lift Capacity - P/N: SEF-500ALB-016 Includes: (1) Log Book Instructions

Information

The Seaflex Air Lift Bag is part of a standard range of Air Lift Bags (ALB) for supporting and lifting loads from any depth. Their advanced design and careful construction ensures a safe and robust product which is universally accepted by marine contractors and salvagers around the world. While good for vessel draft reduction and often used for lightening underwater structures, their main application is for lifting vessels and other loads from the seabed to the surface.

Compliance & Certification

Complies with internationally accepted European offshore standard - IMCA D-016 - Air Lift Bags.
Unique Seaflex in-house manufacturing procedures comply with BS EN ISO9001-2008.
Independently assessed and certified by Lloyds Register Quality Assurance Ltd.
