Approved Vendor Rubber Molded Bulkhead Connector - 2 Pin Male

SKU

RMG-2-BCL

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.
Contact us for a quote: Call (877) 462-6700 or email sales@amronintl.com.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

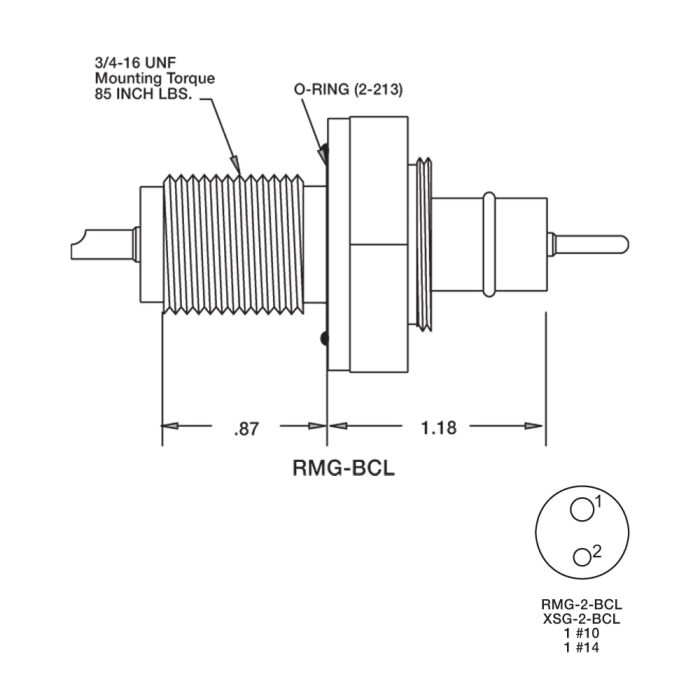

	Applications For light-to-medium power/signal applications where weight and/or magnetic signature are considerations. Features Used where physical abuse would be too great for the non-metallic (glass reinforced epoxy) series. Specifications Material: 316 stainless steel Internal insulation (special neoprene) Contacts: Copper alloy, hard gold-plated per ASTM-B-448 Pressure Rating, Mated: up to 20,000 psi Thread Size: 3/4-16 UNF Thread Length: .87 in. Hook-Up Wire Length: 12 in. (30 cm) Base Length: 1.18 in. O-Ring: 2-213 Hex Size: 1-3/8 in. Mates with: RMG-2-FS & RMG-2-FS-R/A & RMG-2-FS WOC Dummy Connector Mate: RMG-2-FSD

Information

The RMG-2-BCL Rubber Molded 2 Pin Male Bulkhead Connector is made from special insulating neoprene and is permanently molded to the metal shell. The RMG-BCL series has a locking sleeve provision and utilizes a facial O-ring seal to the bulkhead.
