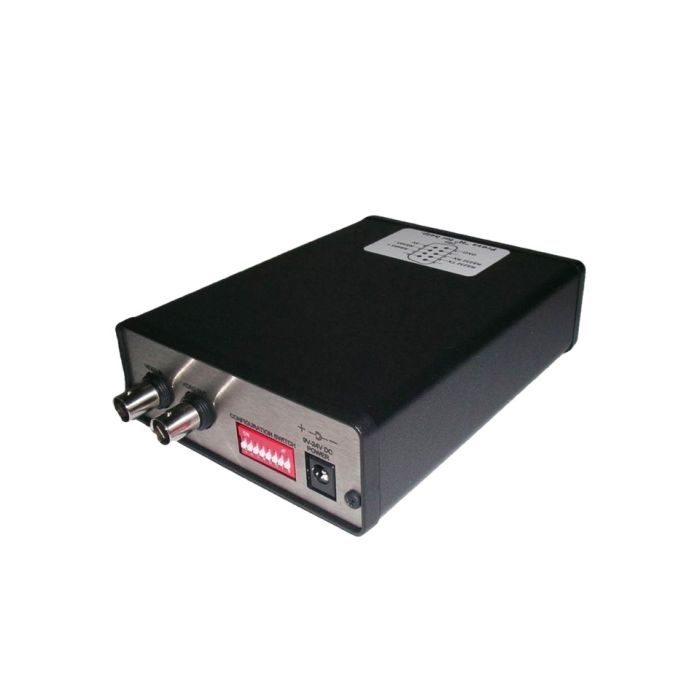

Outland Technology Stand Alone RS-232/Video Overlay Unit

Features:

• USB Type A Keyboard Connector
• Power: "LED" On/Off Power Indicator
• +12DC Power Adapter
• Video In: BNC jack will accept a standard RS170 video signal 1.2VPP.
  • Color or Black & White
• Video Out:
  • BNC jack is to connect to a standard video monitor.
• Dip Switches

Specifications:

• Size: 1.5 in. H x 4 in. W x 5.5 in. L
• Power: 12-16 VDC @ 100 ma.
  • 115 vac wall mount PS (supplied)
• Video Interface: 1-1.5 VPP in/out (PAL or NTSC)
• Keyboard: USB Type A (supplied)
• Display:
  • Time / Date
  • 3 pages of text (each page 16 lines x 34 columns)
• Interface Connector: DB9 connector on front panel for RS232 or RS485 communications
