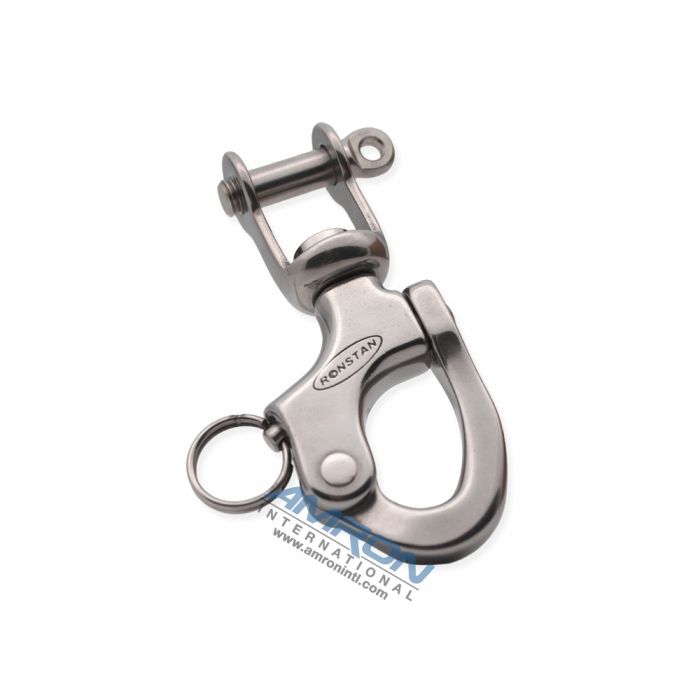

Ronstan Stainless Steel Snap Shackle - Fork Swivel Bail with Lock Pin - MWL 2425 lb.

Features:

• Heavy duty plunger springs and precision components ensure dependable service.
• Split ring on plunger pin is spot welded for security
• Body and hasp profiles are designed for easy clearance of lines and fittings when released.
• High strength to weight ratio.
• A lanyard can be attached to the plunger pin for easy opening.

Specifications:

• Maximum Working Load: 2425 lb.
• Breaking Load : 4850 lb.
• Maximum Inside Diameter: 5/8 in. (16mm)
• Pin Width: 5/16 in. (7.9mm)
• Maximum Line Inside Length (Eye to Eye): 11/16 in. (17.5mm)
• Outside Length: 3 3/4 in. (95mm)
• Weight: 4.2 oz.
• Material: Stainless Steel
  • Body & Hasp: 15-5 PH Investment Cast
  • Plunger Pin & Spring: Grade 316
