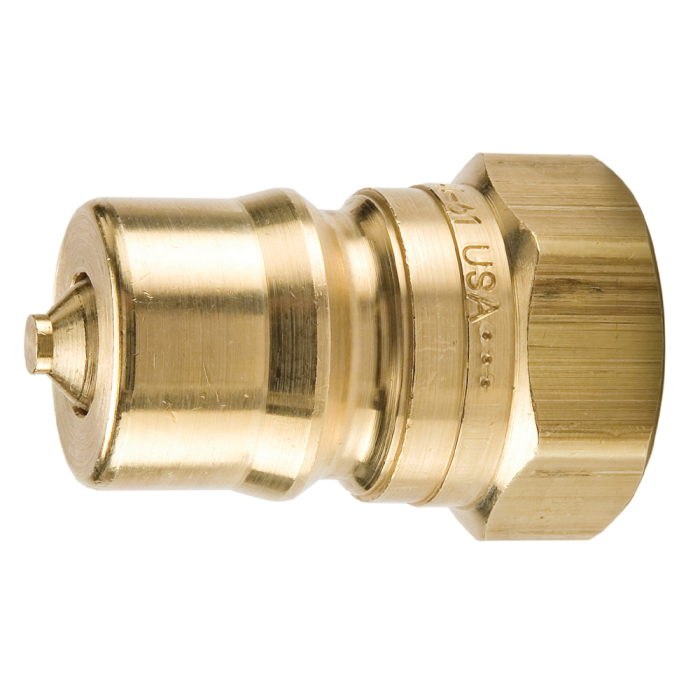

Parker 60 Series Brass Nipple, 1/2 In. NPTF, 12 GPM

SKU
BH4-61
$31.72
Eligible for Free Shipping Over $125
60 SERIES BRASS NIPPLE 1/2IN NPTF; 12GPM

Restrictions / Notifications

  • Non-Returnable/Non-Cancelable
    This item cannot be canceled or returned once an order has been placed.
  • CA PROP65
    Warning: Cancer and Reproductive Harm www.p65warnings.ca.gov
More Information
Features
  • Globally interchangeable with other manufacturer's couplings complying to ISO 7241 series B.
  • Multi-purpose coupling, widely used in varied applications.
  • Metal valve stop prevents flow checking to provide steady performance.
  • Brass couplers have double O-rings for redundant sealing and stainless steel locking balls for corrosion resistance.



Specifications
  • Coupling Half: Male nipple
  • Maximum Operating Temperature: 250 °F (121 °C)
  • Minimum Operating Temperature: -40 °F (-40 °C)
  • Maximum Operating Pressure: 3500 psi
  • Product Type: Manual connect
  • Valve Type: Poppet
  • Body Material: Brass
  • Seal Material: Nitrile
  • Flow Rate: 12 gal/min (45 L/min)
  • Hex Size: 1/2 - 14 in.
  • Connection Type: 1/2 in. Female NPTF
  • Vacuum Pressure Rating: 27.4 inch-Hg, -0.9 bar

60 Series Couplers (hydraulic, fluids, gas, steam) up to 5000 psi, connect with ISO 7241 series B, 60 Series Nipples. Parker's 60 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series B.



These general purpose quick couplings are available in a wide range of sizes and materials to be versatile for use with several fluids, including high temperature steam. Parker's 60 Series is multi-purpose for a variety of applications and pressures up to 5000 psi.



Steam version couplers are brass with double interface O-rings and stainless steel locking balls. Seal material is ethylene propylene and the 3/8 in. size has a grip-ring sleeve for easy operation when wearing gloves.
